Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78546 |

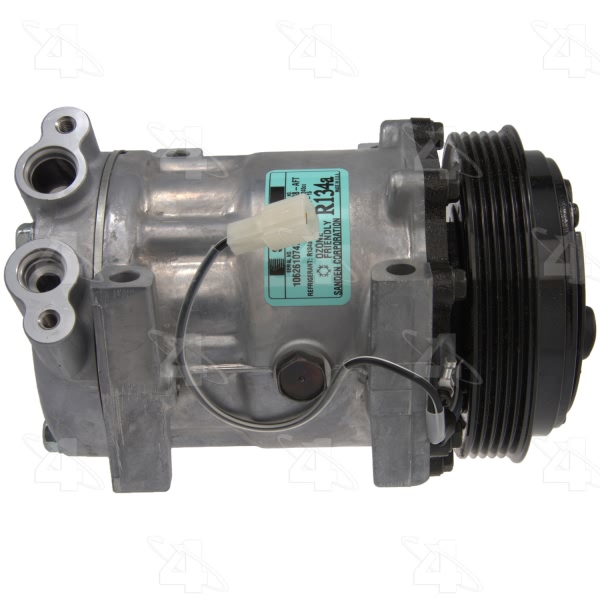

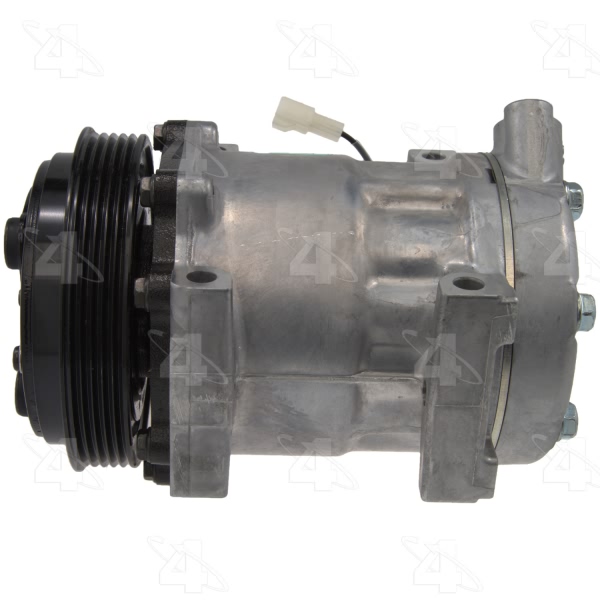

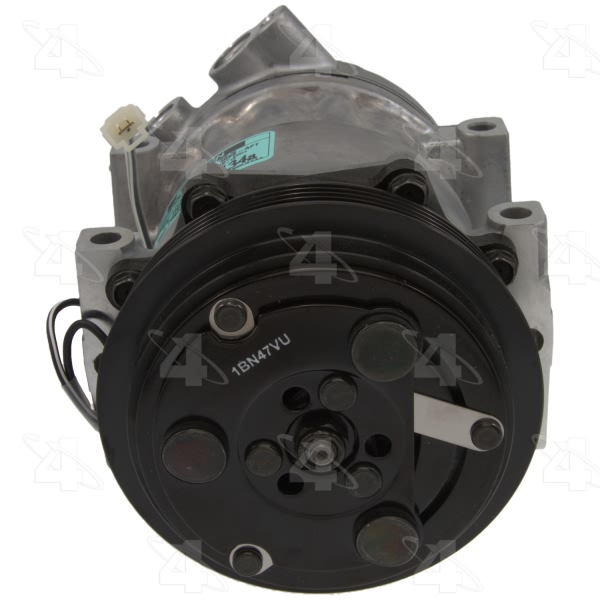

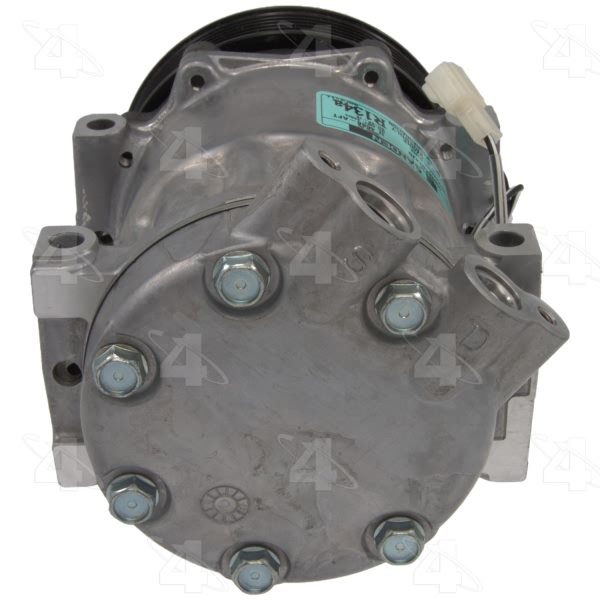

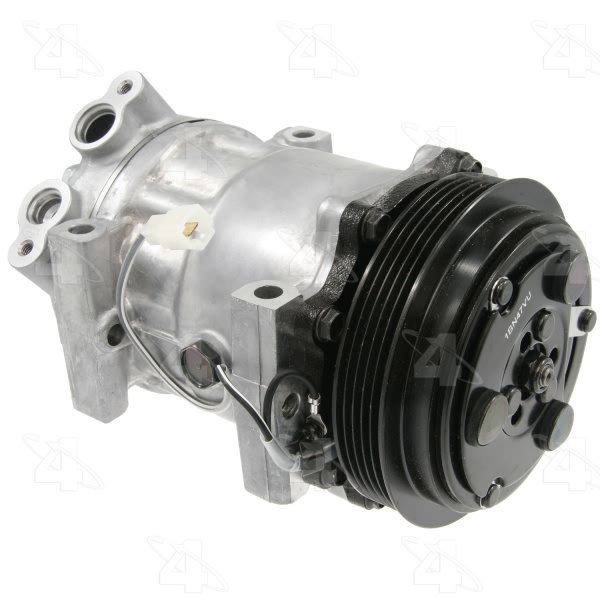

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.6875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Type | SD709 |

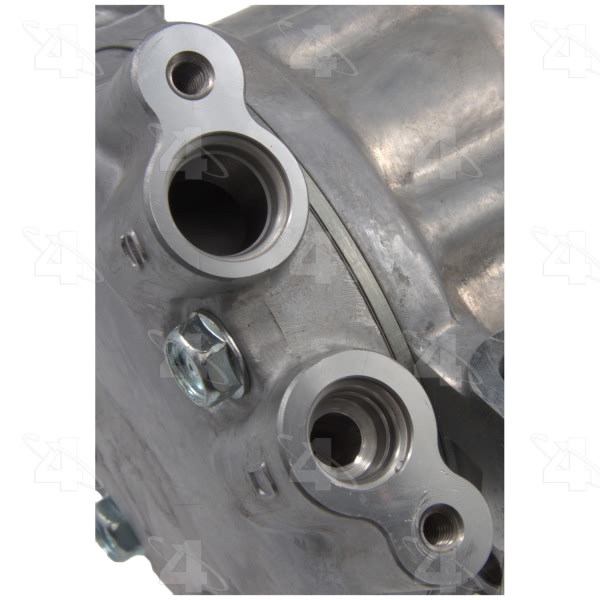

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.703125 |
Mount Distance MM | 17.780 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 119.050 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 4.6875 |
Pulley Outside Diameter | 4.6875 |
Pulley Ridge Diameter | 4.6875 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

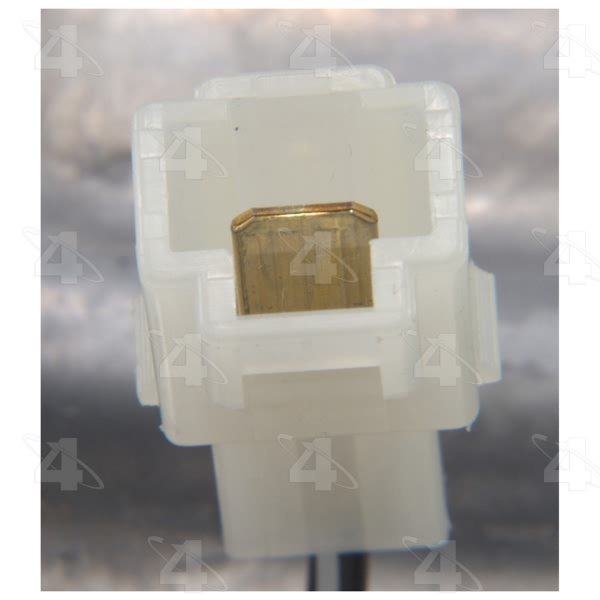

Terminal Type | Spade |
UPC | 096361785465 |
Year Make Model | Trim | Engine |
---|---|---|
1998-2002 Mazda 626 | All Trims | 6 Cyl 2.5L |
