Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78545 |

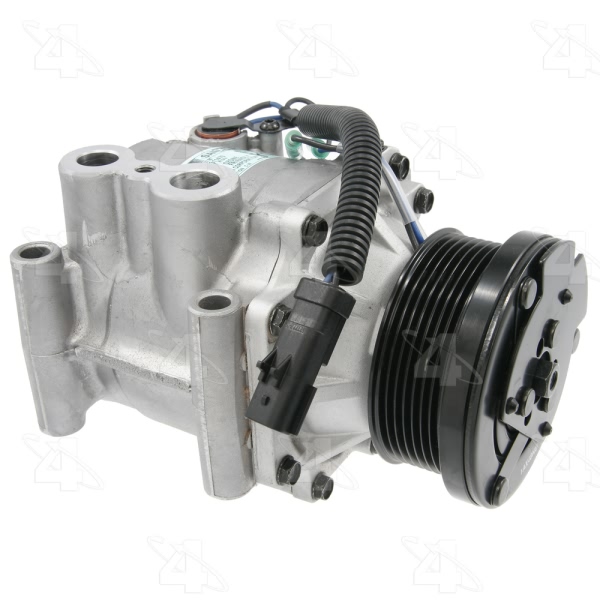

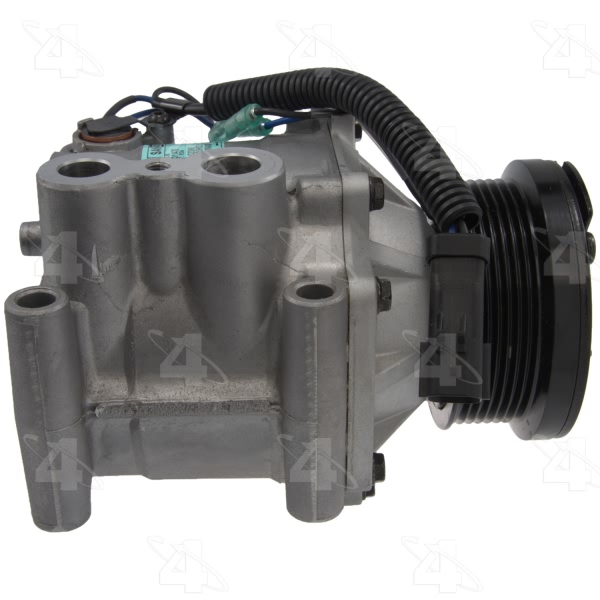

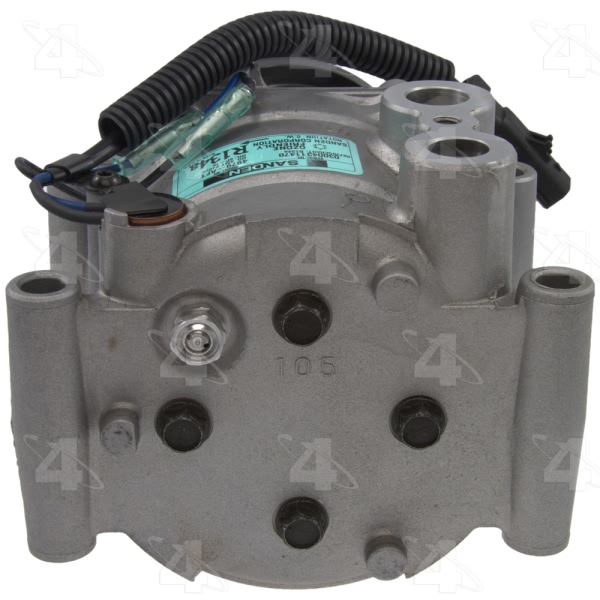

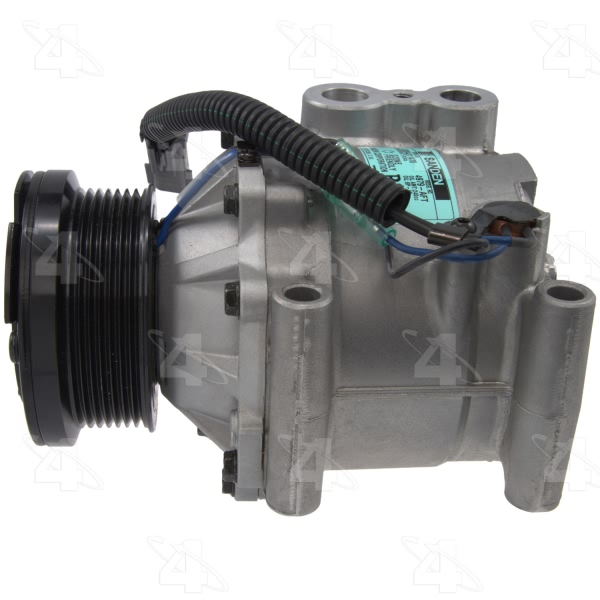

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 3.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | TRF105 |
Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.90625 |
Mount Distance MM | 48.000 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24355] / Sealing Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24354] / Sealing Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 95.250 |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 3.750 |
Pulley Outside Diameter | 3.750 |
Pulley Ridge Diameter | 3.750 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Switch Included | Heat Sensor |

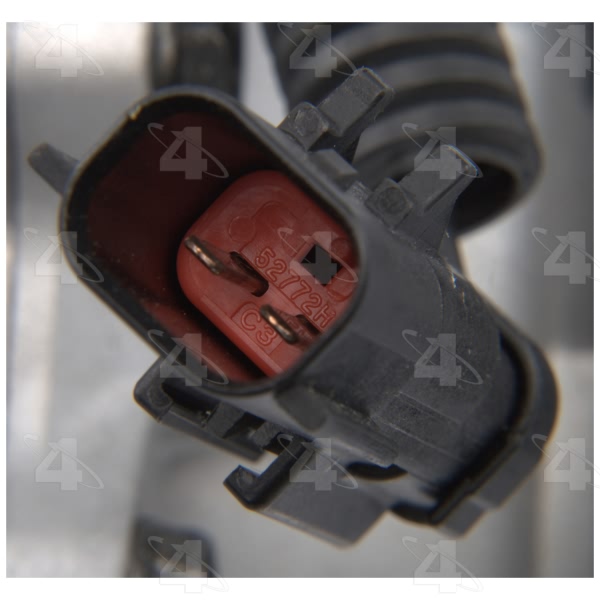

Terminal Type | Pin |
UPC | 096361785458 |
Year Make Model | Trim | Engine |
---|---|---|
1998 Dodge B1500 | All Trims | All Engines |
1998 Dodge B2500 | All Trims | All Engines |
1998 Dodge B3500 | All Trims | All Engines |
1998-2003 Dodge Ram 1500 Van | All Trims | All Engines |
1998-2003 Dodge Ram 2500 Van | All Trims | All Engines |
1998-2003 Dodge Ram 3500 Van | All Trims | All Engines |
