Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78493 |

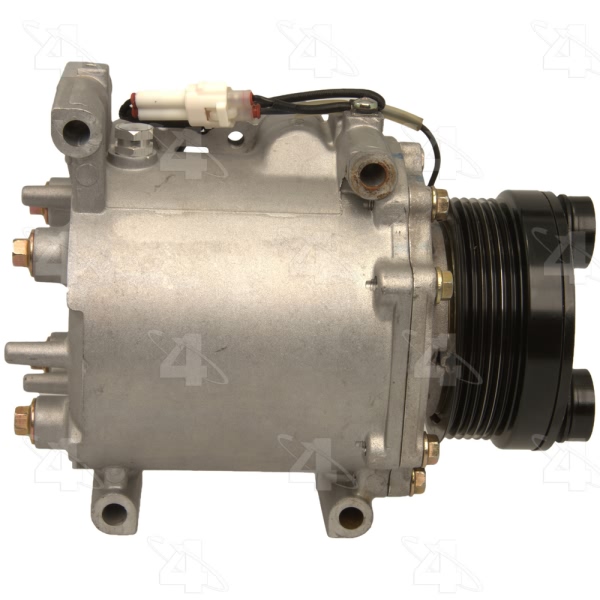

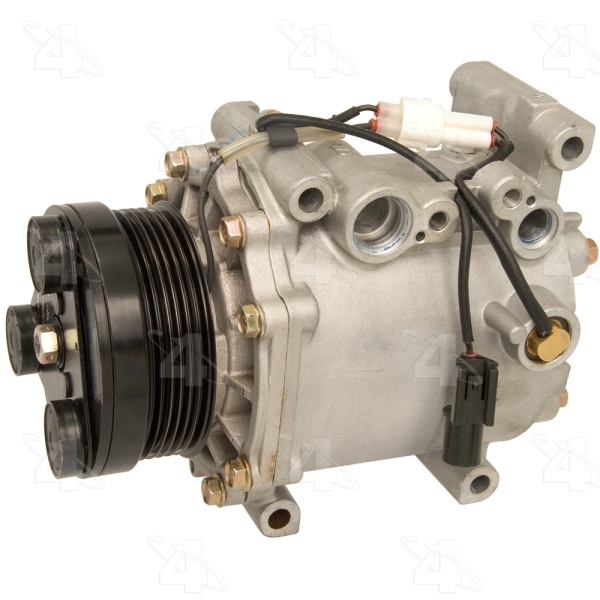

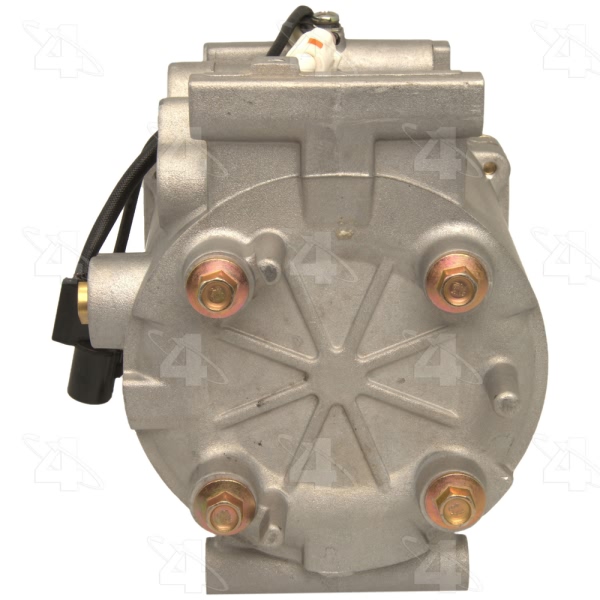

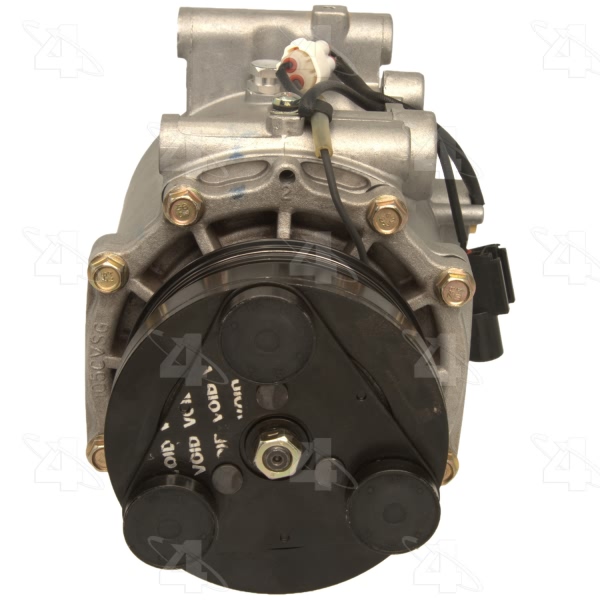

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 3.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | MSC105C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.09375 |
Mount Distance MM | 27.940 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24131] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24679] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 95.250 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 3.750 |
Pulley Outside Diameter | 3.750 |
Pulley Ridge Diameter | 3.750 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Heat Sensor |
Terminal Type | Pin |
UPC | 096361784932 |
Year Make Model | Trim | Engine |
---|---|---|
2006-2010 Mitsubishi Eclipse | All Trims | 6 Cyl 3.8L |
2012 Mitsubishi Eclipse | All Trims | All Engines |
2004-2008 Mitsubishi Endeavor | All Trims | All Engines |
2010 Mitsubishi Endeavor | All Trims | All Engines |
2004-2009 Mitsubishi Galant | All Trims | 6 Cyl 3.8L |
