Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78491 |

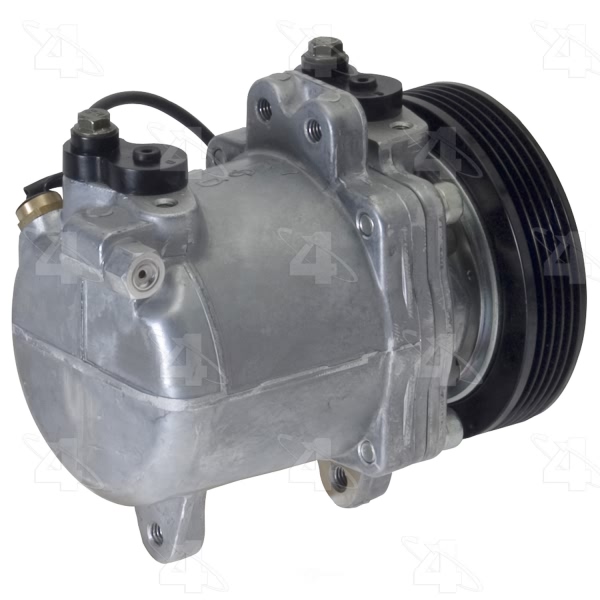

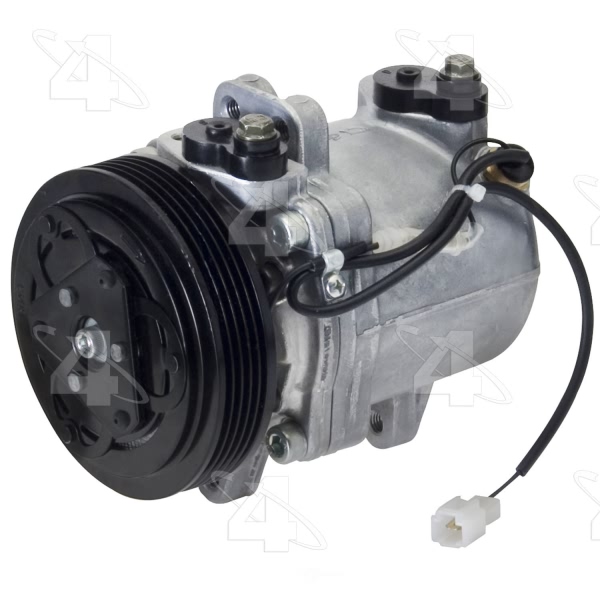

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.500 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | SS10L |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.59375 |
Mount Distance MM | 40.640 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24659] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24642] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 114.300 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 4.500 |
Pulley Outside Diameter | 4.500 |
Pulley Ridge Diameter | 4.500 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Heat Sensor |
Terminal Type | Spade |
UPC | 096361784918 |
Year Make Model | Trim | Engine |
---|---|---|
1999-2000 Suzuki Esteem | All Trims | 4 Cyl 1.8L |
2001-2002 Suzuki Esteem | All Trims | All Engines |
1996-1998 Suzuki Sidekick | All Trims | 4 Cyl 1.8L |
1999-2002 Suzuki Vitara | All Trims | 4 Cyl 2.0L |
2003 Suzuki Vitara | All Trims | All Engines |
