Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78485 |

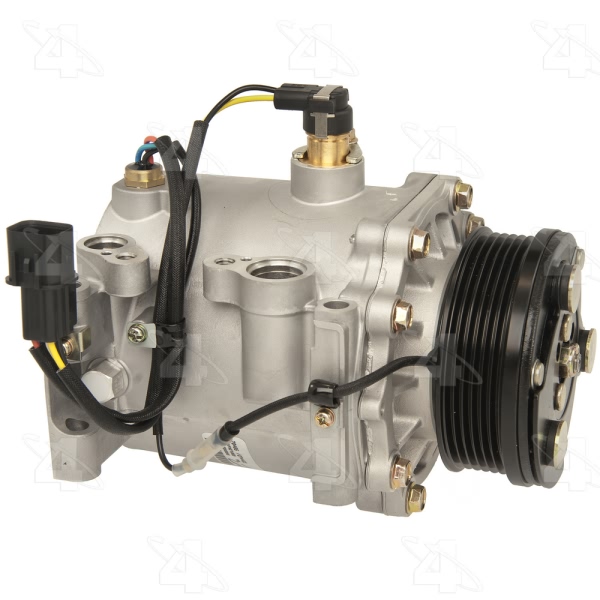

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 3.6875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | MSC90C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.203125 |
Mount Distance MM | 30.480 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24131] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24679] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 93.650 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 3.6875 |
Pulley Outside Diameter | 3.6875 |
Pulley Ridge Diameter | 3.6875 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Switch |
Terminal Type | Pin |
UPC | 096361784857 |
Year Make Model | Trim | Engine |
---|---|---|
2001-2005 Chrysler Sebring | All Trims | 6 Cyl 3.0L |
2001-2005 Dodge Stratus | All Trims | 6 Cyl 3.0L |
2000-2004 Mitsubishi Diamante | All Trims | All Engines |
2000-2005 Mitsubishi Eclipse | All Trims | 6 Cyl 3.0L |
2000-2003 Mitsubishi Galant | All Trims | 6 Cyl 3.0L |
