Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78396 |

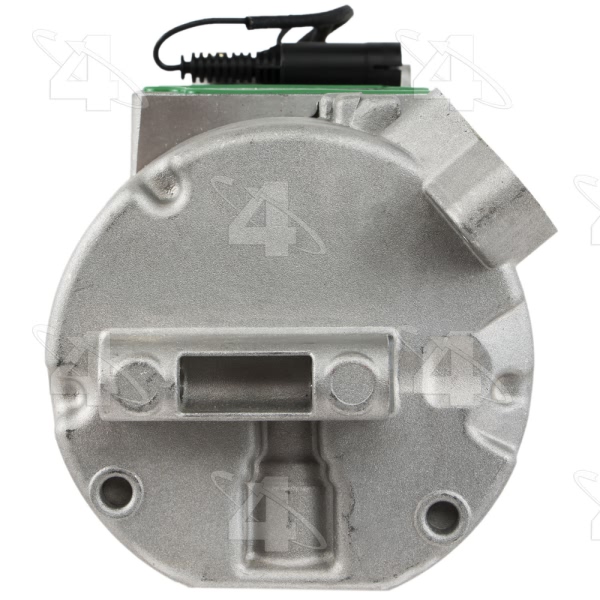

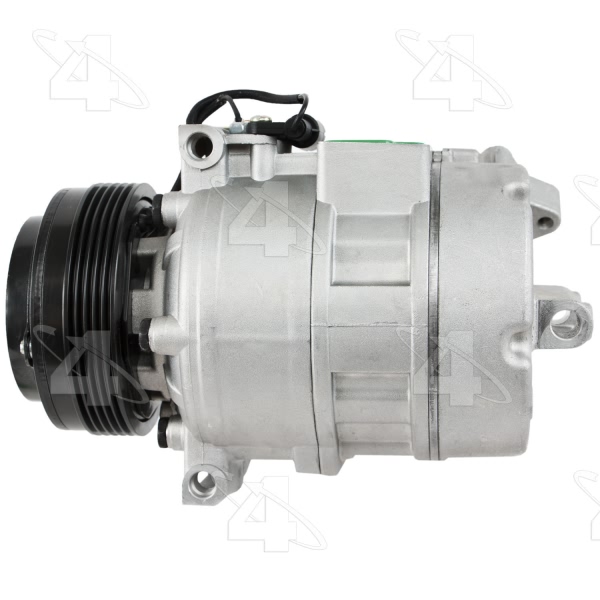

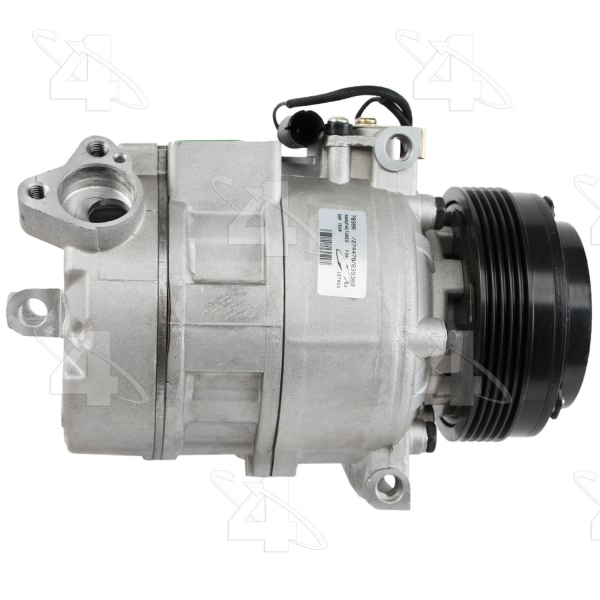

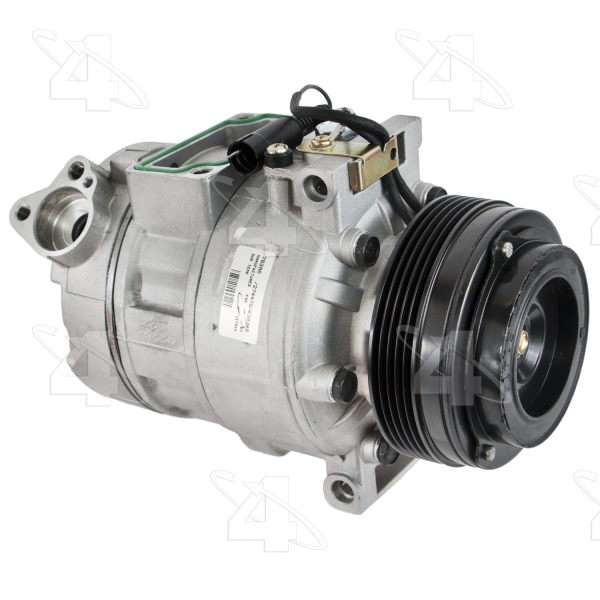

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SB16C |

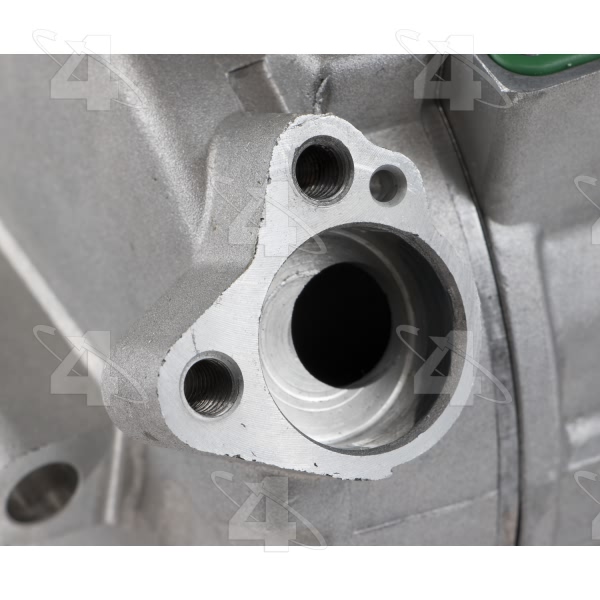

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.90625 |
Mount Distance MM | 22.860 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24659] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |

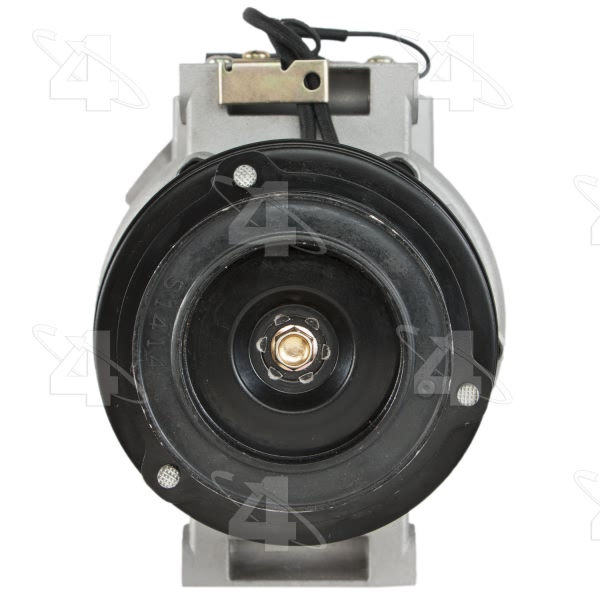

Pulley Belt Type | Serpentine |
Pulley Diameter MM | 133.350 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 5.250 |
Pulley Outside Diameter | 5.250 |
Pulley Ridge Diameter | 5.250 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

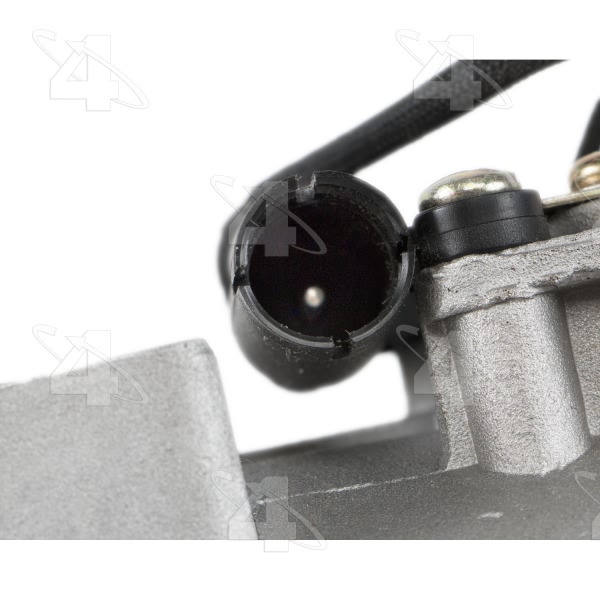

Terminal Type | Pin |
UPC | 096361783966 |
Year Make Model | Trim | Engine |
---|---|---|
2000 BMW 323Ci | All Trims | All Engines |
1999-2000 BMW 323i | All Trims | All Engines |
1999 BMW 323is | All Trims | All Engines |
1999-2000 BMW 323ti | All Trims | All Engines |
2001-2006 BMW 325Ci | All Trims | All Engines |
2001-2006 BMW 325i | All Trims | All Engines |
2001-2005 BMW 325xi | All Trims | All Engines |
2000 BMW 328Ci | All Trims | All Engines |
1999-2000 BMW 328i | All Trims | All Engines |
1999 BMW 328is | All Trims | All Engines |
