Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78392 |

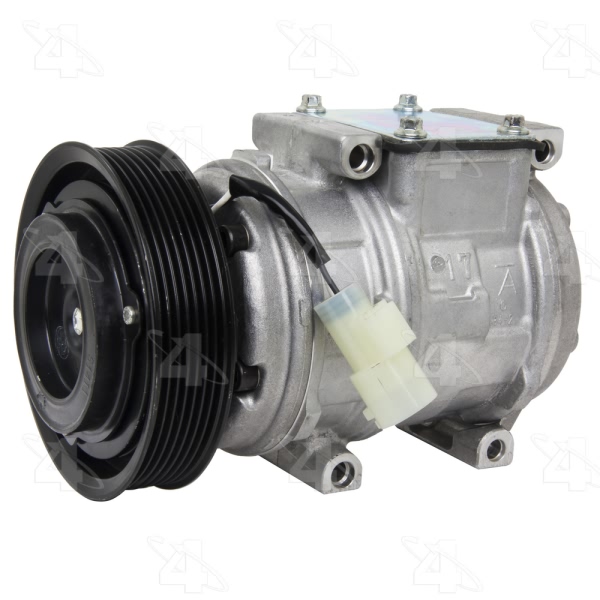

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.0625 |

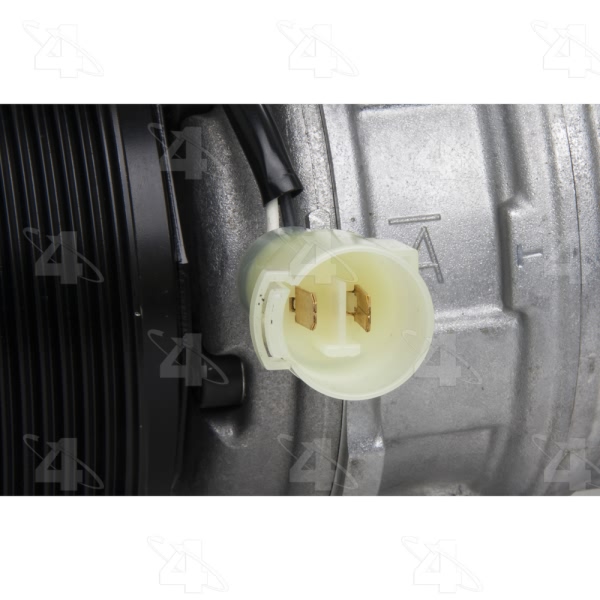

Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10PA17C |
Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 2.500 |
Mount Distance MM | 63.500 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24156] / Compressor Manifold Port Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 128.575 |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 5.0625 |
Pulley Outside Diameter | 5.0625 |
Pulley Ridge Diameter | 5.0625 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |
Terminal Type | Pin |
UPC | 096361783928 |
Year Make Model | Trim | Engine |
---|---|---|
1994-1995 Land Rover Defender 90 | All Trims | All Engines |
1997 Land Rover Defender 90 | All Trims | All Engines |
1994-1998 Land Rover Discovery | All Trims | All Engines |
1995 Land Rover Range Rover | All Trims | 8 Cyl 3.9L |
1995 Land Rover Range Rover | All Trims | 8 Cyl 4.2L |
