Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78385 |

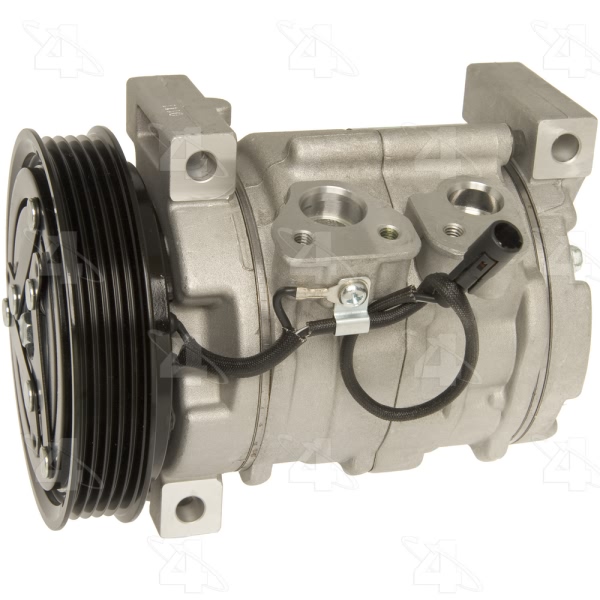

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.500 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10S11C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.640625 |
Mount Distance MM | 16.256 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold; DeSlugger [36140] Recommended to Eliminate Compressor Damage on Vehicles with Low Mount Compressor |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 114.300 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 4.500 |
Pulley Outside Diameter | 4.500 |
Pulley Ridge Diameter | 4.500 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361783850 |
Year Make Model | Trim | Engine |
---|---|---|
1999-2003 Chevrolet Tracker | All Trims | 4 Cyl 2.0L |
1999-2001 Suzuki Vitara | All Trims | 4 Cyl 1.6L |
1999-2002 Suzuki Vitara | All Trims | 4 Cyl 2.0L |
2003 Suzuki Vitara | All Trims | All Engines |
