Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78379 |

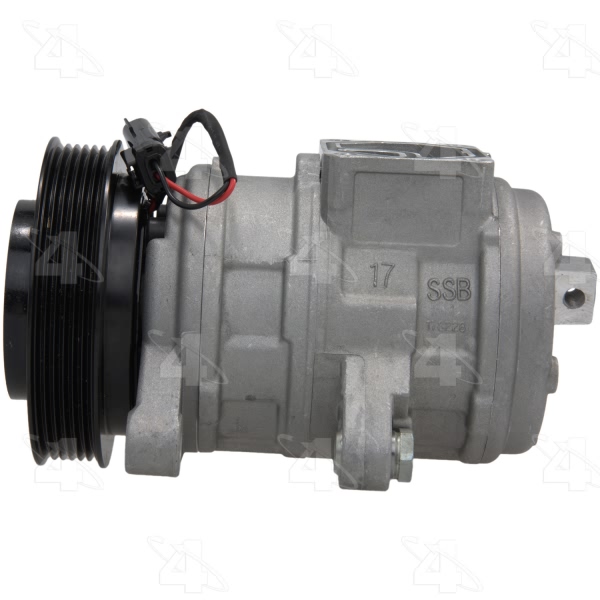

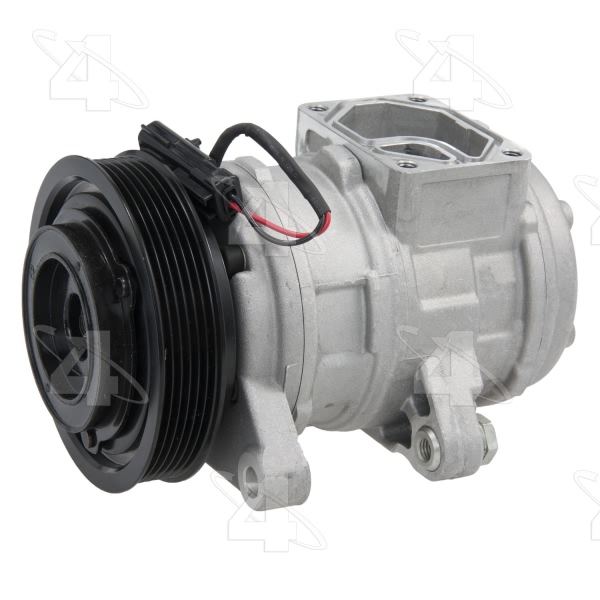

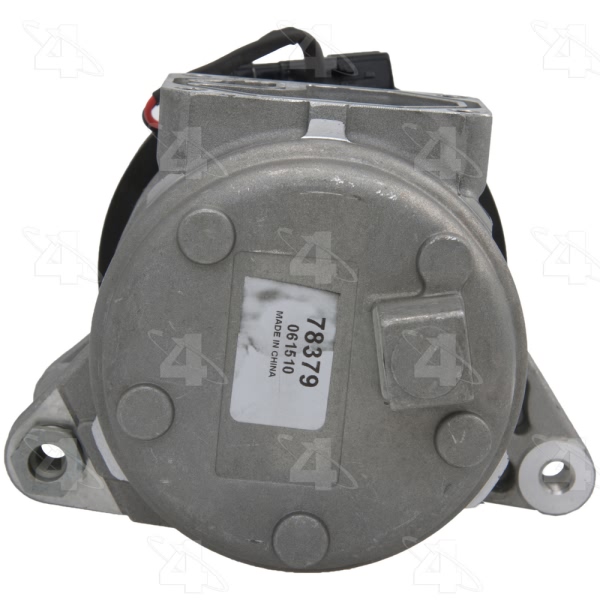

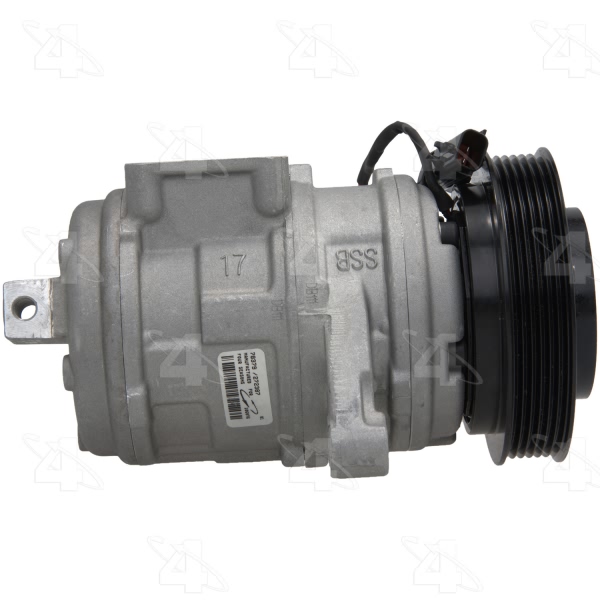

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10PA17E |

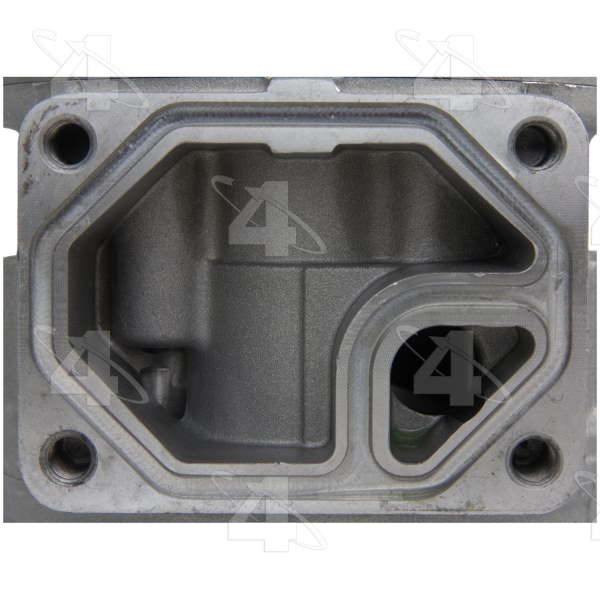

Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 0.640625 |
Mount Distance MM | 16.383 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24156] / Compressor Manifold Port Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |

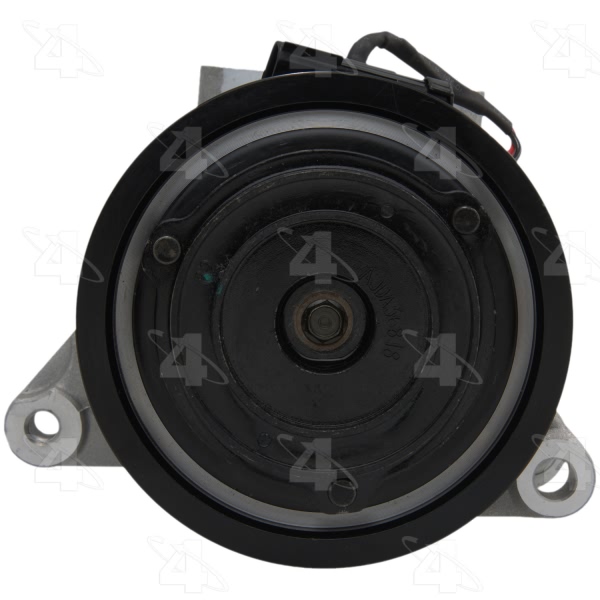

Pulley Belt Type | Serpentine |
Pulley Diameter MM | 130.175 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.125 |
Pulley Outside Diameter | 5.125 |
Pulley Ridge Diameter | 5.125 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |

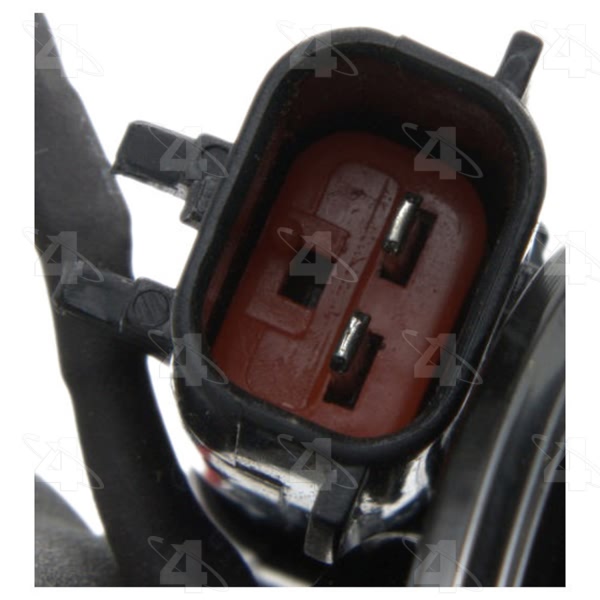

Terminal Type | Pin |
UPC | 096361783799 |
Year Make Model | Trim | Engine |
---|---|---|
1999-2004 Jeep Grand Cherokee | All Trims | 6 Cyl 4.0L |
2000-2003 Jeep TJ | All Trims | 6 Cyl 4.0L |
2004 Jeep TJ | All Trims | All Engines |
2005-2006 Jeep TJ | All Trims | 6 Cyl 4.0L |
2000-2006 Jeep Wrangler | All Trims | 6 Cyl 4.0L |
