Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78377 |

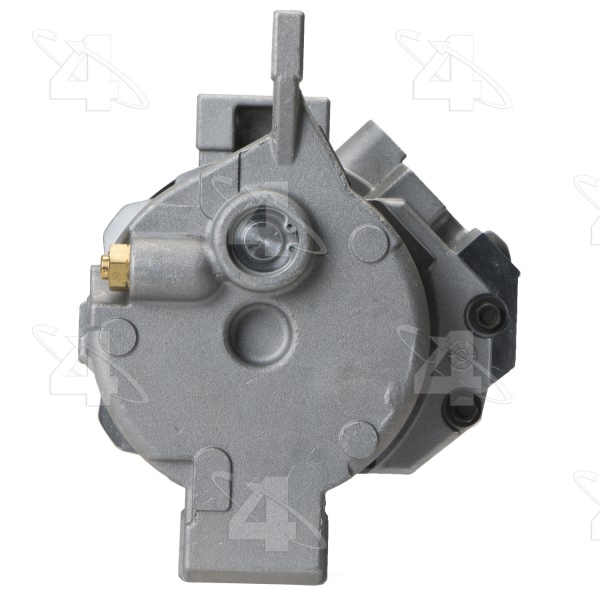

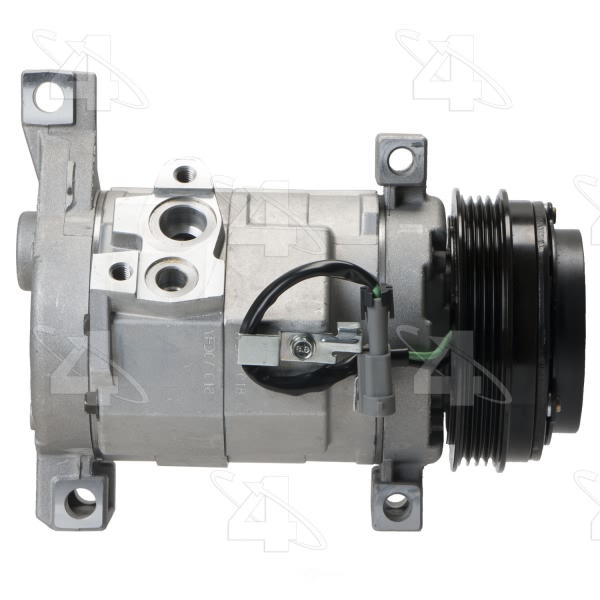

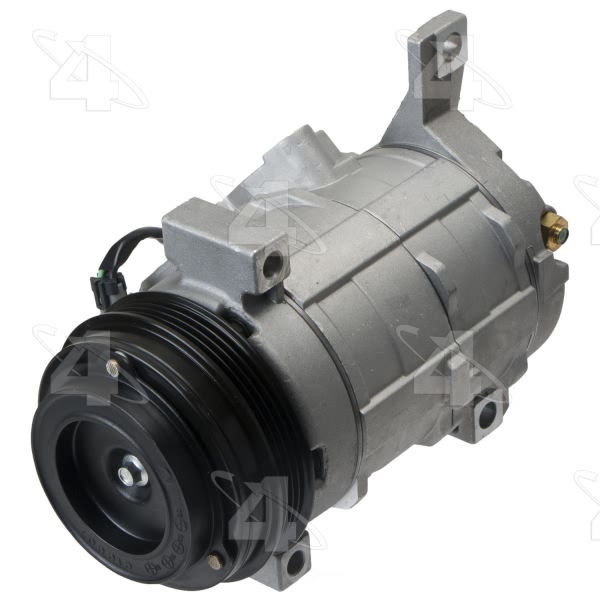

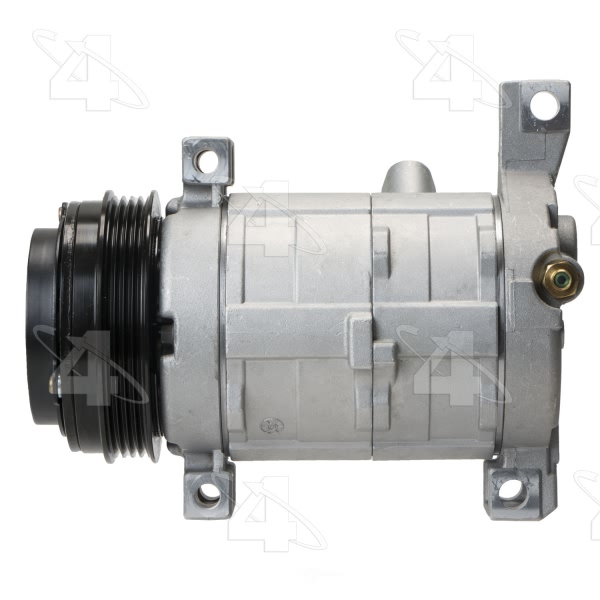

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10S20F |

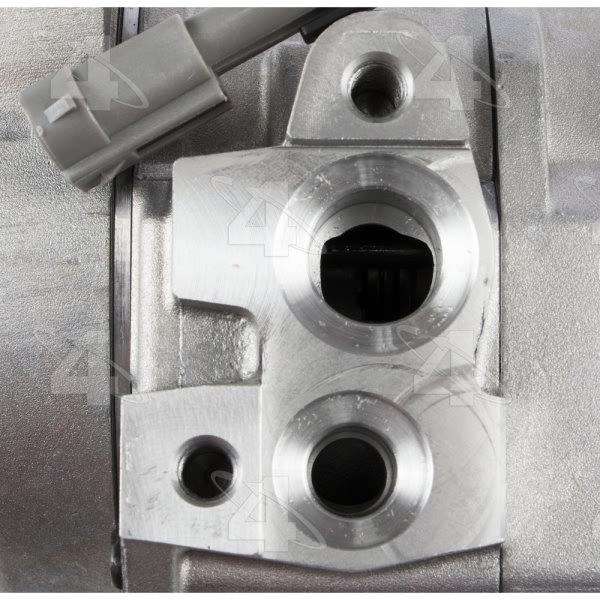

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 0.65625 |
Mount Distance MM | 16.510 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold; DeSlugger [36141] Recommended to Eliminate Compressor Damage on Vehicles with Low Mount Compressor |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 107.950 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |

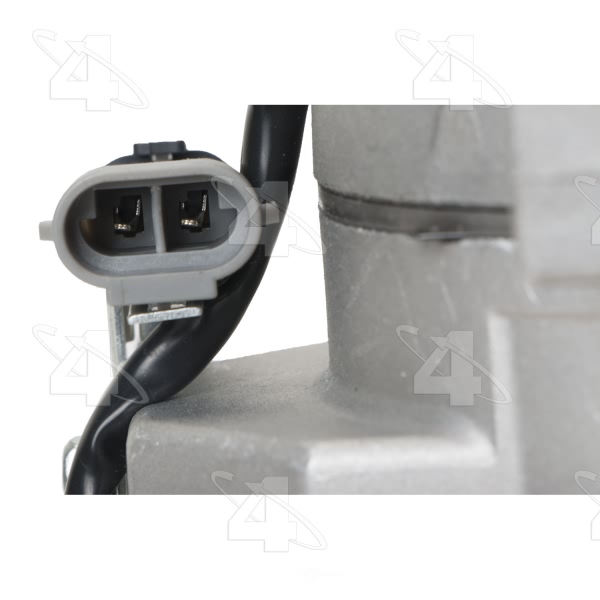

Terminal Type | Pin |
UPC | 096361783775 |
Year Make Model | Trim | Engine |
---|---|---|
2002-2008 Cadillac Escalade | All Trims | All Engines |
2009-2013 Cadillac Escalade | All Trims | 8 Cyl 6.2L |
2014 Cadillac Escalade | All Trims | All Engines |
2003-2008 Cadillac Escalade ESV | All Trims | All Engines |
2009-2012 Cadillac Escalade ESV | All Trims | 8 Cyl 6.2L |
2013-2014 Cadillac Escalade ESV | All Trims | All Engines |
2002-2008 Cadillac Escalade EXT | All Trims | All Engines |
2009-2012 Cadillac Escalade EXT | All Trims | 8 Cyl 6.2L |
2013 Cadillac Escalade EXT | All Trims | All Engines |
2007-2013 Chevrolet Avalanche | All Trims | All Engines |
