Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78345 |

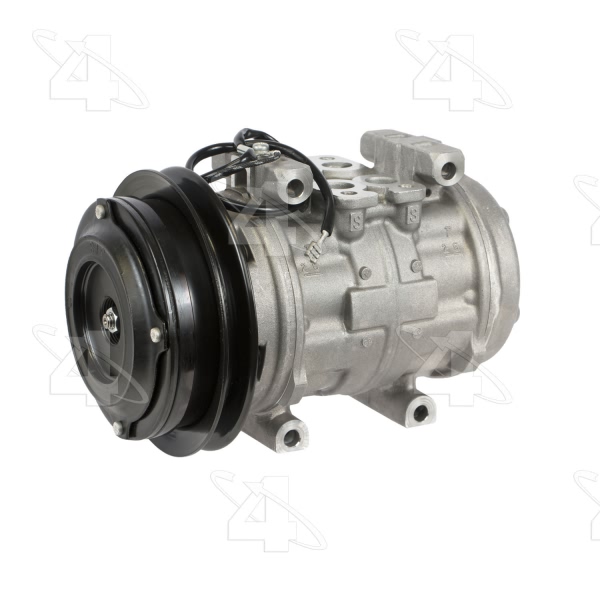

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.500 |
Belt Width MM | 12.700 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.59375 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10P15C |
Distance From Clutch To Mounting Flange | 1.46875 |
Mount Distance MM | 37.084 |
Mounting Hardware | Not Included |
Mounting Type | Direct Mount |
New or Reman | New |
O-Ring A Number/Desc | 24613 |
O-Ring A Quantity | 4 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 142.240 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.59375 |
Pulley Outside Diameter | 5.59375 |
Pulley Ridge Diameter | 5.59375 |
Refrigerant Type | R134a |
Terminal Type | Spade |
UPC | 096361783454 |
w/ Diode | No |
Year Make Model | Trim | Engine |
---|---|---|
1985-1988 Porsche 911 | All Trims | All Engines |
1989 Porsche 911 | All Trims | 6 Cyl 3.2L |
1989 Porsche 911 | All Trims | 6 Cyl 3.3L |
