Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78318 |

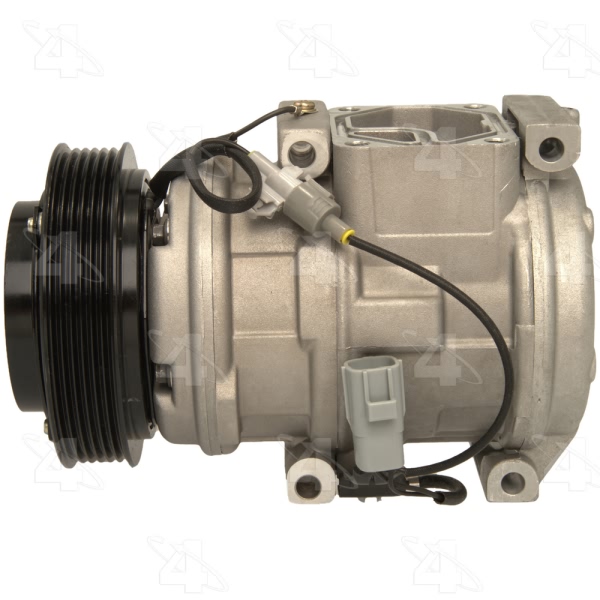

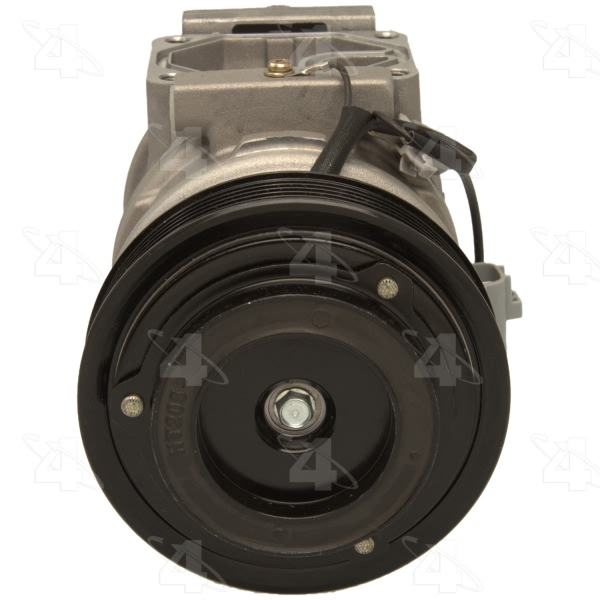

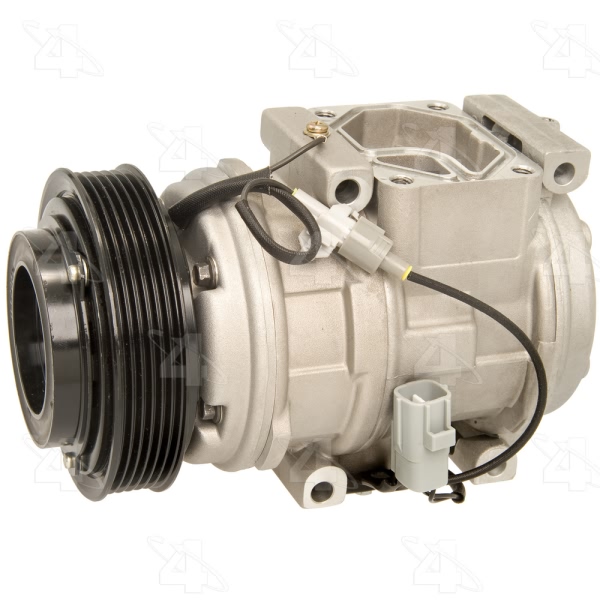

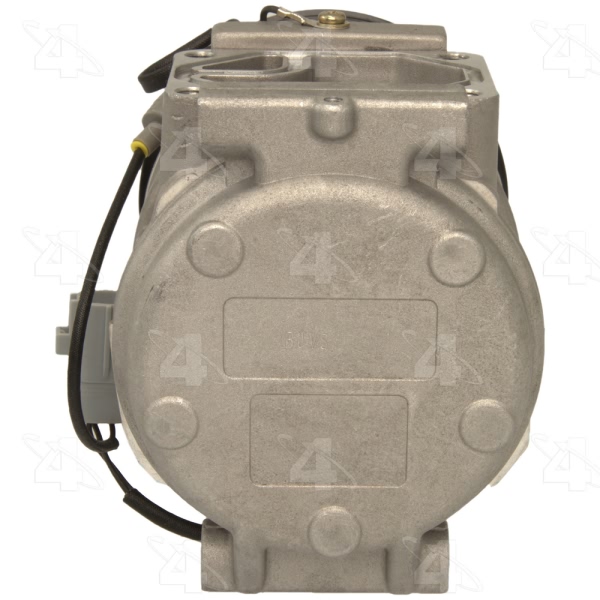

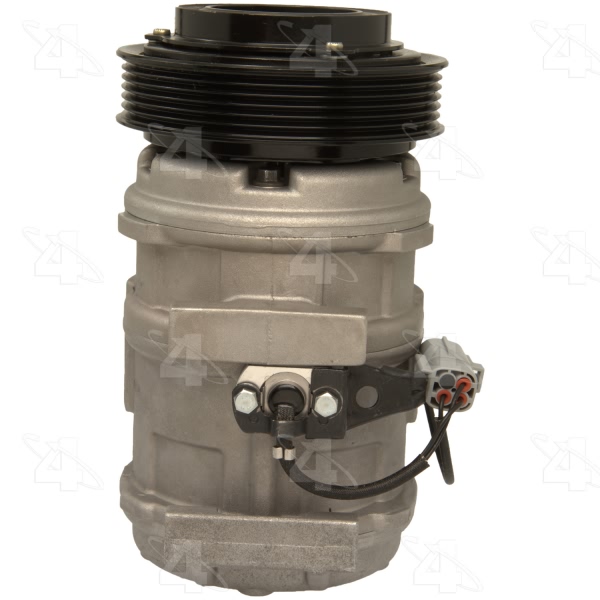

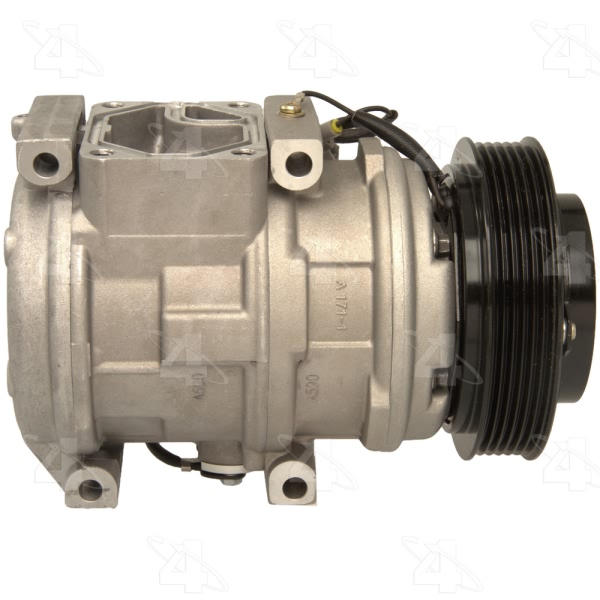

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.875 |
Belt Width MM | 22.225 |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10PA17C |
Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 2.250 |
Mount Distance MM | 57.150 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24156] / Compressor Manifold Port Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 120.650 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.750 |
Pulley Outside Diameter | 4.750 |
Pulley Ridge Diameter | 4.750 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |
Switch Included | Speed Sensor |

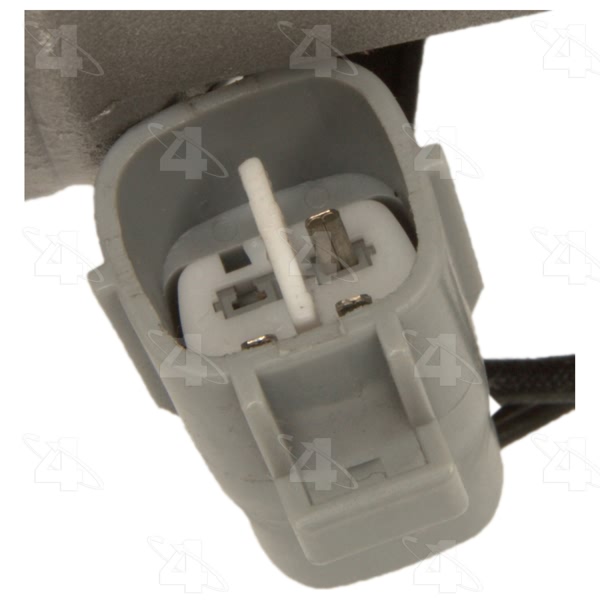

Terminal Type | Pin |
UPC | 096361783188 |
Year Make Model | Trim | Engine |
---|---|---|
1998-2003 Toyota Sienna | All Trims | All Engines |
