Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78316 |
Part Description | A C Compressor With Clutch |
Belt Width IN | 0.625 |
Belt Width MM | 15.875 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.250 |

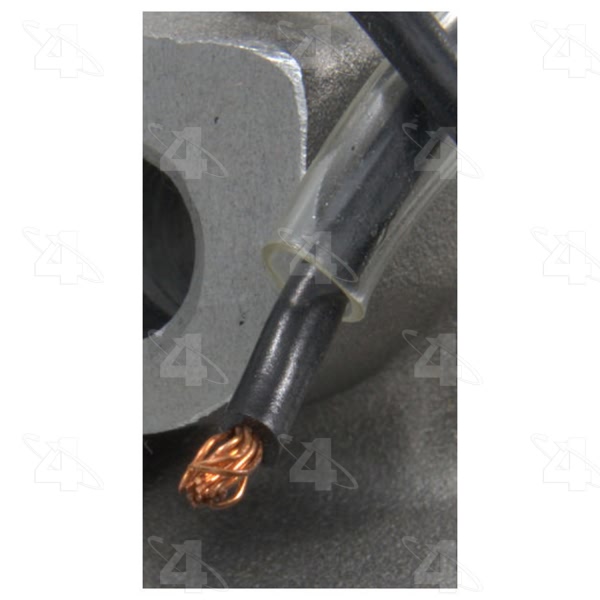

Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10PA17C |

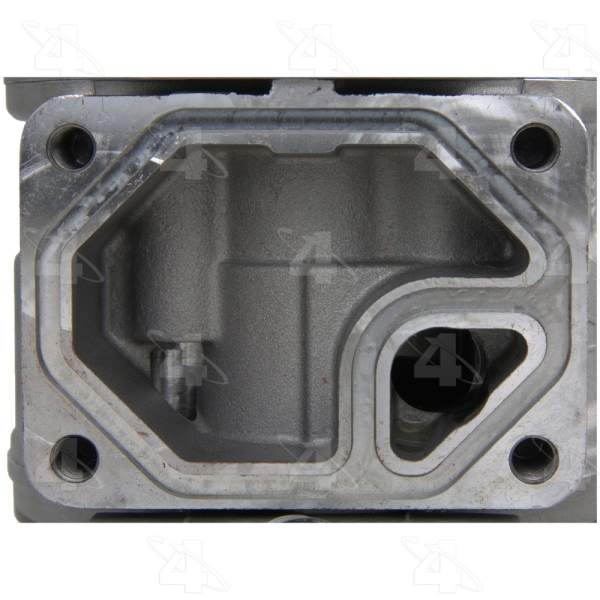

Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 2.09375 |
Mount Distance MM | 53.340 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24156] / Compressor Manifold Port Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 133.350 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 5.250 |
Pulley Outside Diameter | 5.250 |
Pulley Ridge Diameter | 5.250 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |
Terminal Type | Pin |
UPC | 096361783164 |
Year Make Model | Trim | Engine |
---|---|---|
1996-2000 Toyota 4Runner | All Trims | 6 Cyl 3.4L |
2001-2002 Toyota 4Runner | All Trims | All Engines |
