Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78313 |

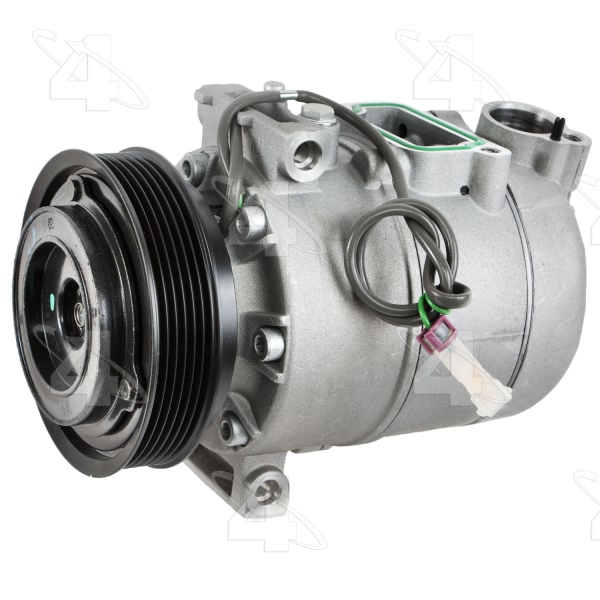

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SB16C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.546875 |
Mount Distance MM | 39.370 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24670] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 120.650 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.750 |
Pulley Outside Diameter | 4.750 |
Pulley Ridge Diameter | 4.750 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361783133 |
Year Make Model | Trim | Engine |
---|---|---|
1996 Audi A4 | All Trims | All Engines |
1997-2001 Audi A4 | All Trims | 6 Cyl 2.8L |
1999-2000 Audi A4 | All Trims | 4 Cyl 1.8L |
1996 Audi A4 Quattro | All Trims | All Engines |
1997-2001 Audi A4 Quattro | All Trims | 6 Cyl 2.8L |
1999-2000 Audi A4 Quattro | All Trims | 4 Cyl 1.8L |
1997-2005 Audi A6 | All Trims | All Engines |
1997-2001 Audi A6 Quattro | All Trims | All Engines |
2002-2004 Audi A6 Quattro | All Trims | 6 Cyl 2.7L |
2002-2005 Audi A6 Quattro | All Trims | 6 Cyl 3.0L |
