Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78312 |

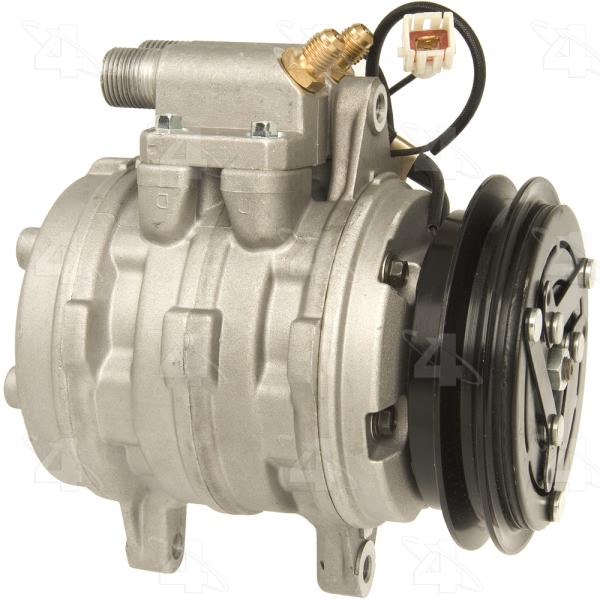

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.625 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10P08E |
Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 1.796875 |
Mount Distance MM | 45.720 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24613] / Green O-Ring |
O-Ring A Quantity | 4 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 117.348 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 4.625 |
Pulley Outside Diameter | 4.625 |
Pulley Ridge Diameter | 4.625 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |
Terminal Type | Spade |
UPC | 096361783126 |
Year Make Model | Trim | Engine |
---|---|---|
1985-1988 Chevrolet Sprint | All Trims | All Engines |
1989-1991 Chevrolet Tracker | All Trims | All Engines |
1989-1991 GMC Tracker | All Trims | All Engines |
1989-1994 Geo Tracker | All Trims | All Engines |
1986-1988 Suzuki Samurai | All Trims | All Engines |
1989 Suzuki Sidekick | All Trims | 4 Cyl 1.6L |
1990-1994 Suzuki Sidekick | All Trims | All Engines |
