Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68675 |

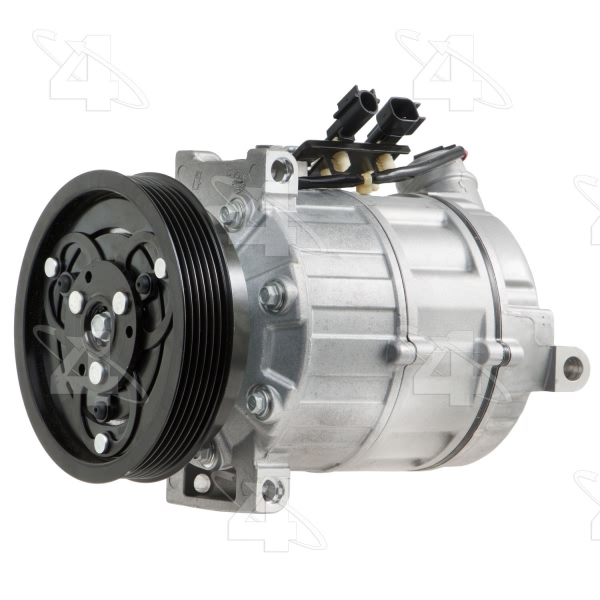

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | DCS17E |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.515625 |
ECV Harness Connector | SE25F, 26897 Female / / SE23M, 26883 Male |
Mount Distance MM | 38.608 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24632] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [214C70] / O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 130.175 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.125 |
Pulley Outside Diameter | 5.125 |
Pulley Ridge Diameter | 5.125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361686755 |
Year Make Model | Trim | Engine |
---|---|---|
2008-2012 Land Rover LR2 | All Trims | All Engines |
2011 Volvo S60 | All Trims | All Engines |
2012 Volvo S60 | All Trims | 5 Cyl 2.5L |
2012-2016 Volvo S60 | All Trims | 6 Cyl 3.0L |
2007-2010 Volvo S80 | All Trims | 6 Cyl 3.2L |
2008-2010 Volvo S80 | All Trims | 6 Cyl 3.0L |
2011-2014 Volvo S80 | All Trims | All Engines |
2015 Volvo S80 | All Trims | 6 Cyl 3.0L |
2015-2016 Volvo V60 | All Trims | 6 Cyl 3.0L |
2008-2010 Volvo V70 | All Trims | All Engines |
