Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68674 |

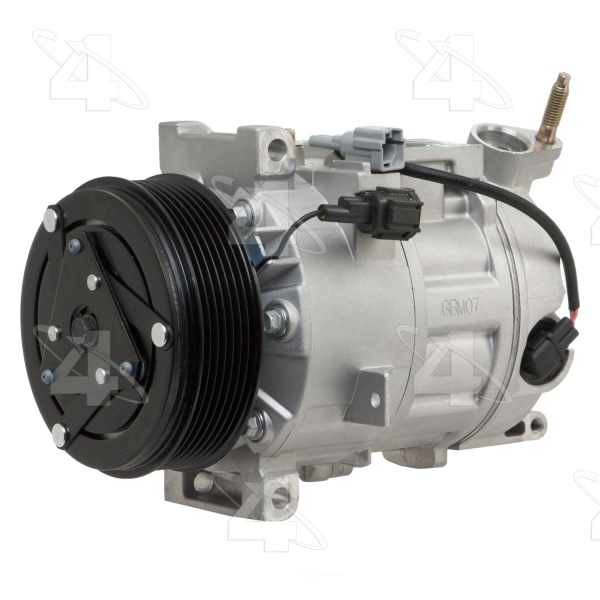

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.500 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | DCS17E |

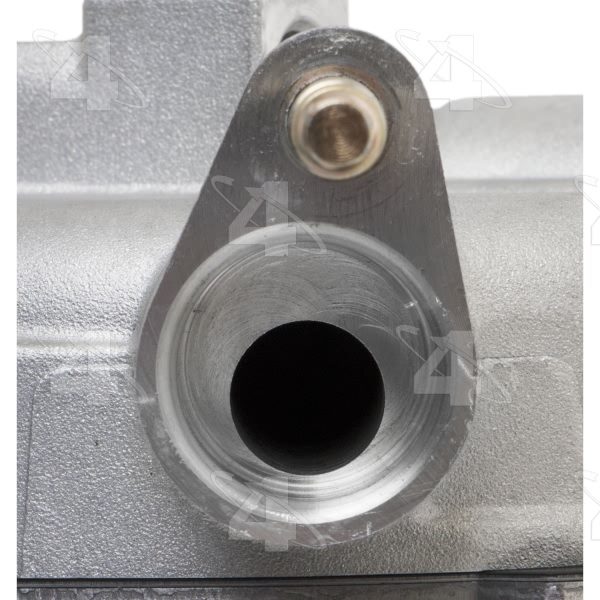

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.78125 |

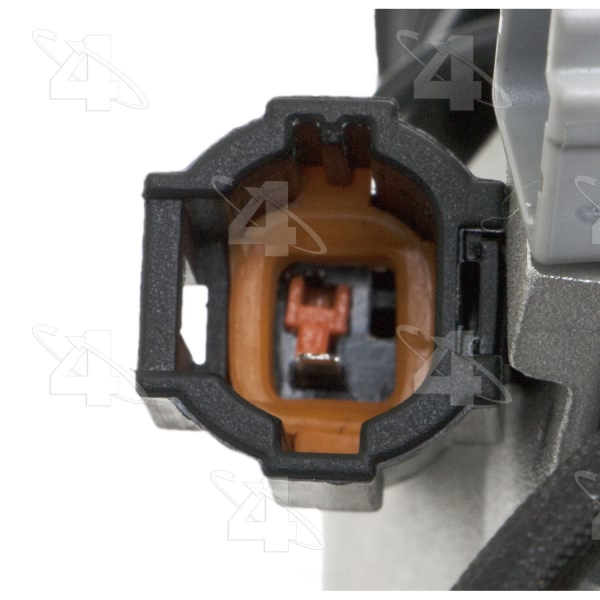

ECV Harness Connector | SE12F , 26896 Female / / SE12M, 26880 Male |
Mount Distance MM | 19.812 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |

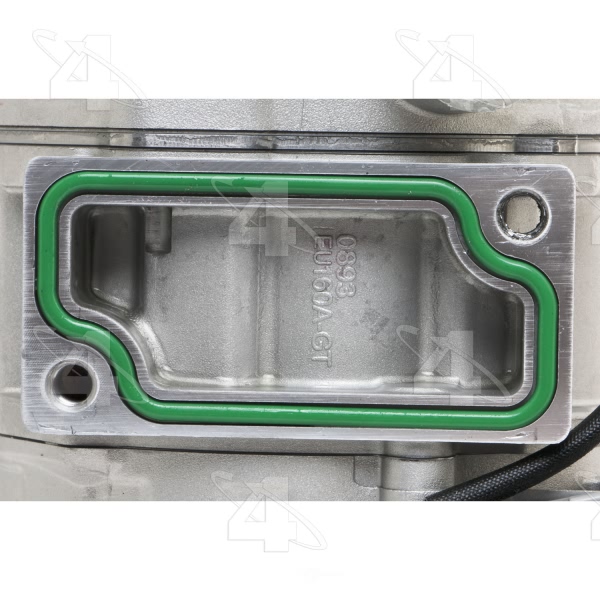

O-Ring A Number/Desc | [24602] / Green Round O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24659] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 114.300 |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 4.500 |
Pulley Outside Diameter | 4.500 |
Pulley Ridge Diameter | 4.500 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361686748 |
Year Make Model | Trim | Engine |
---|---|---|
2008 Infiniti EX35 | All Trims | All Engines |
2010 Infiniti EX35 | All Trims | All Engines |
2007-2008 Infiniti G35 | All Trims | 6 Cyl 3.5L |
2008 Infiniti G37 | All Trims | All Engines |
2009-2010 Infiniti M35 | All Trims | All Engines |
