Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68672 |

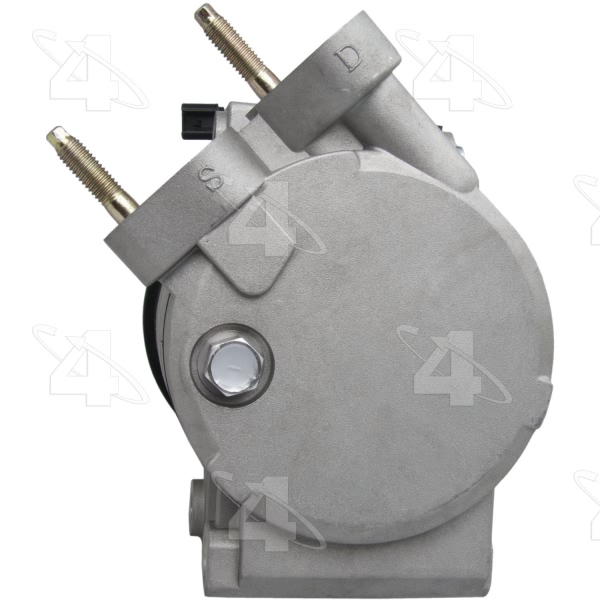

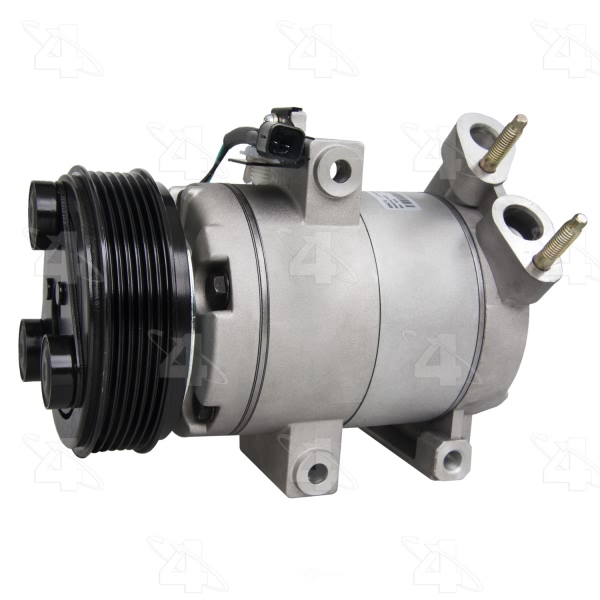

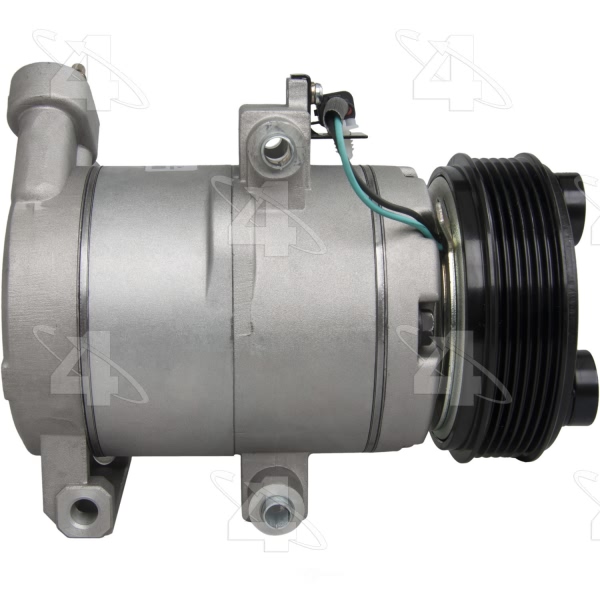

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.515625 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | DKS17D |
Discharge Port Type | O-Ring / Gasket |
Distance From Clutch To Mounting Flange | 2.46875 |
Mount Distance MM | 62.484 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24241] / Sealing Washer Kit |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24243] / Tear Drop Sealing Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 115.875 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.515625 |
Pulley Outside Diameter | 4.515625 |
Pulley Ridge Diameter | 4.515625 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring / Gasket |
Terminal Type | Pin |
UPC | 096361686724 |
Year Make Model | Trim | Engine |
---|---|---|
2008-2012 Ford Escape | All Trims | 6 Cyl 3.0L |
2008-2011 Mazda Tribute | All Trims | 6 Cyl 3.0L |
2007-2011 Mercury Mariner | All Trims | 6 Cyl 3.0L |
