Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68647 |

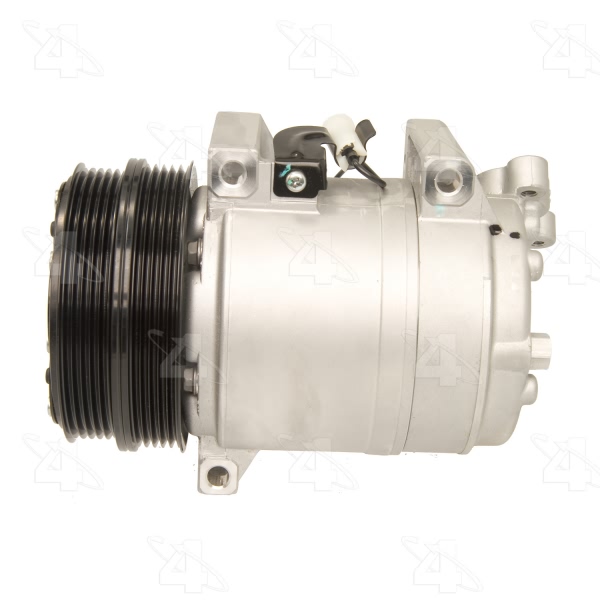

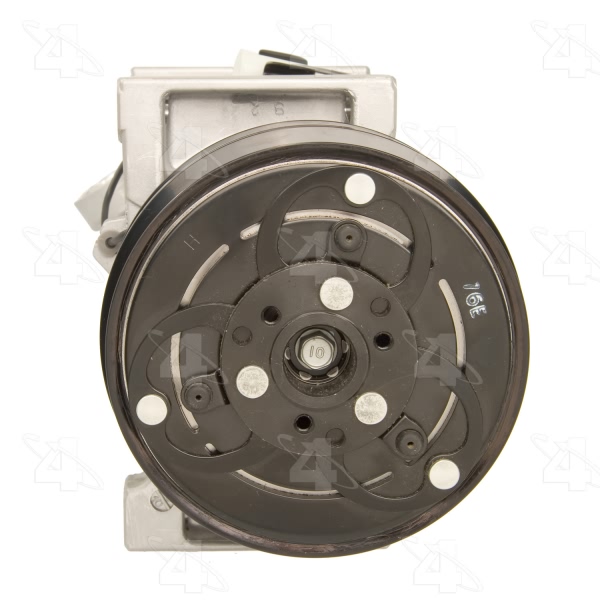

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.6875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | DKS15CH |

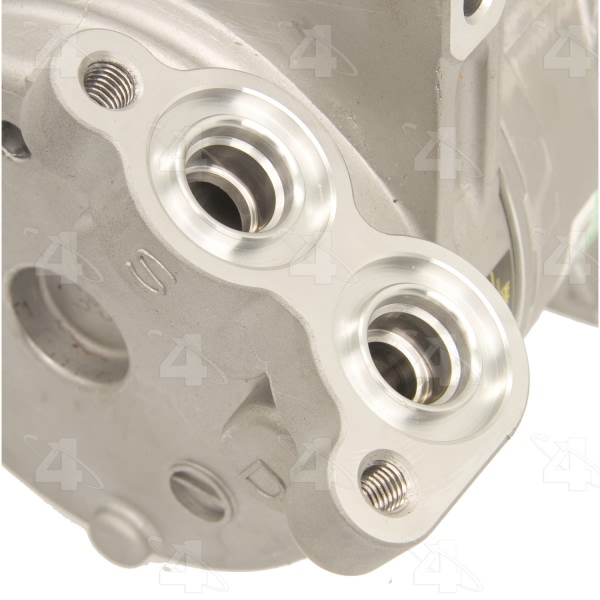

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.40625 |
Mount Distance MM | 10.414 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24615] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter B IN Secondary | 4.985 |
Pulley Diameter B MM Secondary | 126.619 |
Pulley Diameter MM | 118.974 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 4.6875 |
Pulley Outside Diameter | 4.6875 |
Pulley Ridge Diameter | 4.6875 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361686472 |
Year Make Model | Trim | Engine |
---|---|---|
2008-2013 Volvo C30 | All Trims | All Engines |
2004 Volvo C70 | All Trims | All Engines |
2006-2013 Volvo C70 | All Trims | All Engines |
2005-2011 Volvo S40 | All Trims | All Engines |
2005-2011 Volvo V50 | All Trims | All Engines |
1999-2000 Volvo V70 | All Trims | 5 Cyl 2.4L |
