Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68589 |

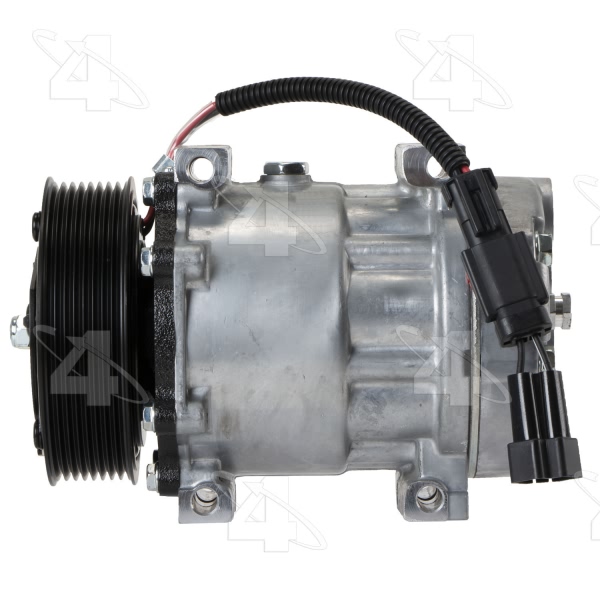

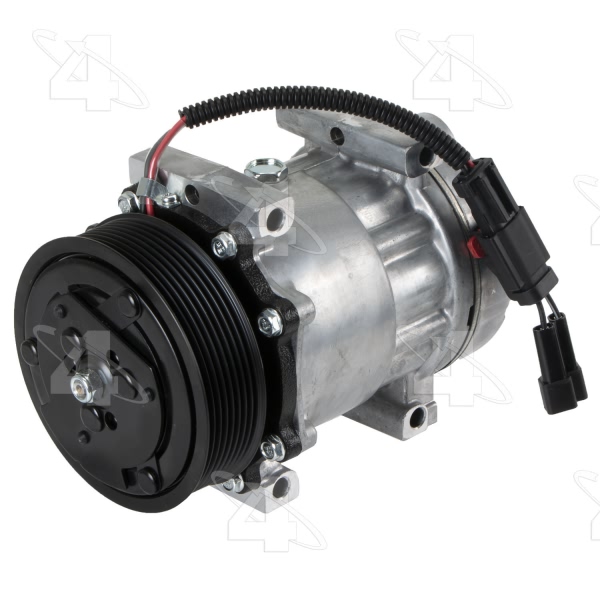

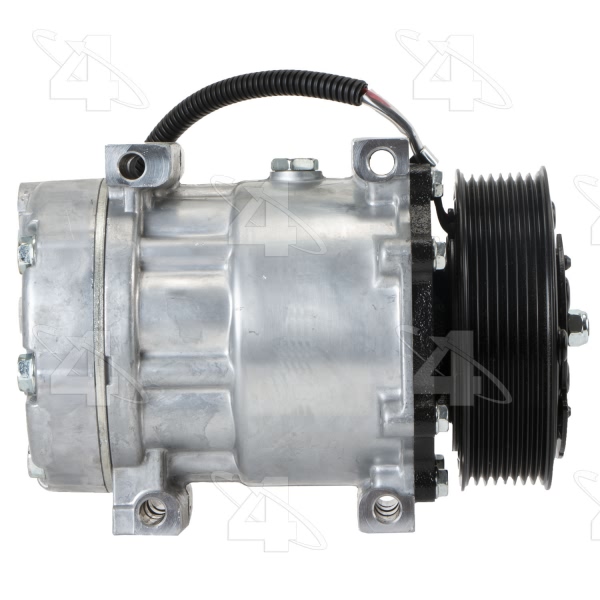

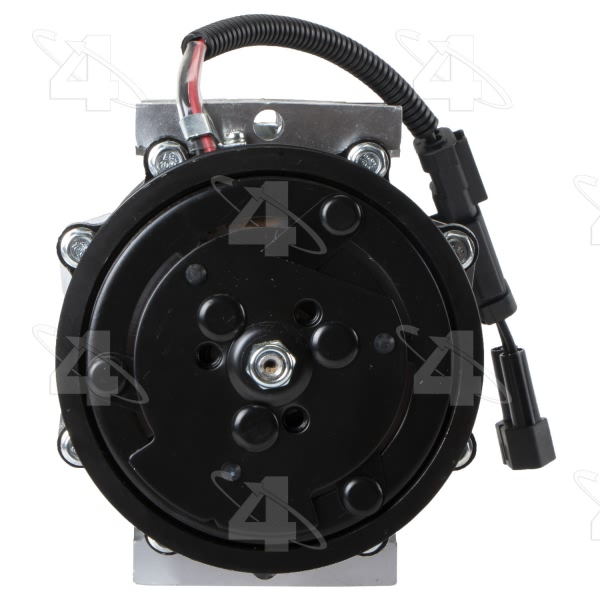

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |

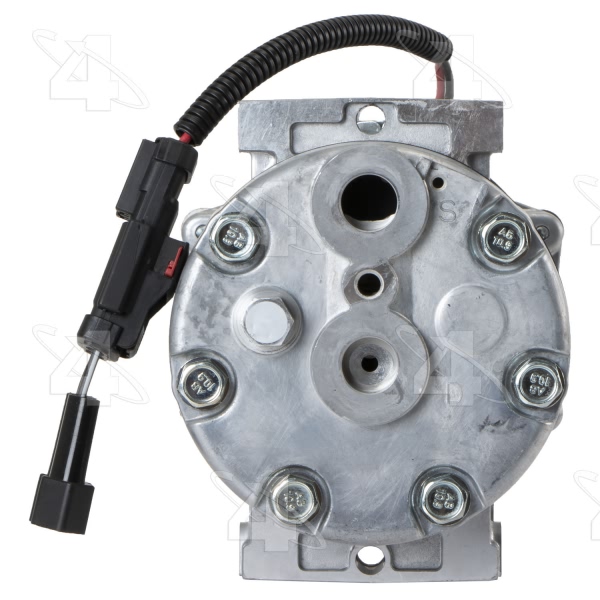

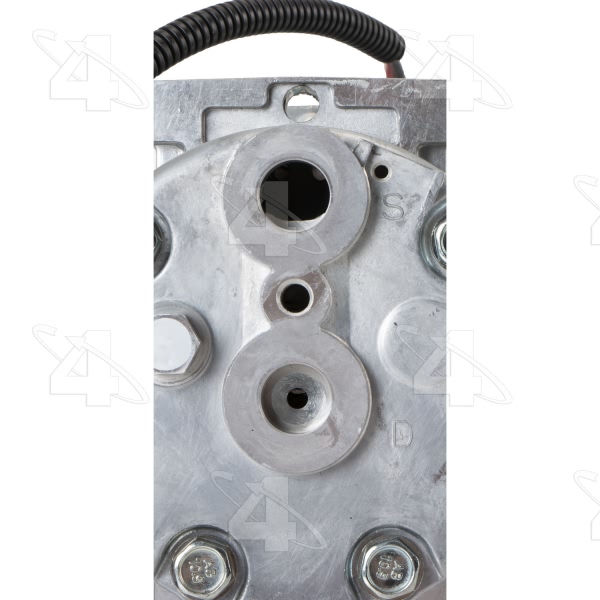

Comp Head Prt Config | Rear-Vert-Pad-SealingWasher |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Head Type | GH |
Compressor Type | SD7H15 |

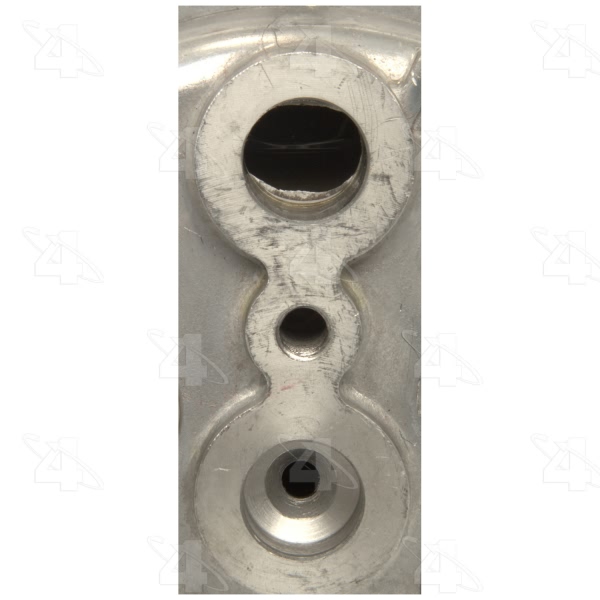

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 0.90625 |
Mount Distance MM | 22.860 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 120.650 |
Pulley Groove Quantity | 8 |
Pulley Lip Diameter | 4.750 |
Pulley Outside Diameter | 4.750 |
Pulley Ridge Diameter | 4.750 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |

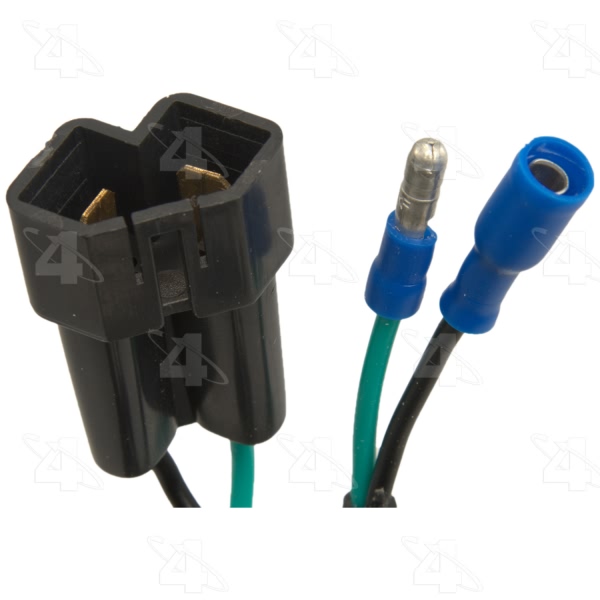

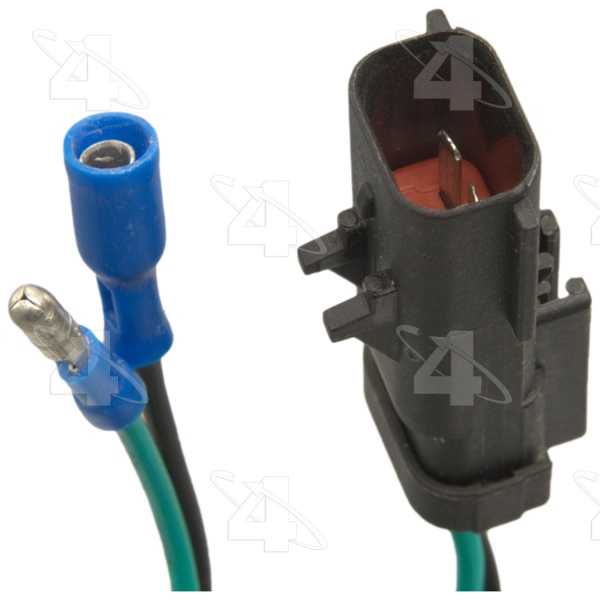

Terminal Type | Spade |
UPC | 096361685895 |
Year Make Model | Trim | Engine |
---|---|---|
1994-2005 Dodge Ram 2500 | All Trims | 6 Cyl 5.9L |
1994-2005 Dodge Ram 3500 | All Trims | 6 Cyl 5.9L |
