Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68580 |

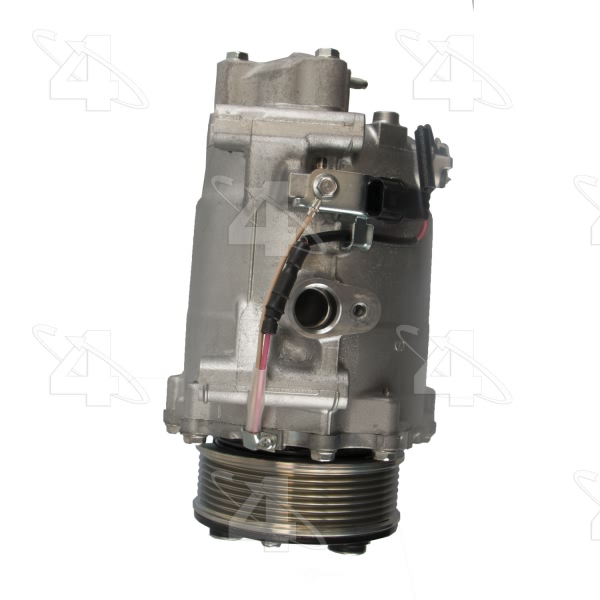

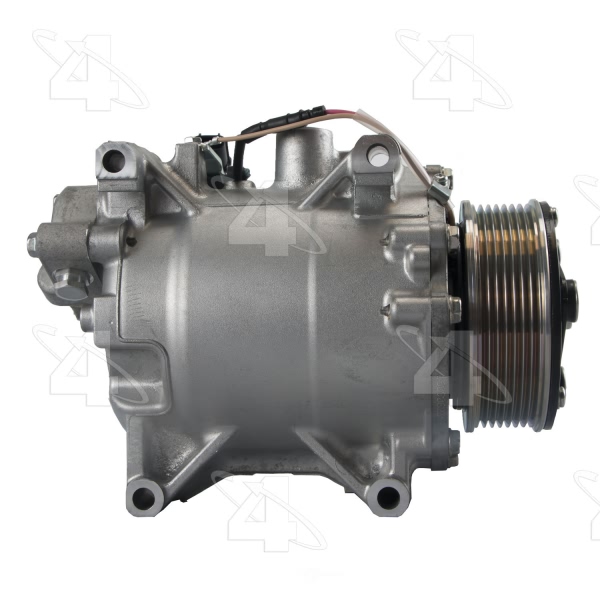

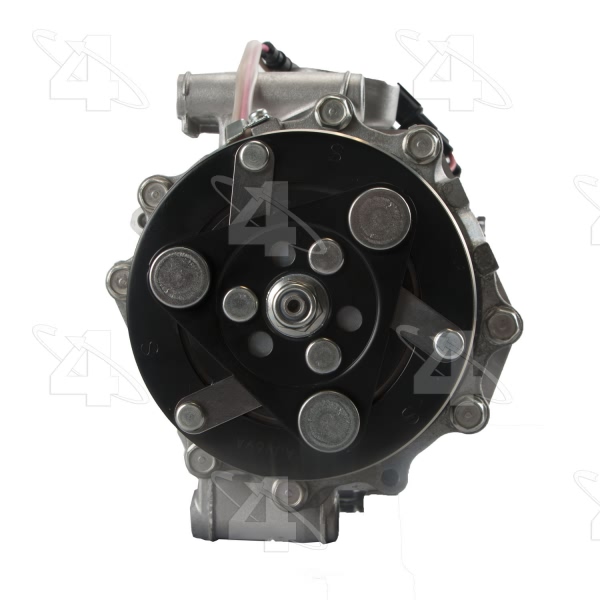

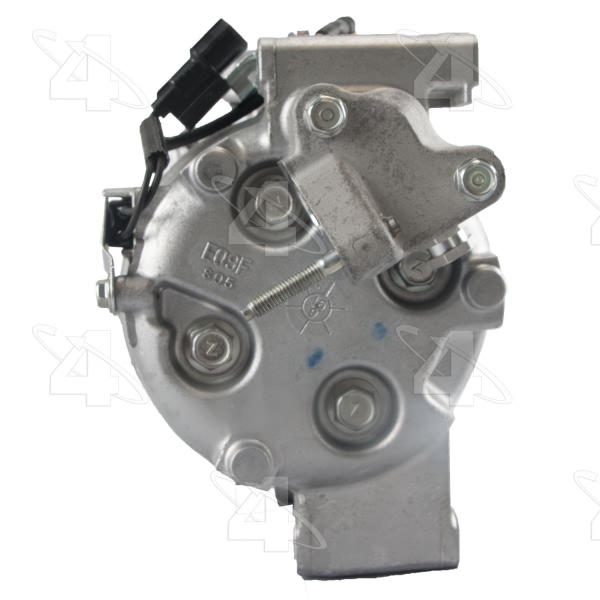

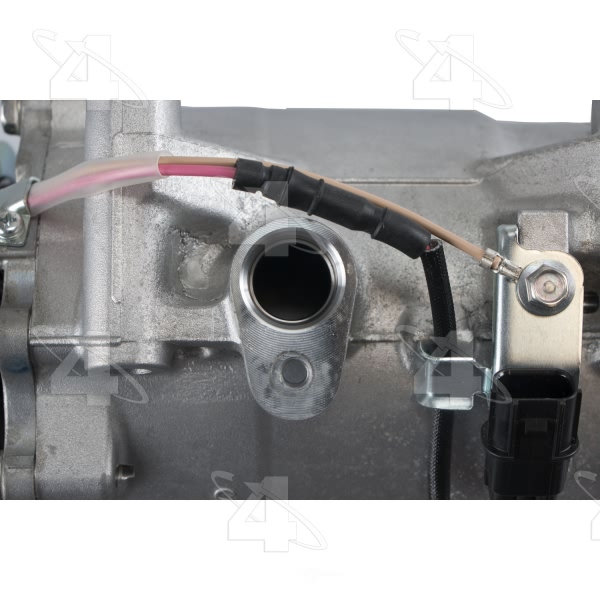

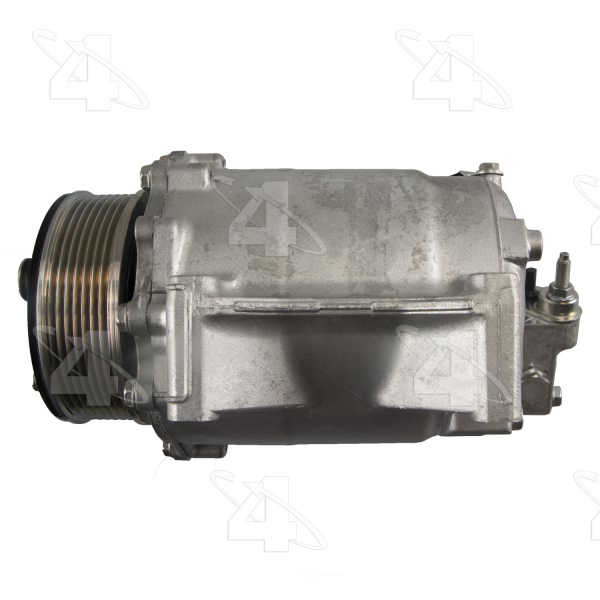

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.000 |

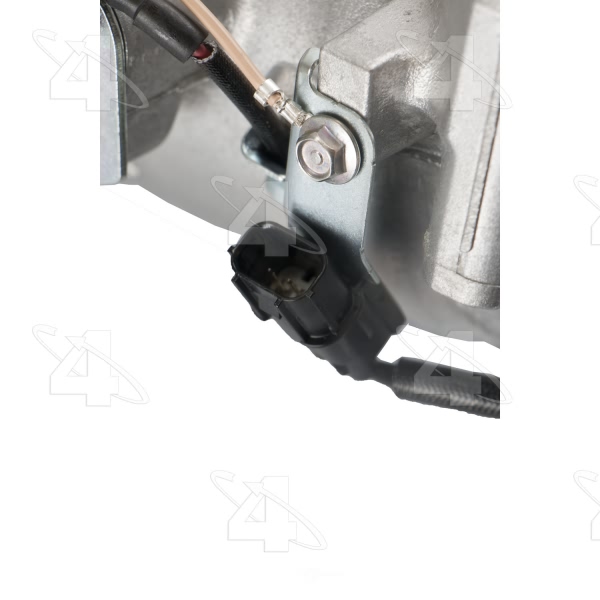

Coil Clock Position | 3 Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
Compressor Type | TRSE09 |
Distance From Clutch To Mounting Flange | 1.328125 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | 24661 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24681 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Printed Foot Note | May Require Discharge Adapter From OE Unit |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 4.000 |
Pulley Outside Diameter | 4.000 |
Pulley Ridge Diameter | 4.000 |
Refrigerant Type | R134a |
Terminal Type | Pin |
UPC | 096361069718 |
Year Make Model | Trim | Engine |
---|---|---|
2017-2018 Acura ILX | All Trims | All Engines |
2015-2016 Honda CR-V | All Trims | All Engines |
