Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68565 |
Part Description | A C Compressor With Clutch |
Clutch Included | Yes |

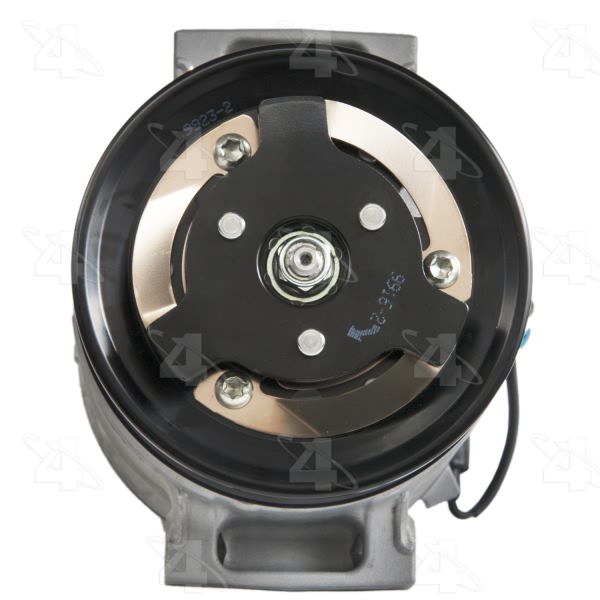

Clutch Maximum Diameter | 4.71875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | PXE16 |

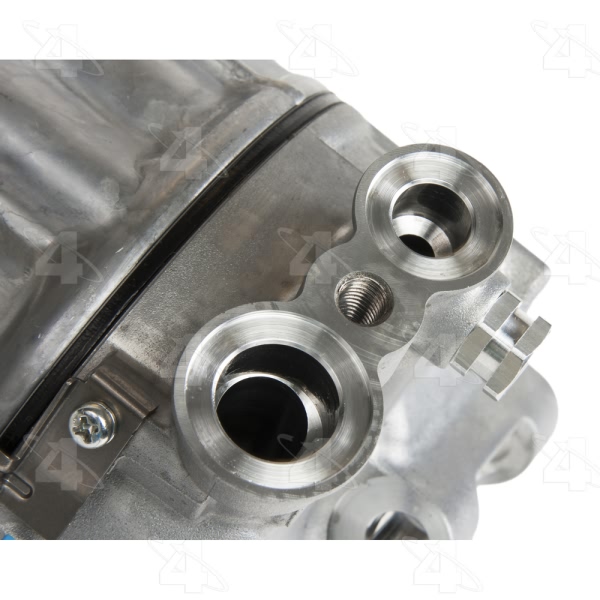

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.296875 |

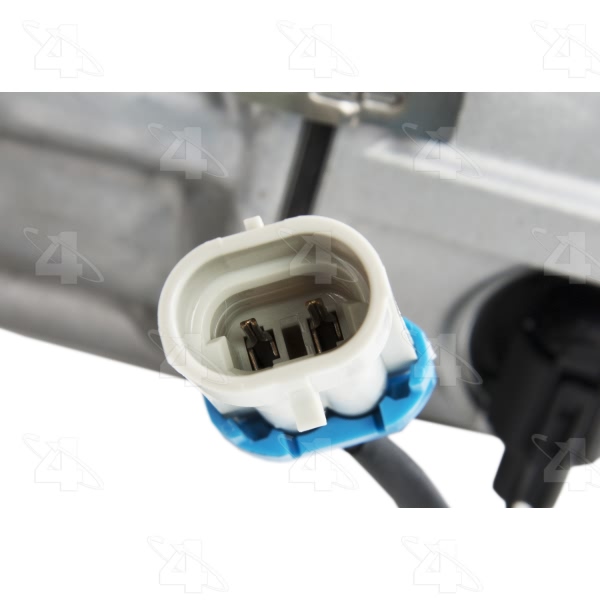

ECV Harness Connector | Compressor SE30F, Vehicle SE22M |
Mount Distance MM | 33.000 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 119.888 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.71875 |
Pulley Outside Diameter | 4.71875 |
Pulley Ridge Diameter | 4.71875 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Terminal Type | Pin |
UPC | 096361685659 |
Year Make Model | Trim | Engine |
---|---|---|
2010 Buick LaCrosse | All Trims | 4 Cyl 2.4L |
2011 Buick Regal | All Trims | 4 Cyl 2.0L |
2011 Buick Regal | All Trims | 4 Cyl 2.4L |
2011 Saab 9-5 | All Trims | 4 Cyl 2.0L |
