Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68559 |

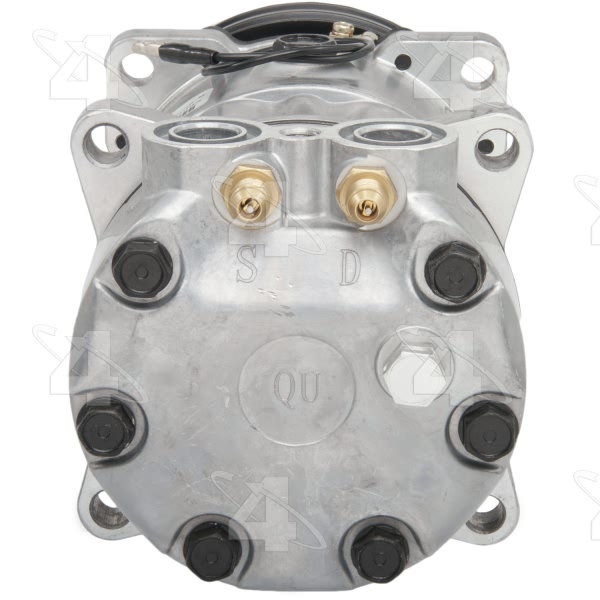

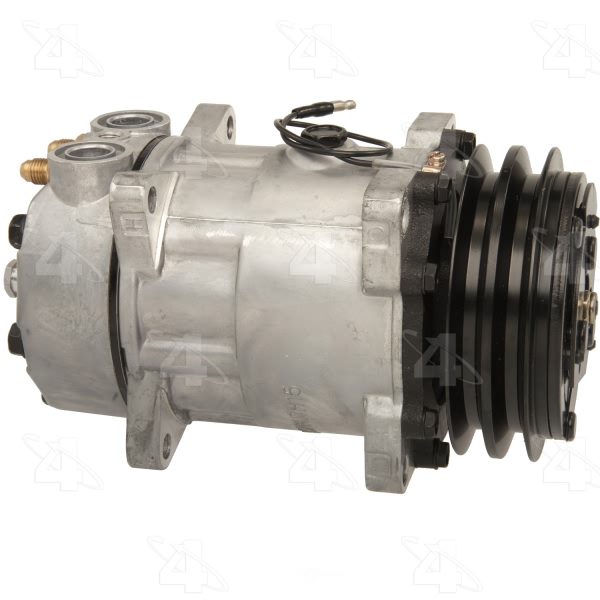

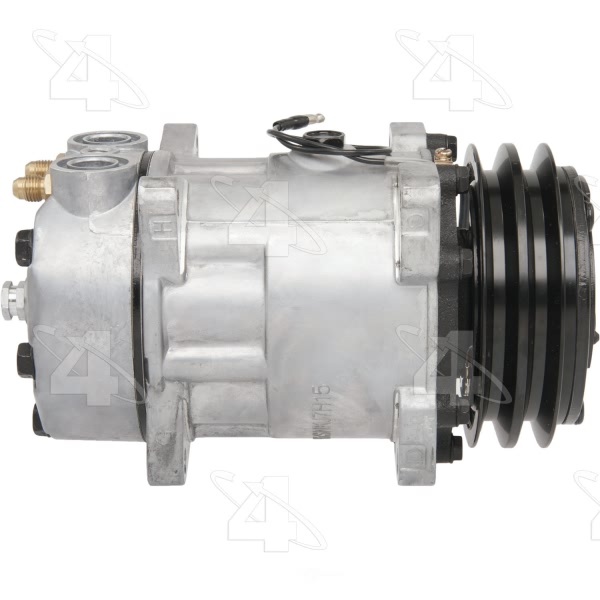

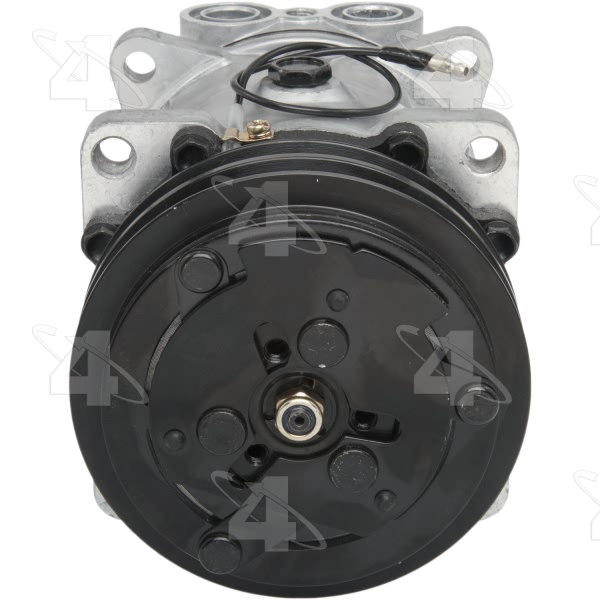

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.500 |
Belt Width MM | 12.700 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Comp Head Prt Config | Top-Vert-Pad |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Head Type | QK/QU |
Compressor Type | SD709 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.203125 |
Mount Distance B IN | 1.796875 |
Mount Distance B MM | 45.720 |
Mount Distance MM | 30.480 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24615] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 130.048 |
Pulley Groove Quantity | 2 |
Pulley Lip Diameter | 5.125 |
Pulley Outside Diameter | 5.125 |
Pulley Ridge Diameter | 5.125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Bullet |
UPC | 096361685598 |
Year Make Model | Trim | Engine |
---|---|---|
1989 Saab 9000 | All Trims | All Engines |
1990 Saab 9000 | All Trims | 4 Cyl 2.0L |
