Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68551 |

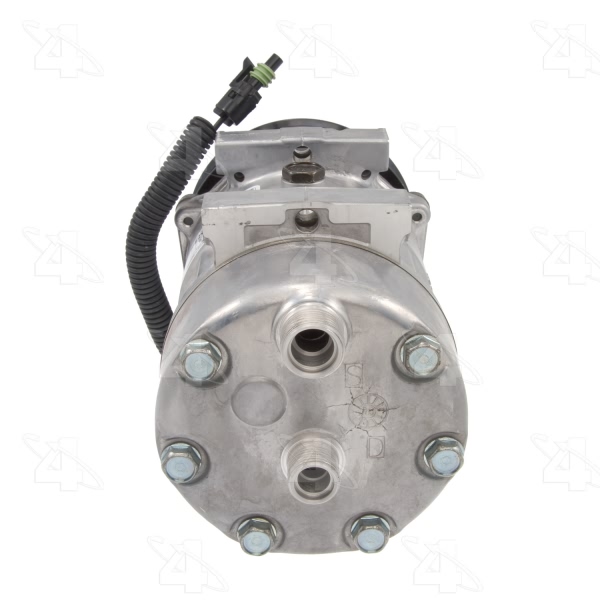

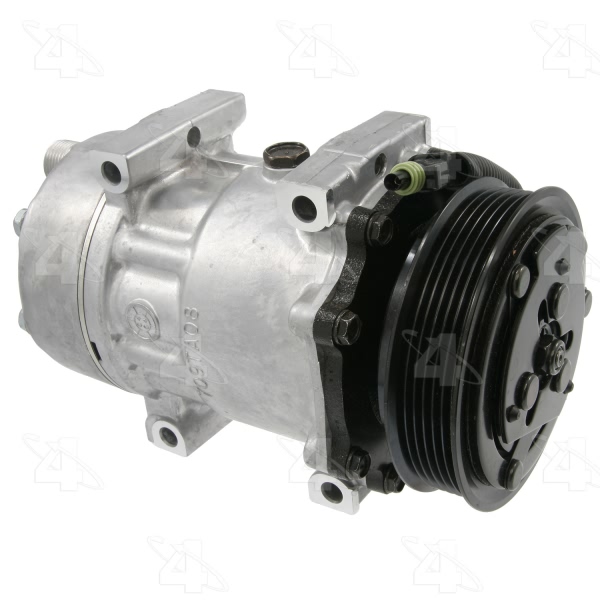

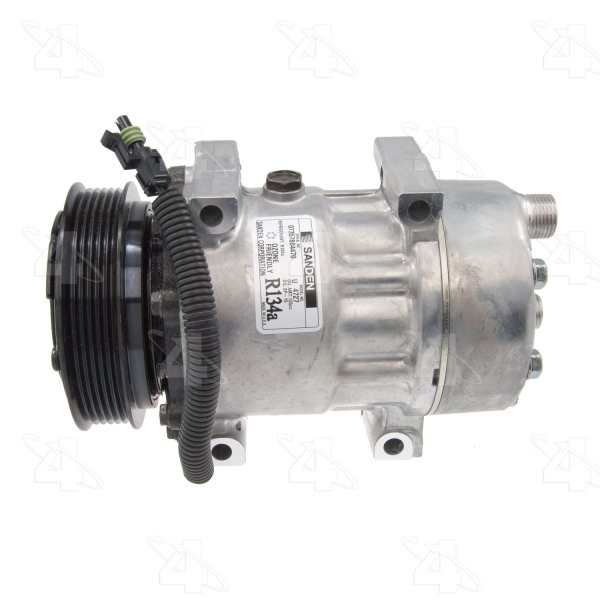

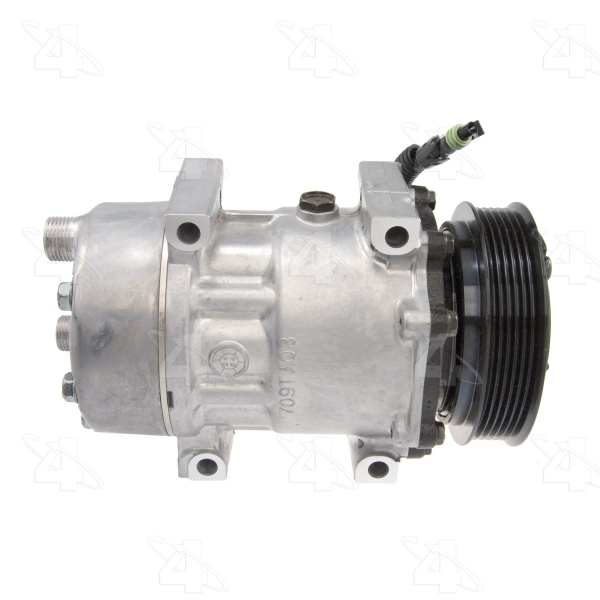

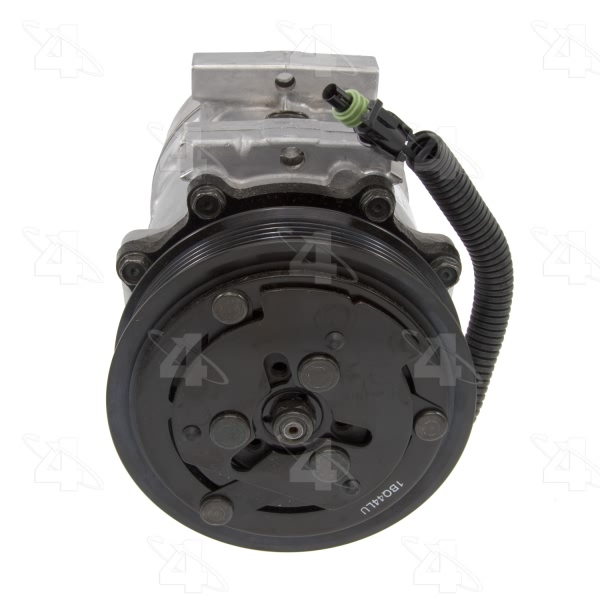

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Comp Head Prt Config | Rear-Horiz-O-Ring |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Head Type | KC |
Compressor Type | SD709 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.453125 |
Mount Distance MM | 36.830 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 120.650 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.750 |
Pulley Outside Diameter | 4.750 |
Pulley Ridge Diameter | 4.750 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

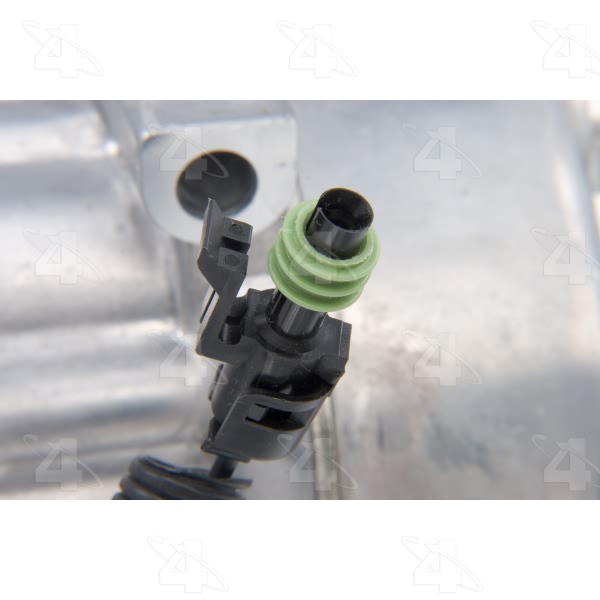

Terminal Type | Pin |
UPC | 096361685512 |
Year Make Model | Trim | Engine |
---|---|---|
1994-1996 Jeep Cherokee | All Trims | All Engines |
1994 Jeep Wrangler | All Trims | All Engines |
