Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68497 |

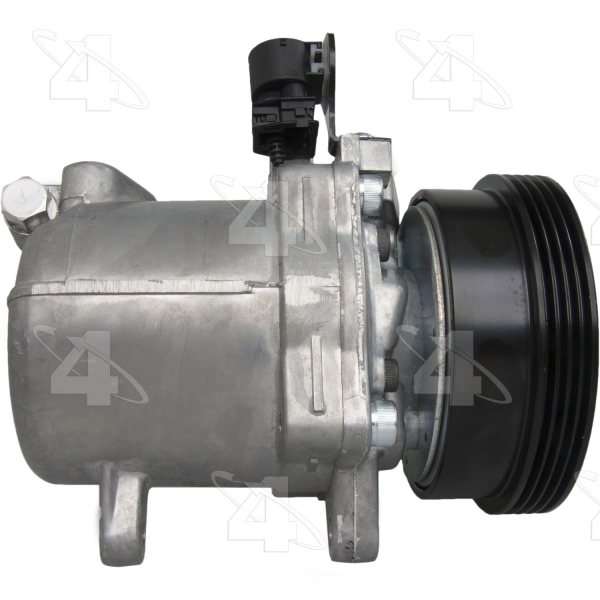

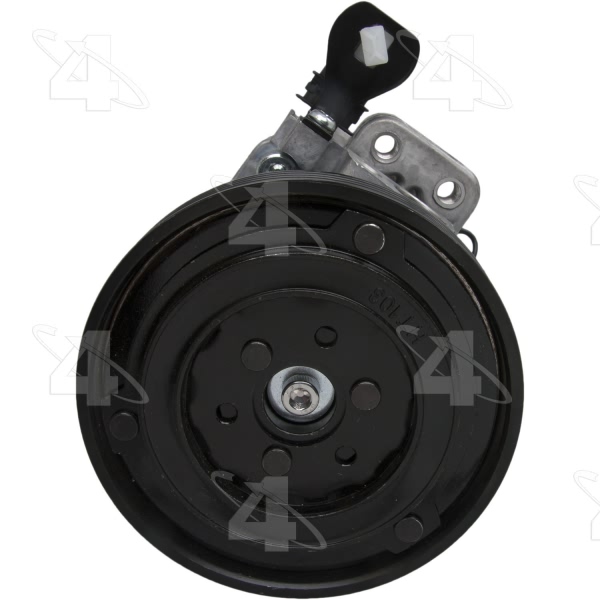

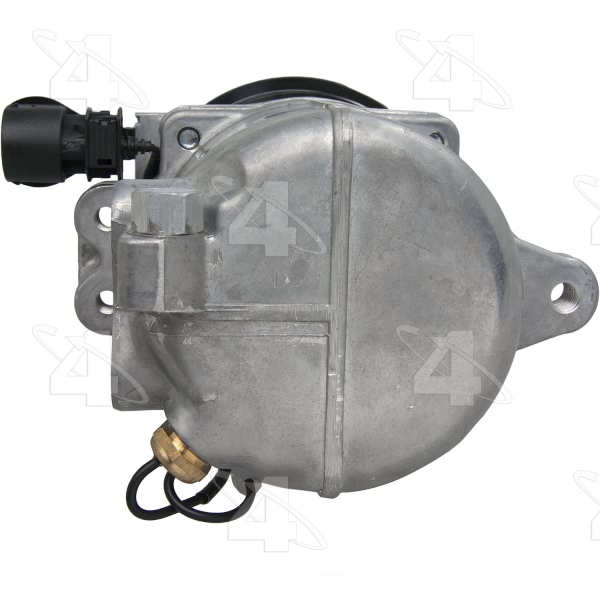

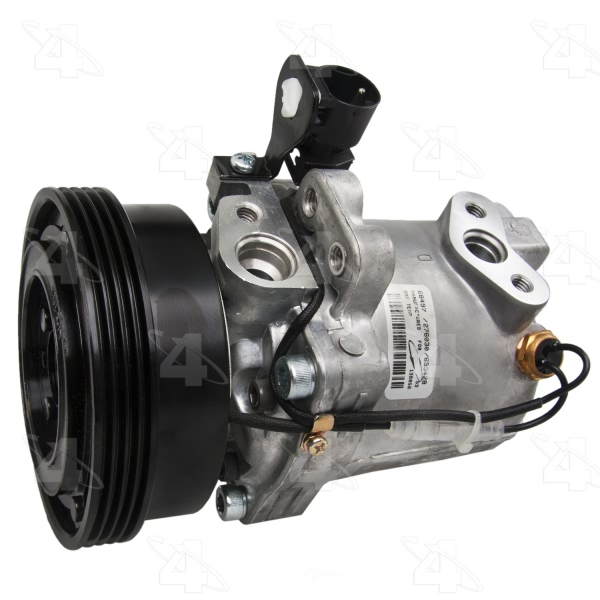

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.500 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | SS96D1 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.328125 |
Mount Distance MM | 33.782 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 114.300 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.500 |
Pulley Outside Diameter | 4.500 |
Pulley Ridge Diameter | 4.500 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Heat Sensor |
Terminal Type | Bullet |
UPC | 096361684973 |
Year Make Model | Trim | Engine |
---|---|---|
1992-1999 BMW 318i | All Trims | All Engines |
1992-1999 BMW 318is | All Trims | All Engines |
1995-1999 BMW 318ti | All Trims | All Engines |
1996 BMW Z3 | All Trims | All Engines |
1997-1998 BMW Z3 | All Trims | 4 Cyl 1.9L |
