Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68485 |

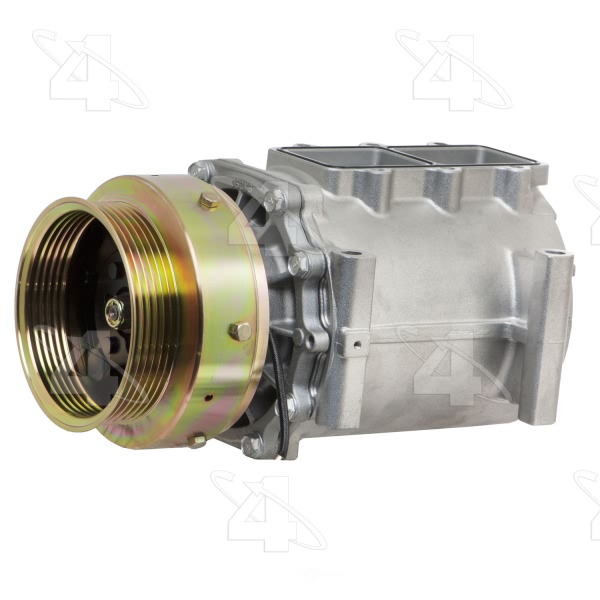

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 3.9375 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | MSC105CVSG1 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.671875 |
Mount Distance MM | 67.818 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24131] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24679] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require Use of O.E. Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 99.822 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 3.9375 |
Pulley Outside Diameter | 3.9375 |
Pulley Ridge Diameter | 3.9375 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Heat Switch |
Terminal Type | Pin |
UPC | 096361684850 |
Year Make Model | Trim | Engine |
---|---|---|
1994-1996 Dodge Stealth | All Trims | 6 Cyl 3.0L |
1994-1996 Mitsubishi 3000GT | All Trims | All Engines |
1994-1995 Mitsubishi Diamante | All Trims | 6 Cyl 3.0L |
1997-1999 Mitsubishi Diamante | All Trims | All Engines |
