Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68474 |

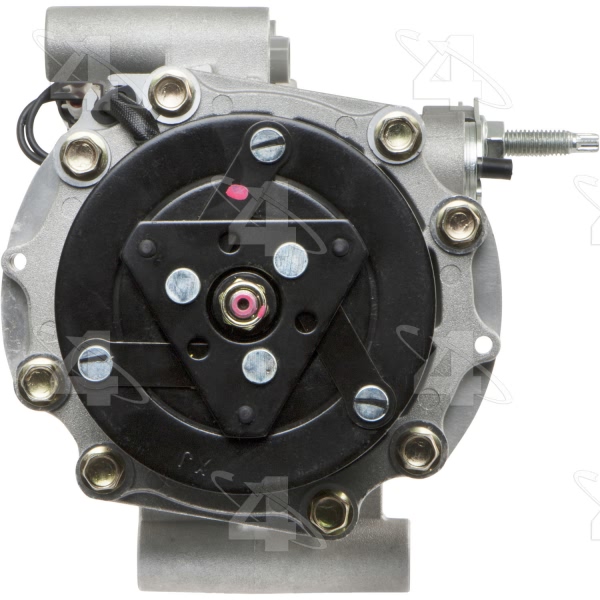

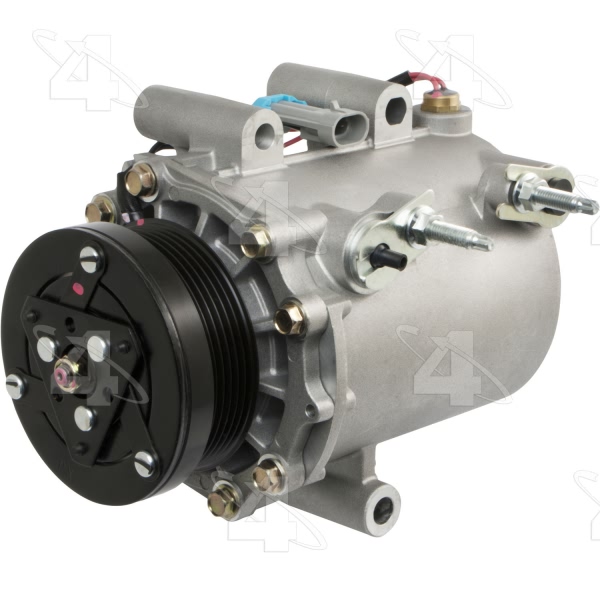

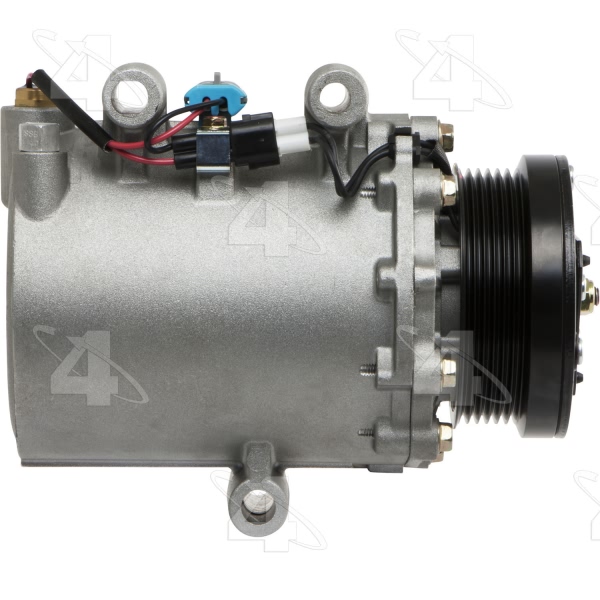

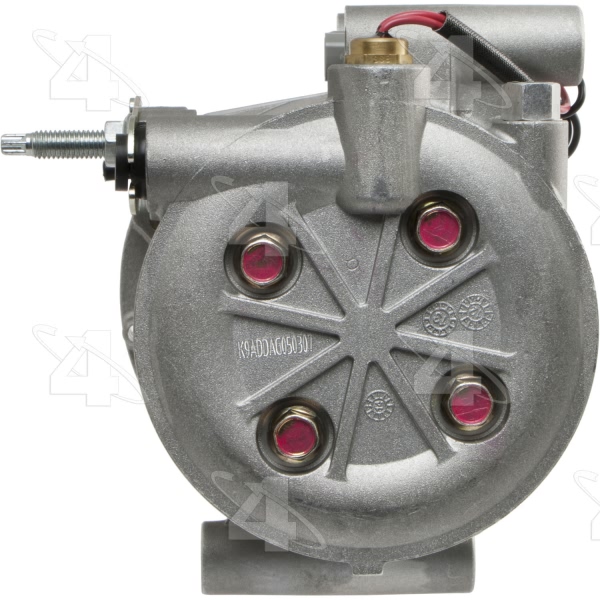

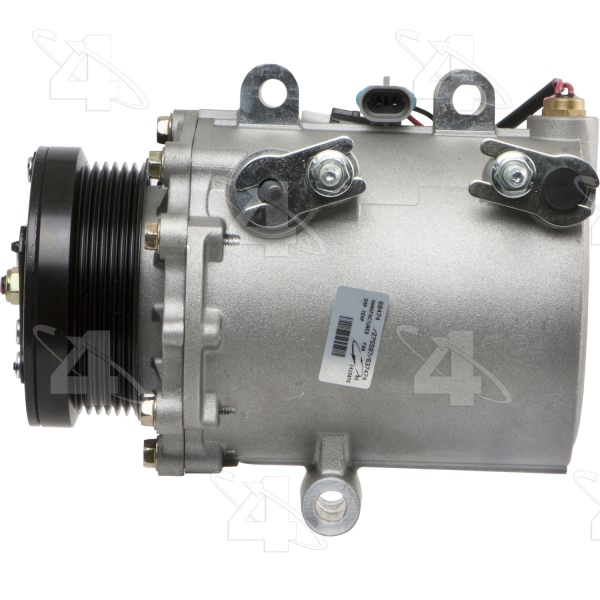

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 3.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | MSC105CVS |
Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.500 |
Mount Distance MM | 38.100 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 95.250 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 3.750 |
Pulley Outside Diameter | 3.750 |
Pulley Ridge Diameter | 3.750 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Switch Included | Heat Sensor |
Terminal Type | Pin |
UPC | 096361684744 |
Year Make Model | Trim | Engine |
---|---|---|
2002-2003 Buick Rendezvous | All Trims | All Engines |
2004-2005 Buick Rendezvous | All Trims | 6 Cyl 3.4L |
2006 Buick Rendezvous | All Trims | 6 Cyl 3.5L |
2007 Buick Rendezvous | All Trims | All Engines |
2001-2005 Chevrolet Venture | All Trims | All Engines |
2001-2004 Oldsmobile Silhouette | All Trims | All Engines |
2001-2005 Pontiac Aztek | All Trims | All Engines |
2001-2004 Pontiac Montana | All Trims | All Engines |
2005 Pontiac Montana | All Trims | 6 Cyl 3.4L |
