Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68454 |

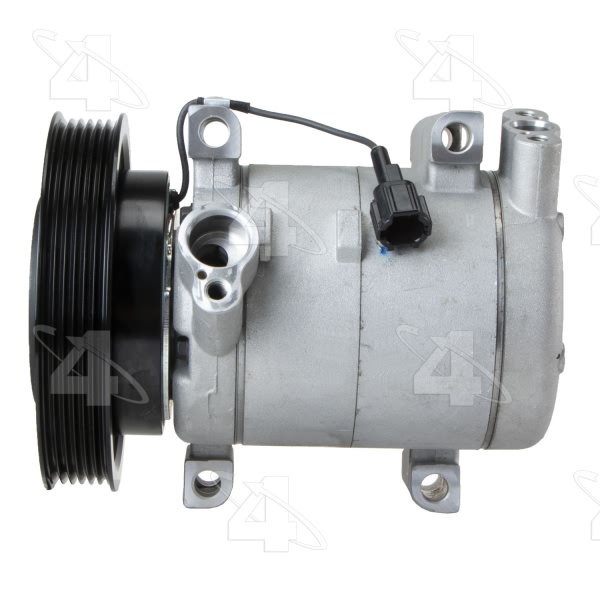

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.625 |

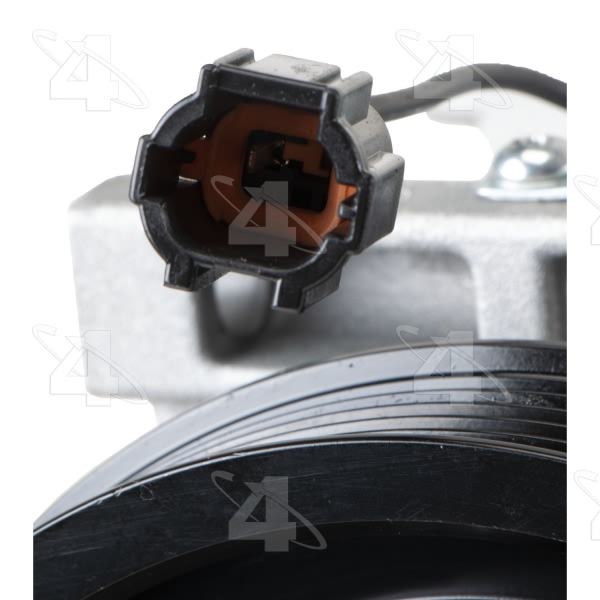

Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | DKV14D |

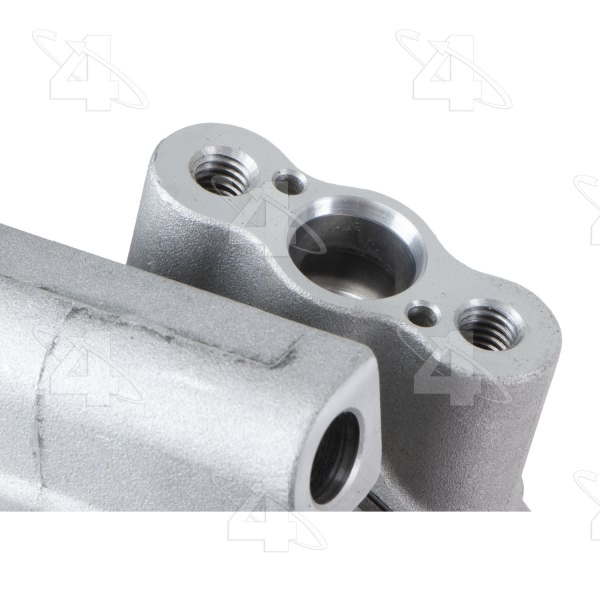

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.09375 |
Mount Distance MM | 27.940 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24602] / Green Round O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24659] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 142.875 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.625 |
Pulley Outside Diameter | 5.625 |
Pulley Ridge Diameter | 5.625 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Heat Sensor |
Terminal Type | Pin |
UPC | 096361684546 |
Year Make Model | Trim | Engine |
---|---|---|
2001-2004 Nissan Frontier | All Trims | 6 Cyl 3.3L |
2002-2004 Nissan Xterra | All Trims | 6 Cyl 3.3L |
