Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68427 |

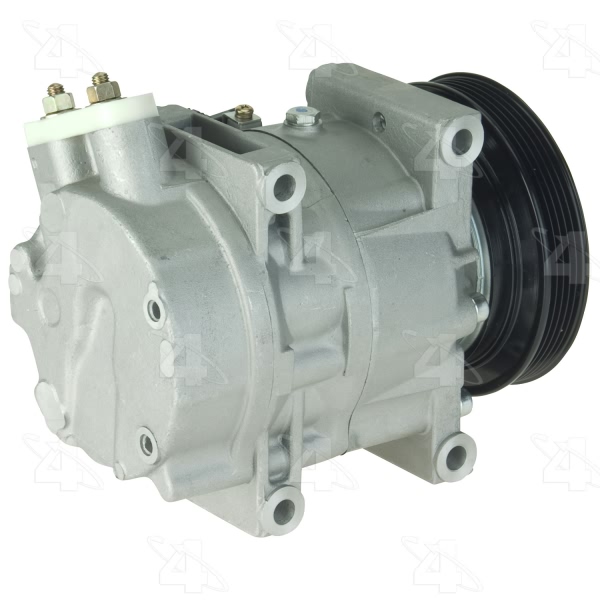

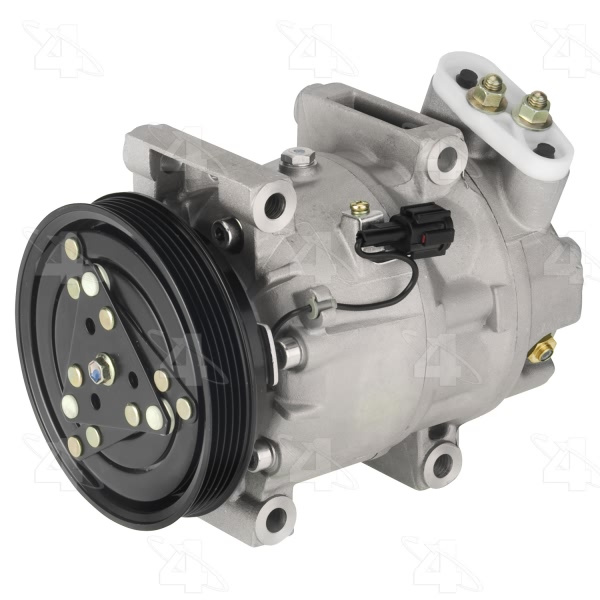

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | CWV618 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.21875 |
Mount Distance MM | 30.988 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24602] / Green Round O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24659] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 133.350 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 5.250 |
Pulley Outside Diameter | 5.250 |
Pulley Ridge Diameter | 5.250 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361684270 |
Year Make Model | Trim | Engine |
---|---|---|
1997-2000 Infiniti QX4 | All Trims | All Engines |
1996-2001 Nissan Pathfinder | All Trims | All Engines |
