Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68378 |

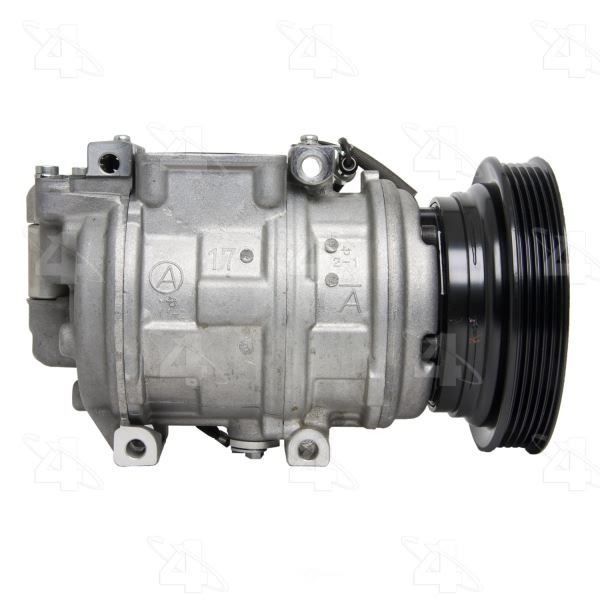

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |

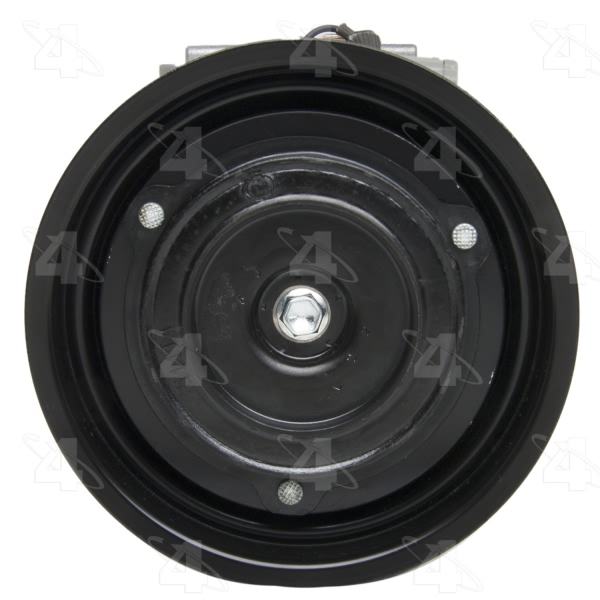

Clutch Maximum Diameter | 5.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10PA17VC |

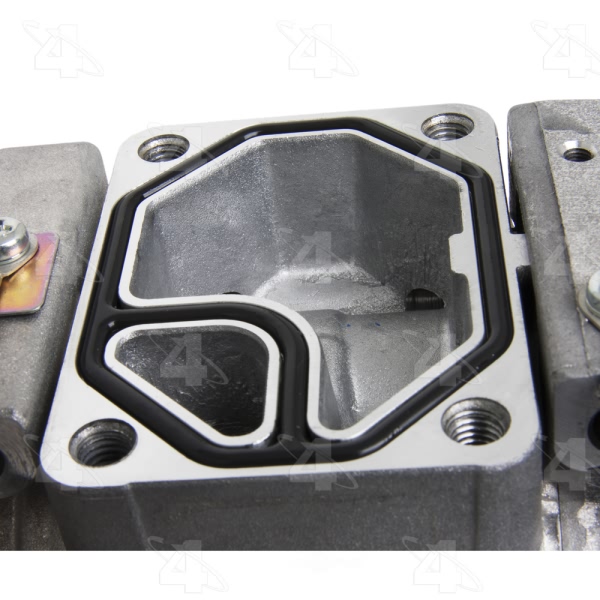

Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 3.09375 |
Mount Distance MM | 79.756 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24156] / Compressor Manifold Port Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 133.350 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 5.250 |
Pulley Outside Diameter | 5.250 |
Pulley Ridge Diameter | 5.250 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |
Switch Service Port | w/ Switch Port |

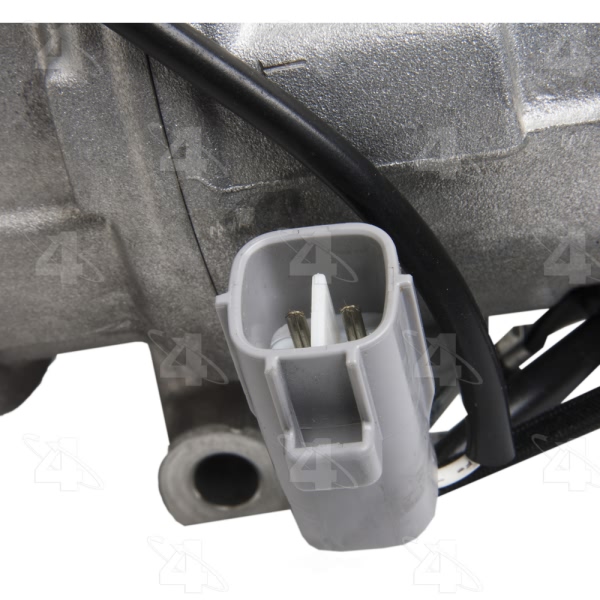

Terminal Type | Spade |
UPC | 096361683785 |
Year Make Model | Trim | Engine |
---|---|---|
1990-1991 Lexus ES250 | All Trims | All Engines |
1988-1991 Toyota Camry | All Trims | 6 Cyl 2.5L |
1990-1992 Toyota Celica | All Trims | 4 Cyl 2.2L |
1990-1993 Toyota Celica | All Trims | 4 Cyl 2.0L |
1994-1996 Toyota Celica | All Trims | 4 Cyl 2.2L |
