Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68337 |

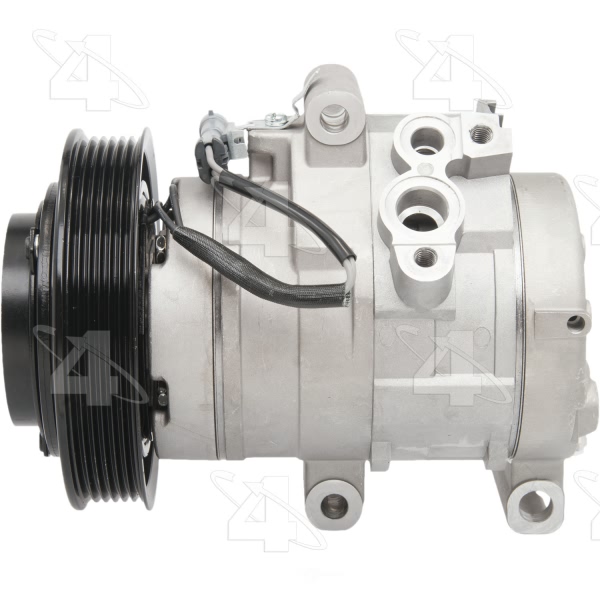

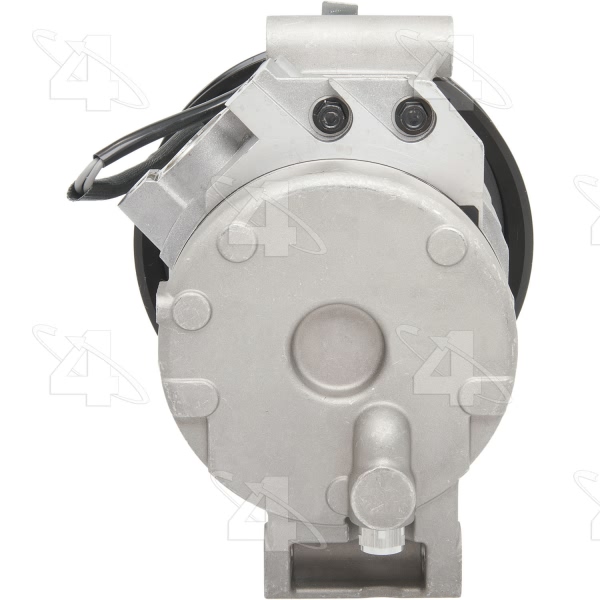

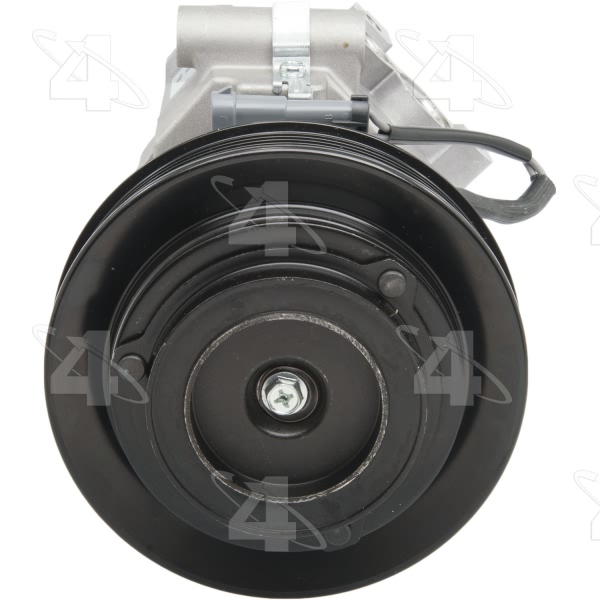

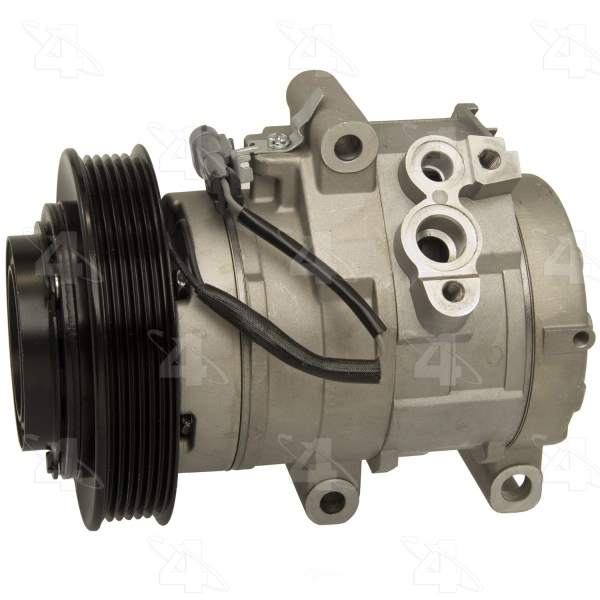

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.500 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10S17C |
Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 2.40625 |
Mount Distance MM | 60.960 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 139.700 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.500 |
Pulley Outside Diameter | 5.500 |
Pulley Ridge Diameter | 5.500 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Terminal Type | Pin |
UPC | 096361683372 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2008 Chevrolet Colorado | All Trims | All Engines |
2009-2012 Chevrolet Colorado | All Trims | 4 Cyl 2.9L |
2009-2012 Chevrolet Colorado | All Trims | 5 Cyl 3.7L |
2004-2008 GMC Canyon | All Trims | All Engines |
2009-2012 GMC Canyon | All Trims | 4 Cyl 2.9L |
2009-2012 GMC Canyon | All Trims | 5 Cyl 3.7L |
2006-2007 Hummer H3 | All Trims | All Engines |
2008-2010 Hummer H3 | All Trims | 5 Cyl 3.7L |
2009-2010 Hummer H3T | All Trims | 5 Cyl 3.7L |
2006 Isuzu i-280 | All Trims | All Engines |
