Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68328 |

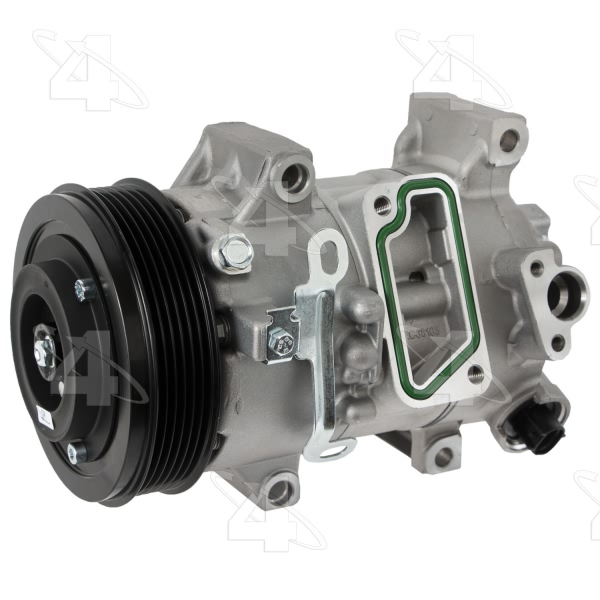

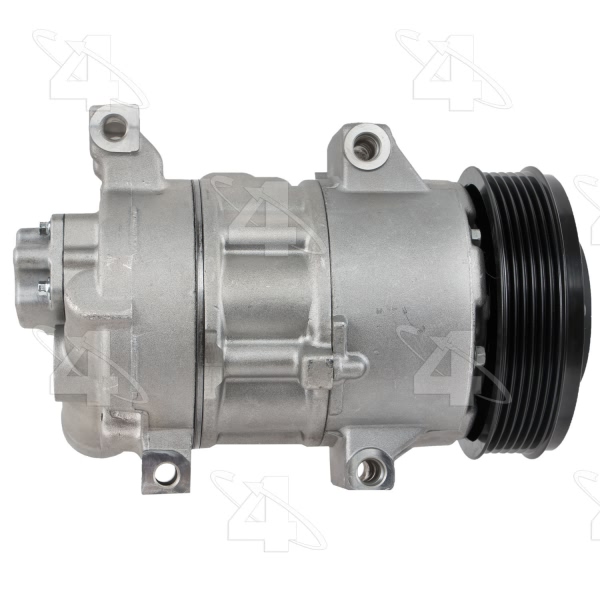

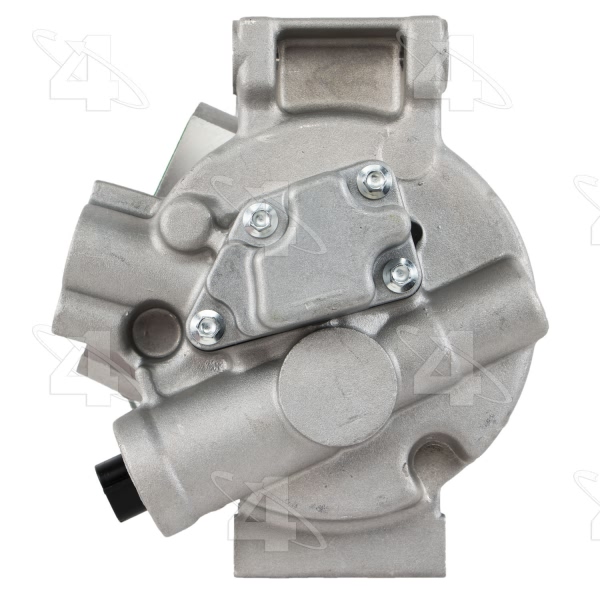

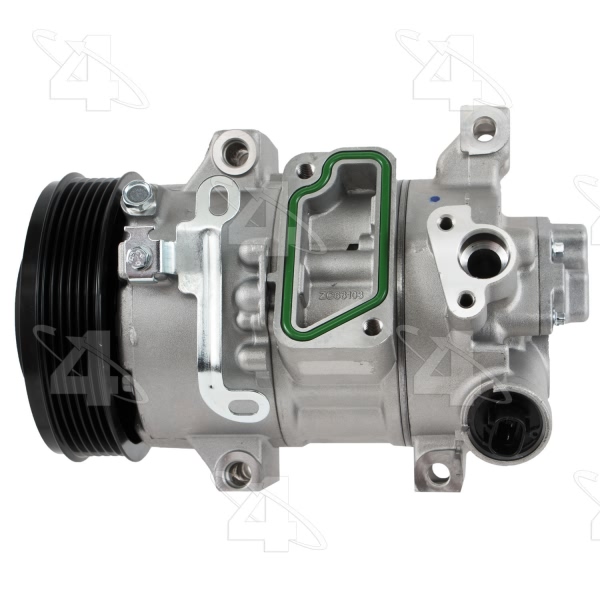

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |

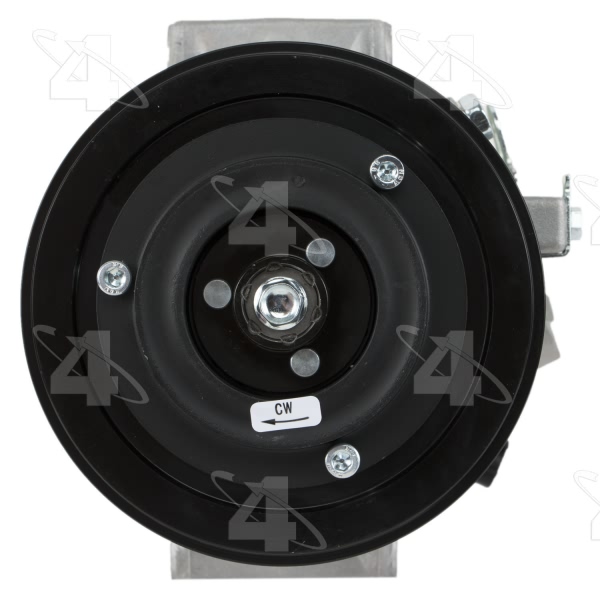

Clutch Maximum Diameter | 4.6875 |
Coil Clock Position | NR |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 6SEU14C |

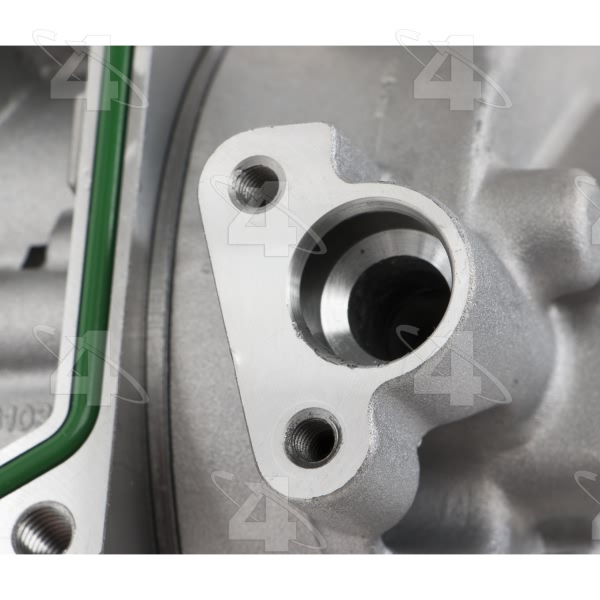

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.640625 |

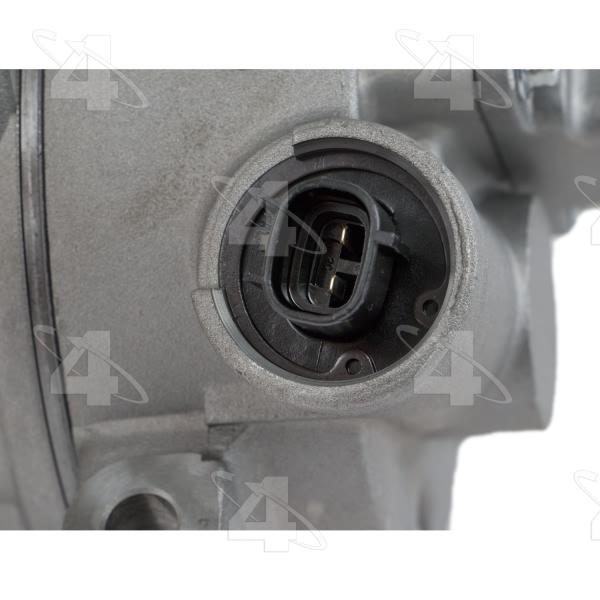

ECV Harness Connector | SE10F, 26984 Female / / SE10M, 26878 Male |
Mount Distance MM | 41.656 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |

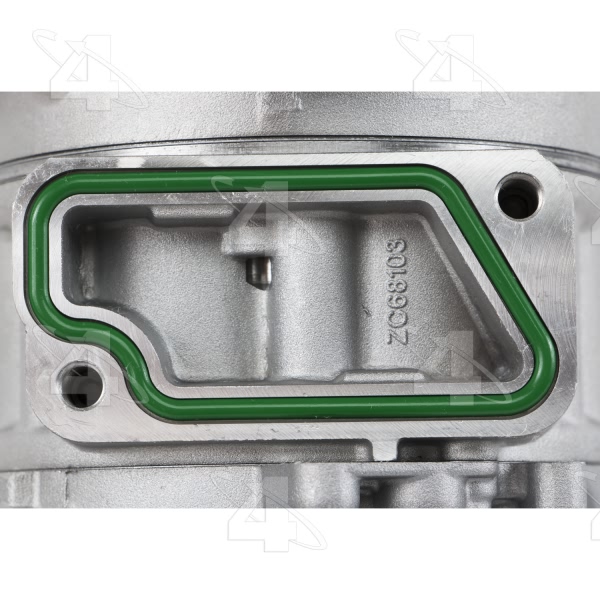

O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 119.050 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.6875 |
Pulley Outside Diameter | 4.6875 |
Pulley Ridge Diameter | 4.6875 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Control Valve |
Terminal Type | Pin |
UPC | 096361683280 |
Year Make Model | Trim | Engine |
---|---|---|
2008-2014 Scion xD | All Trims | All Engines |
2009-2010 Toyota Corolla | All Trims | 4 Cyl 1.8L |
2009-2010 Toyota Matrix | All Trims | 4 Cyl 1.8L |
2012 Toyota Matrix | All Trims | 4 Cyl 1.8L |
