Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68323 |

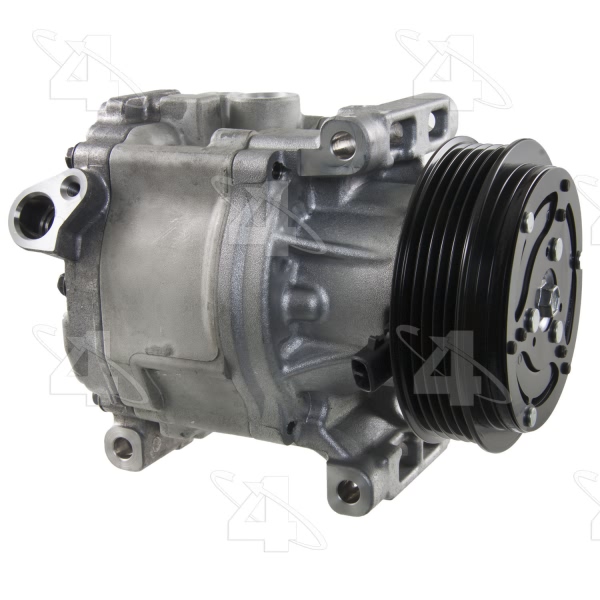

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 3.750 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | SCSB06C |
Distance From Clutch To Mounting Flange | 0.828125 |
Mount Distance MM | 21.082 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24661] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24681] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 95.250 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 3.750 |
Pulley Outside Diameter | 3.750 |
Pulley Ridge Diameter | 3.750 |
Refrigerant Type | R134a |
Terminal Type | Pin |
UPC | 096361683235 |
w/ Diode | No |
Year Make Model | Trim | Engine |
---|---|---|
2012 Fiat 500 | All Trims | All Engines |
2013-2016 Fiat 500 | All Trims | 4 Cyl 1.4L |
2017 Fiat 500 | Lounge | 4 Cyl 1.4L |
2018 Fiat 500 | Abarth | All Engines |
2018 Fiat 500 | Abarth Cabrio | All Engines |
2018 Fiat 500 | All Trims | All Engines |
2018 Fiat 500 | c Lounge | All Engines |
2018 Fiat 500 | c Pop | All Engines |
2018 Fiat 500 | Lounge | All Engines |
2018 Fiat 500 | Pop | All Engines |
