Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68321 |

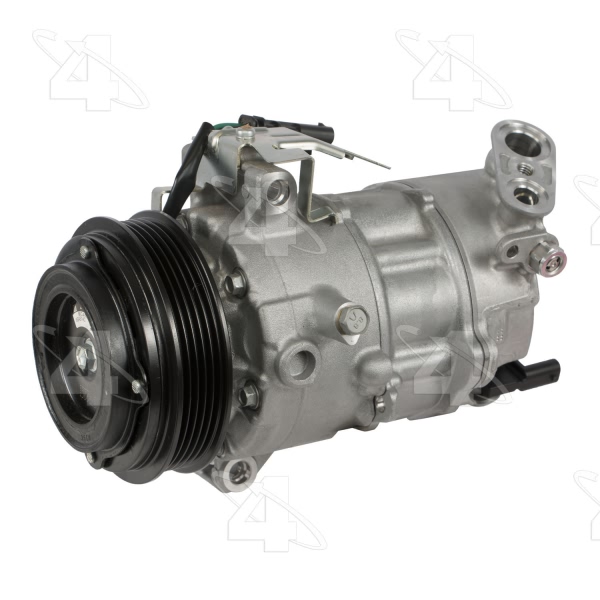

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.328125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
Compressor Type | 6SAS14C |
Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.250 |
ECV Harness Connector | SE31F, 26900 Female / / SE23M, 26883 Male |
Mount Distance MM | 31.750 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 4.328125 |
Pulley Outside Diameter | 4.328125 |
Pulley Ridge Diameter | 4.328125 |
Refrigerant Type | R-134a or R1234yf |
Suction Port Type | Sealing Washer |
Terminal Type | Pin |
UPC | 096361683211 |
w/ Diode | No |
Year Make Model | Trim | Engine |
---|---|---|
2013-2016 Cadillac ATS | All Trims | 4 Cyl 2.5L |
2013-2017 Cadillac ATS | All Trims | 4 Cyl 2.0L |
2014-2018 Cadillac CTS | All Trims | 4 Cyl 2.0L |
2016-2019 Chevrolet Camaro | All Trims | 4 Cyl 2.0L |
