Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68319 |

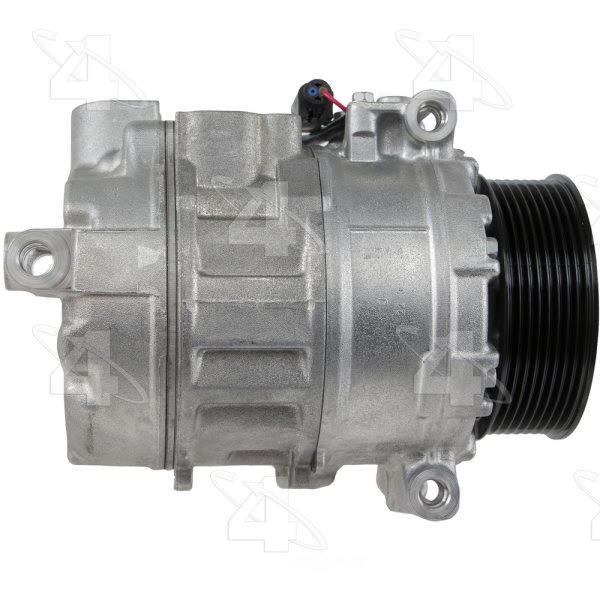

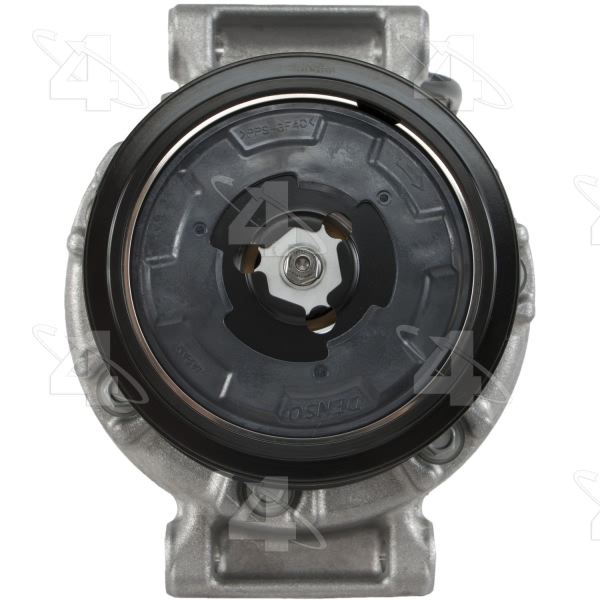

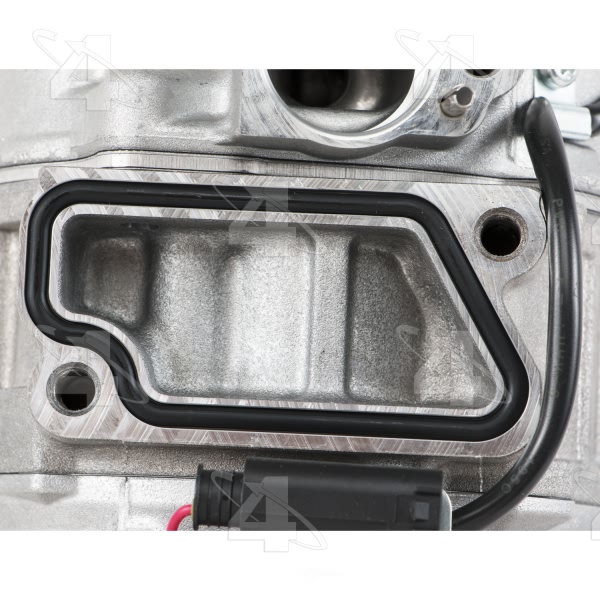

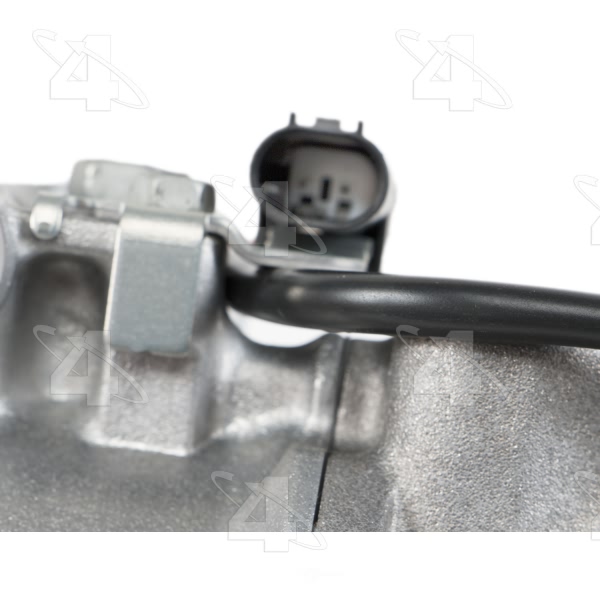

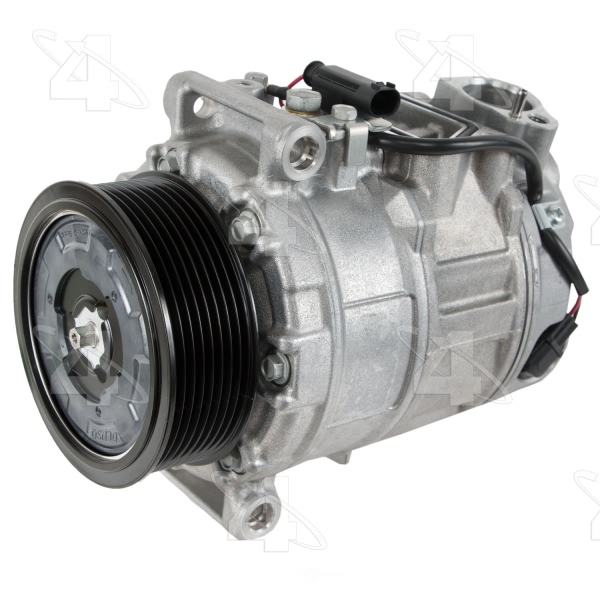

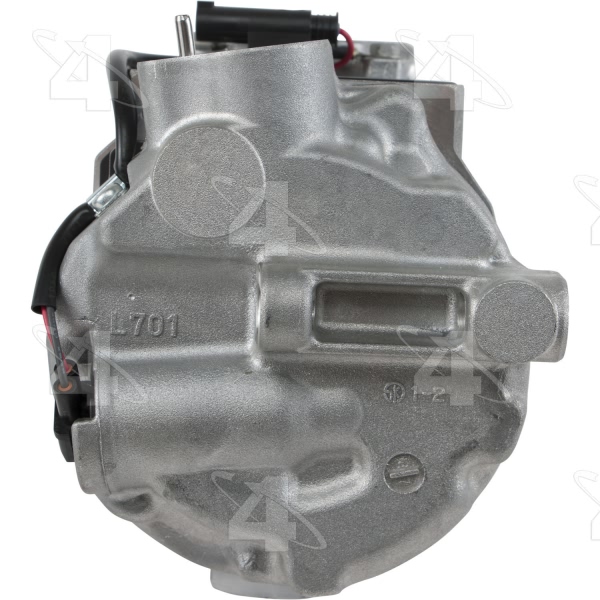

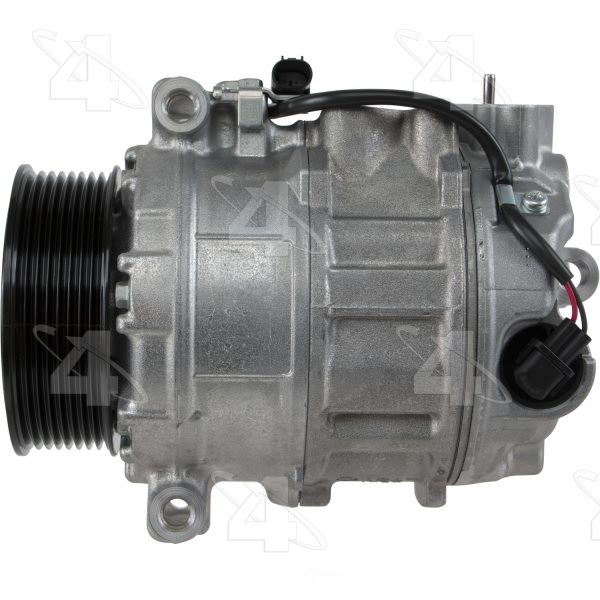

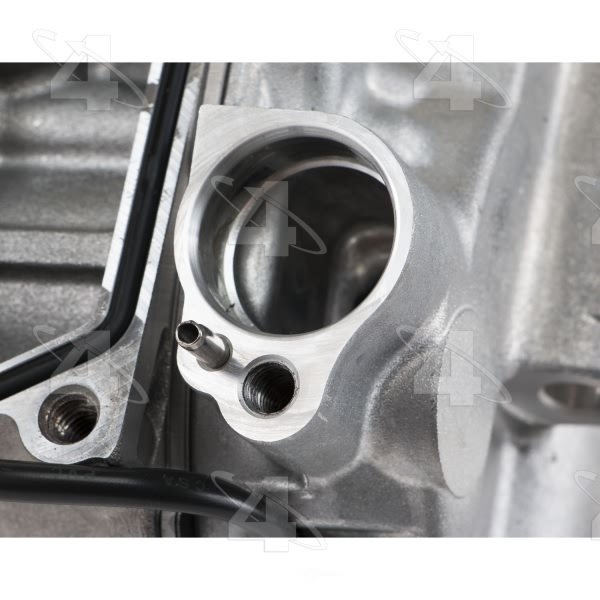

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 3.9375 |
Coil Clock Position | 3 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SEU17C |
Distance From Clutch To Mounting Flange | 0.6875 |
ECV Harness Connector | SE05F, 26892 Female / / SE22M, 26882 Male |
Mount Distance MM | 17.526 |
Mounting Hardware | Not Included |
Mounting Type | 3 Tangent One on Rear Head |
New or Reman | New |
O-Ring A Number/Desc | [24659] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 100.080 |
Pulley Groove Quantity | 8 |
Pulley Lip Diameter | 3.9375 |
Pulley Outside Diameter | 3.9375 |
Pulley Ridge Diameter | 3.9375 |
Refrigerant Type | R134a |
Terminal Type | Pin |
UPC | 096361683198 |
w/ Diode | No |
Year Make Model | Trim | Engine |
---|---|---|
2007-2009 Mercedes-Benz GL320 | All Trims | All Engines |
2010-2012 Mercedes-Benz GL350 | All Trims | All Engines |
2007 Mercedes-Benz ML320 | All Trims | All Engines |
2009 Mercedes-Benz ML320 | All Trims | All Engines |
2010-2011 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.0L |
2007-2009 Mercedes-Benz R320 | All Trims | All Engines |
2010-2012 Mercedes-Benz R350 | All Trims | 6 Cyl 3.0L |
