Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68311 |

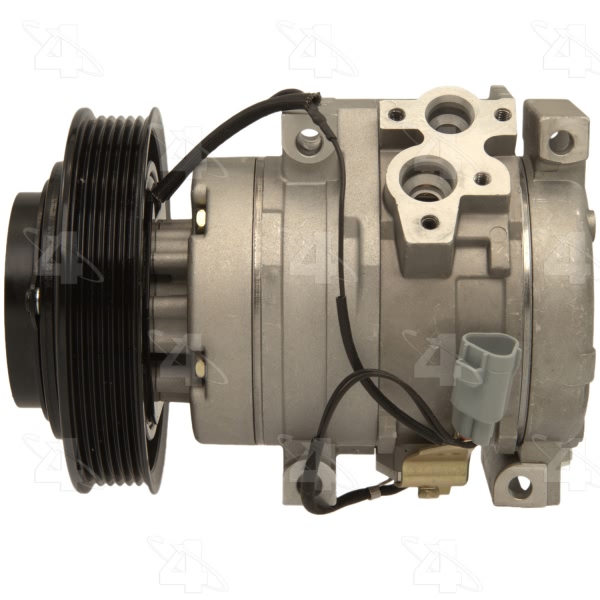

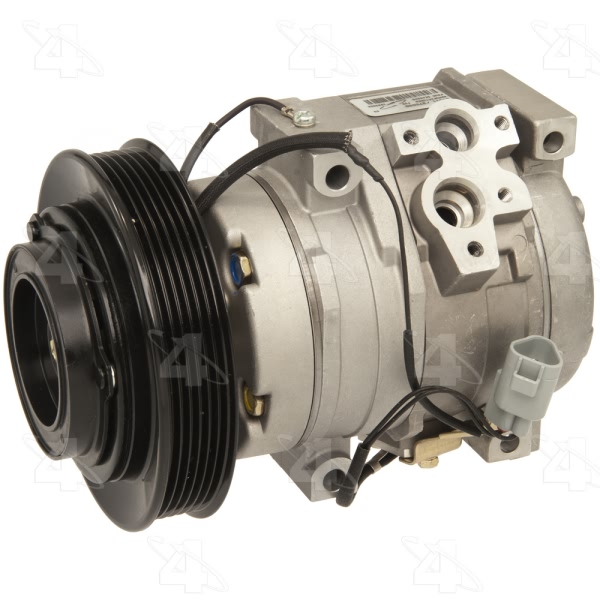

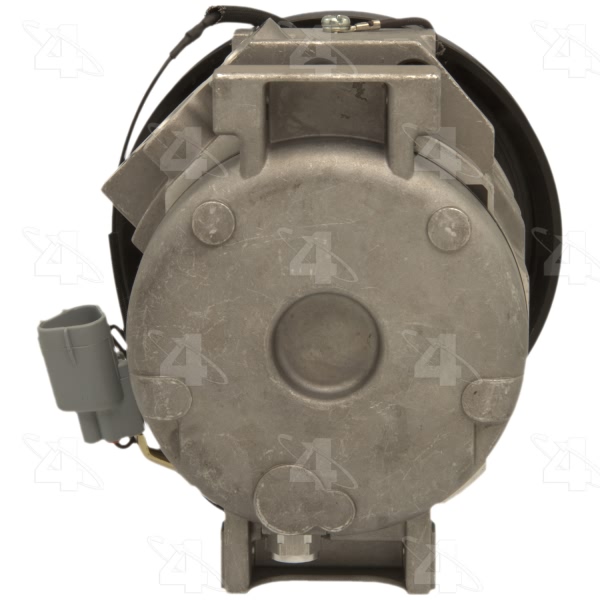

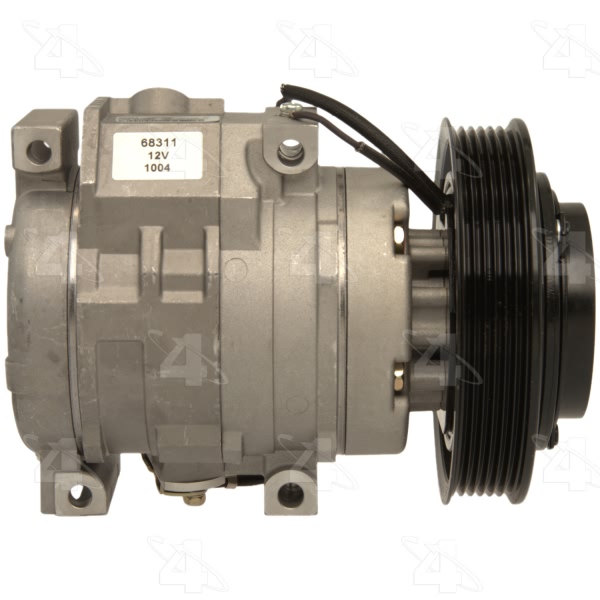

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.375 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10S15L |

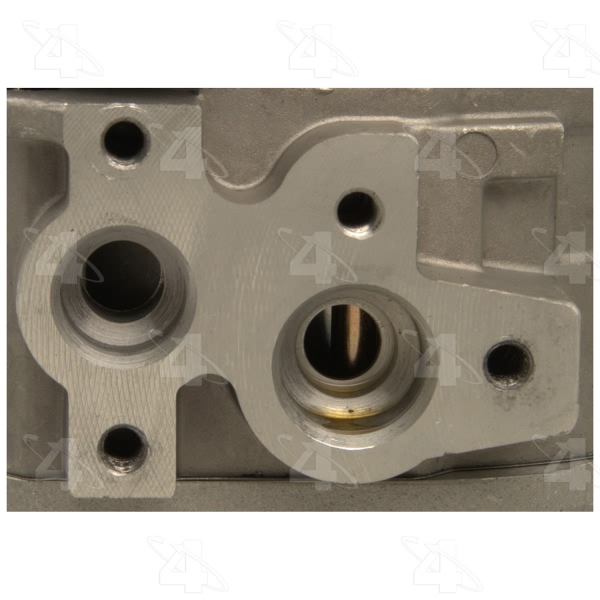

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.046875 |
Mount Distance MM | 52.070 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |

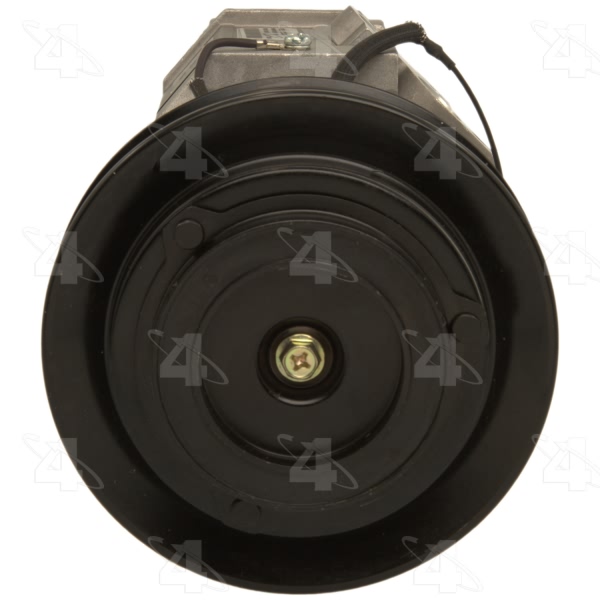

Pulley Belt Type | Serpentine |
Pulley Diameter MM | 136.525 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.375 |
Pulley Outside Diameter | 5.375 |
Pulley Ridge Diameter | 5.375 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Speed Sensor |

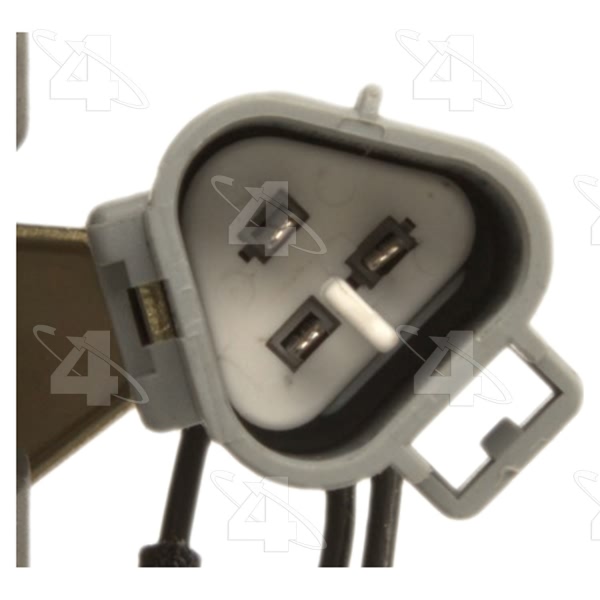

Terminal Type | Pin |
UPC | 096361683112 |
Year Make Model | Trim | Engine |
---|---|---|
2000-2005 Toyota Celica | All Trims | All Engines |
