Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68303 |
Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.625 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10p13C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.6875 |
Mount Distance MM | 42.672 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24613] / Green O-Ring |
O-Ring A Quantity | 4 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 142.748 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.625 |
Pulley Outside Diameter | 5.625 |
Pulley Ridge Diameter | 5.625 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

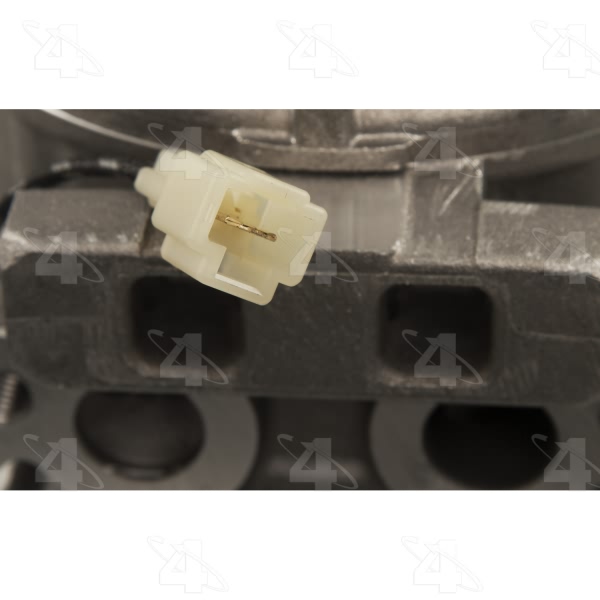

Terminal Type | Spade |
UPC | 096361683037 |
Year Make Model | Trim | Engine |
---|---|---|
1987-1989 Chrysler Conquest | All Trims | All Engines |
1987-1989 Dodge Colt | All Trims | 4 Cyl 1.5L |
1985-1986 Dodge Conquest | All Trims | 4 Cyl 2.6L |
1987-1988 Mitsubishi Mirage | All Trims | 4 Cyl 1.5L |
1985-1989 Mitsubishi Starion | All Trims | 4 Cyl 2.6L |
1985-1989 Plymouth Colt | All Trims | 4 Cyl 1.5L |
1985-1986 Plymouth Conquest | All Trims | All Engines |
1984 Toyota Pickup | All Trims | 4 Cyl 2.4L |
1985-1987 Toyota Pickup | All Trims | All Engines |
1988 Toyota Pickup | All Trims | 4 Cyl 2.4L |
