Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68280 |

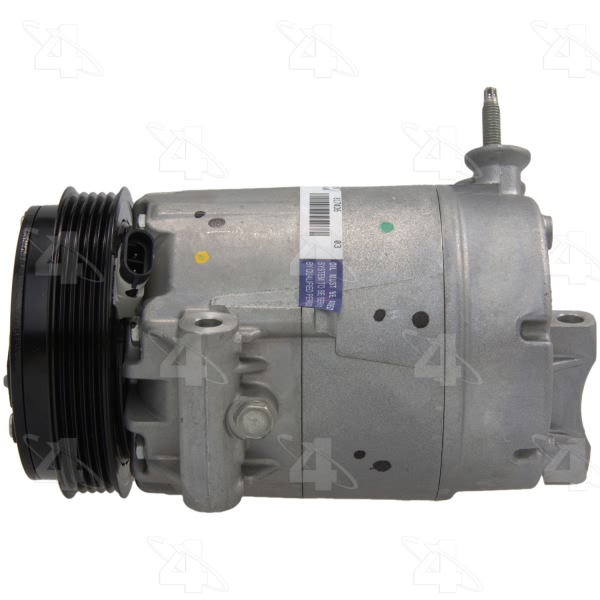

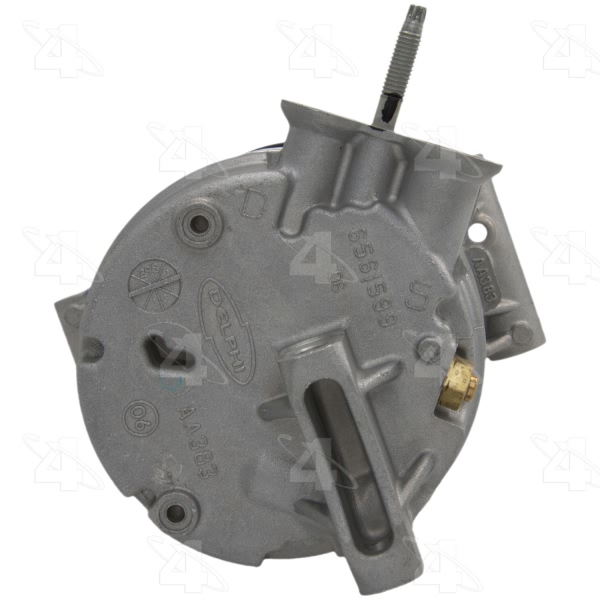

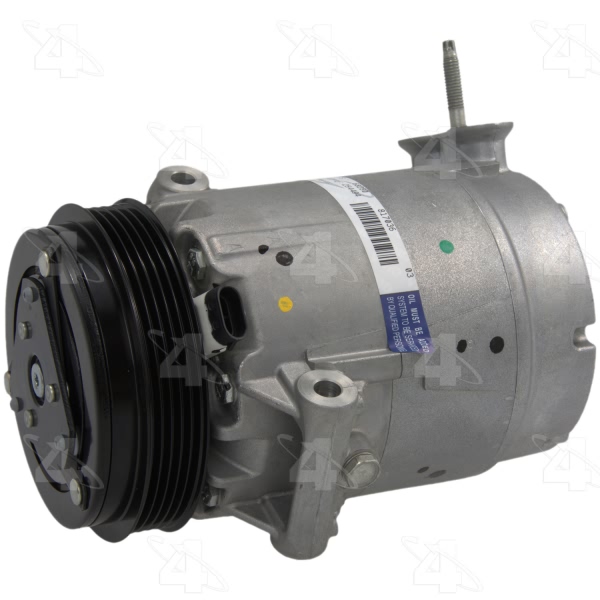

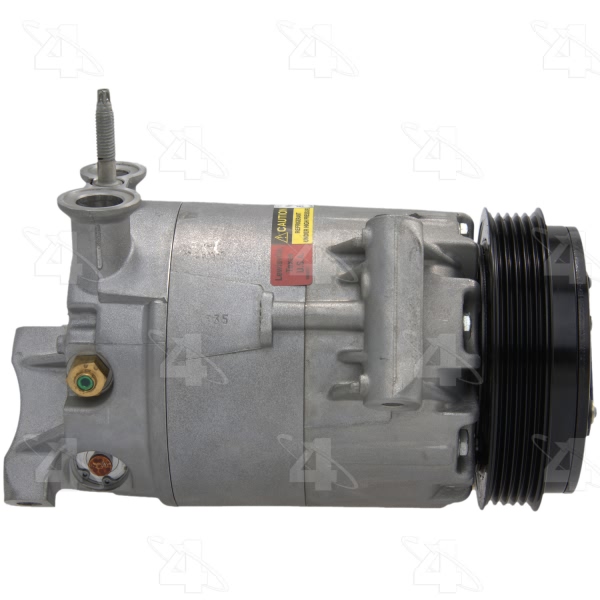

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |

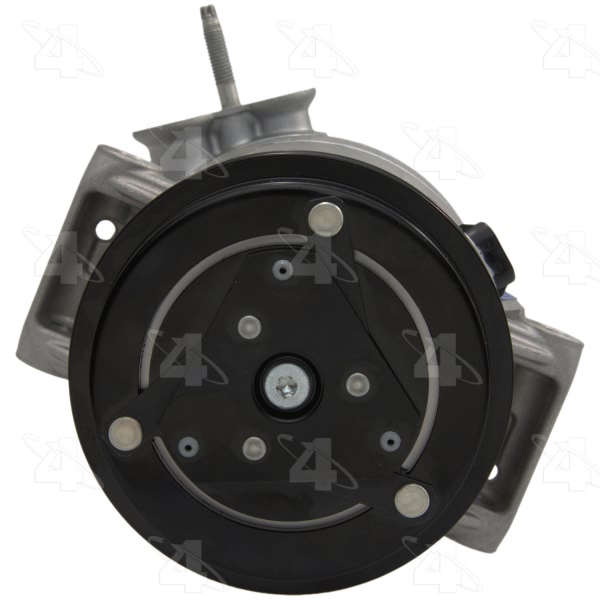

Clutch Maximum Diameter | 4.620 |
Coil Clock Position | 5 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | CVC |

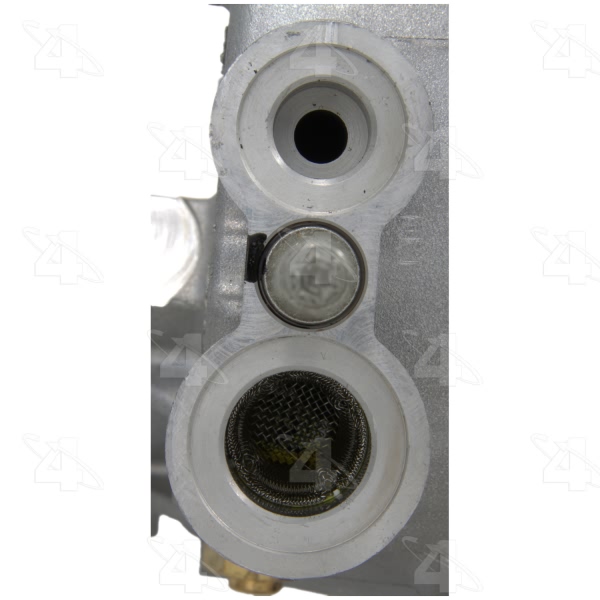

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.203125 |
Mount Distance MM | 30.480 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 142.875 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 4.620 |
Pulley Outside Diameter | 4.620 |
Pulley Ridge Diameter | 4.620 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |

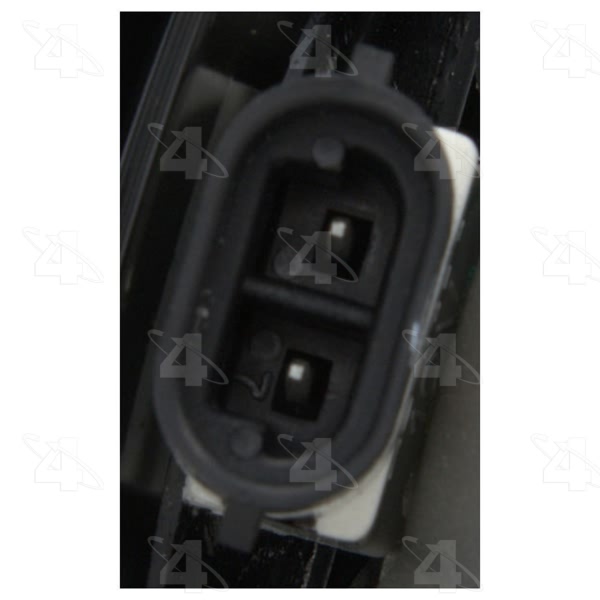

Terminal Type | 8mm Pin Connector |
UPC | 096361682801 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2005 Chevrolet Classic | All Trims | All Engines |
2004-2006 Chevrolet Malibu | All Trims | 4 Cyl 2.2L |
2004-2005 Chevrolet Vectra | All Trims | 4 Cyl 2.2L |
2002-2004 Oldsmobile Alero | All Trims | 4 Cyl 2.2L |
2006 Pontiac G6 | All Trims | 4 Cyl 2.4L |
2002-2005 Pontiac Grand Am | All Trims | 4 Cyl 2.2L |
