Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68231 |
Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.500 |
Coil Clock Position | 9 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | R4 Lightweight |
Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.203125 |
Mount Distance MM | 30.480 |
Mounting Hardware | Not Included |
Mounting Type | Case Mount |
New or Reman | New |
O-Ring A Number/Desc | [24359] / Short Sealing Washer Pilot |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24360] / Long Sealing Washer Pilot |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24356] / Red Sealing Washer |
O-Ring C Quantity | 2 |
O-Ring D Number/Desc | [24357] / Green Sealing Washer |
O-Ring D Quantity | 1 |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 139.700 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.500 |
Pulley Outside Diameter | 5.500 |
Pulley Ridge Diameter | 5.500 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Switch Included | High Pressure |

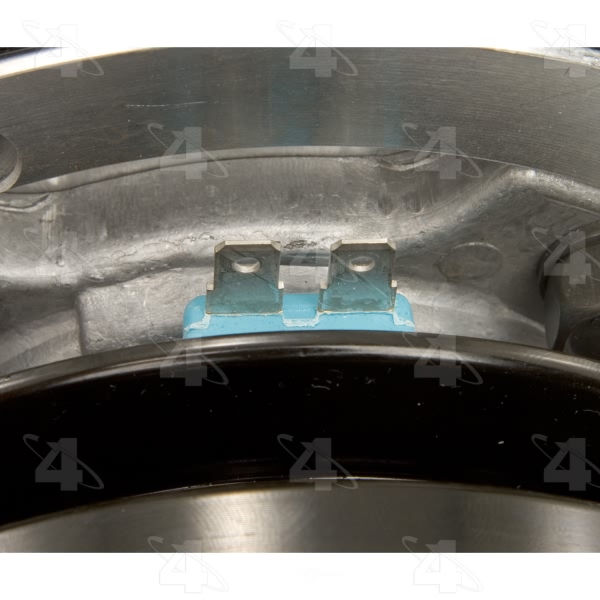

Terminal Type | Spade |
UPC | 096361682313 |
Year Make Model | Trim | Engine |
---|---|---|
1985 Chevrolet Camaro | All Trims | 8 Cyl 5.0L |
1987 Chevrolet Camaro | All Trims | 8 Cyl 5.0L |
1987-1988 Chevrolet Monte Carlo | All Trims | 8 Cyl 5.0L |
1987 GMC Caballero | All Trims | 6 Cyl 4.3L |
1987 GMC Caballero | All Trims | 8 Cyl 5.0L |
1987 Pontiac Firebird | All Trims | 6 Cyl 2.8L |
1987 Pontiac Firebird | All Trims | 8 Cyl 5.0L |
1987 Pontiac Firebird | All Trims | 8 Cyl 5.7L |
1987 Pontiac Grand Prix | All Trims | 6 Cyl 4.3L |
1987 Pontiac Grand Prix | All Trims | 8 Cyl 5.0L |
