Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68229 |

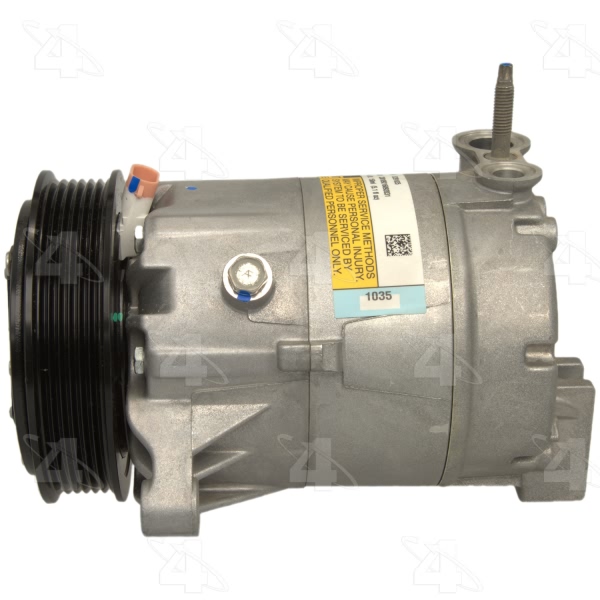

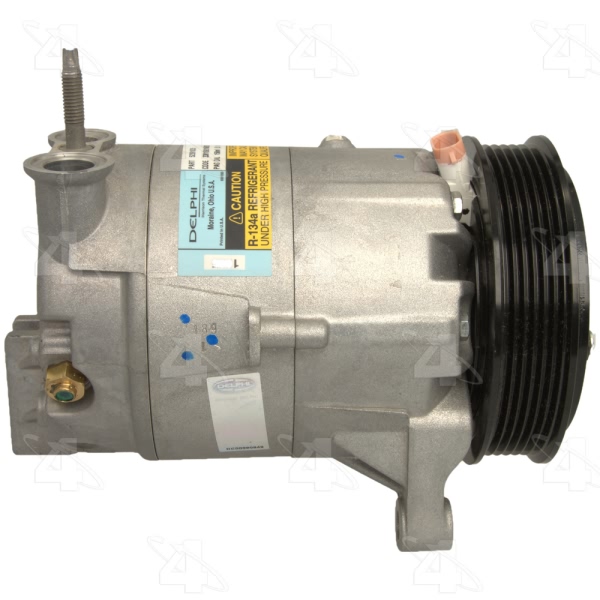

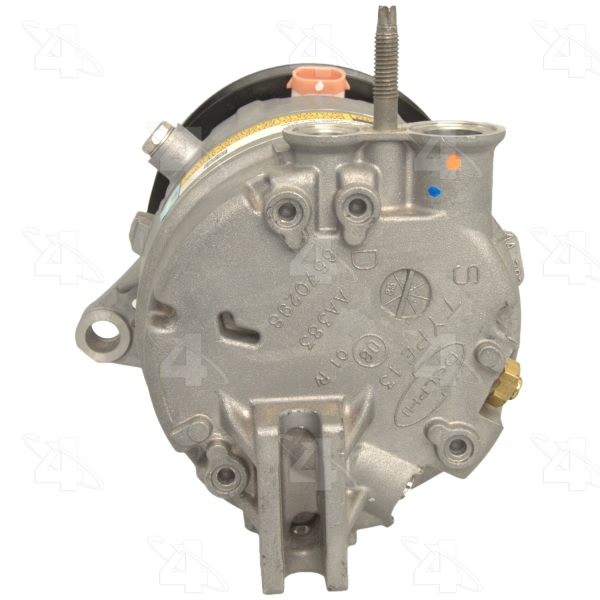

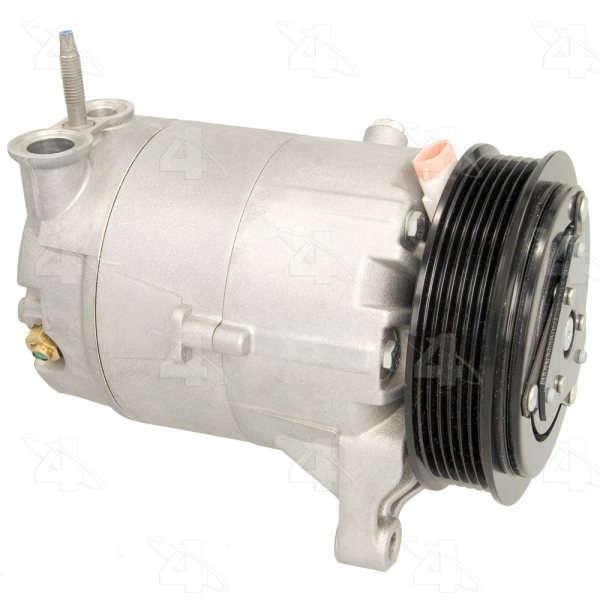

Part Description | A C Compressor With Clutch |

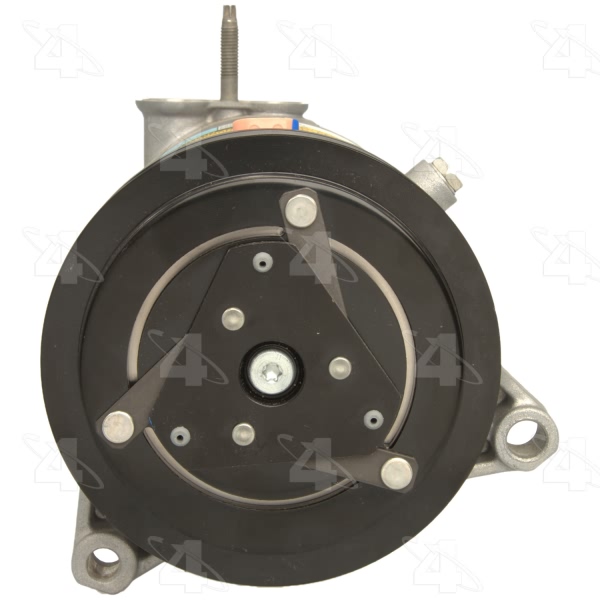

Clutch Included | Yes |
Clutch Maximum Diameter | 5.000 |
Coil Clock Position | 3 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | CVC |

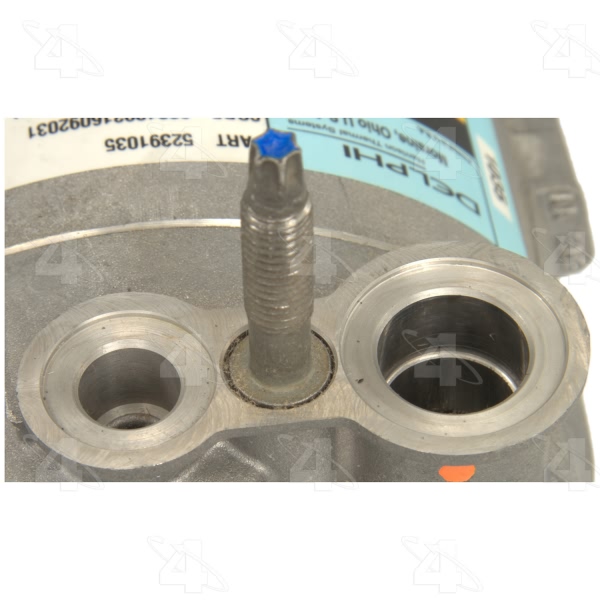

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 0.625 |
Mount Distance MM | 16.000 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 127.000 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.000 |
Pulley Outside Diameter | 5.000 |
Pulley Ridge Diameter | 5.000 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Terminal Type | 8mm Pin Connector |
UPC | 096361682290 |
Year Make Model | Trim | Engine |
---|---|---|
2008-2009 Buick Allure | All Trims | 8 Cyl 5.3L |
2008-2009 Buick LaCrosse | All Trims | 8 Cyl 5.3L |
2006-2009 Chevrolet Impala | All Trims | 8 Cyl 5.3L |
2006-2007 Chevrolet Monte Carlo | All Trims | 8 Cyl 5.3L |
2005-2008 Pontiac Grand Prix | All Trims | 8 Cyl 5.3L |
