Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 68192 |

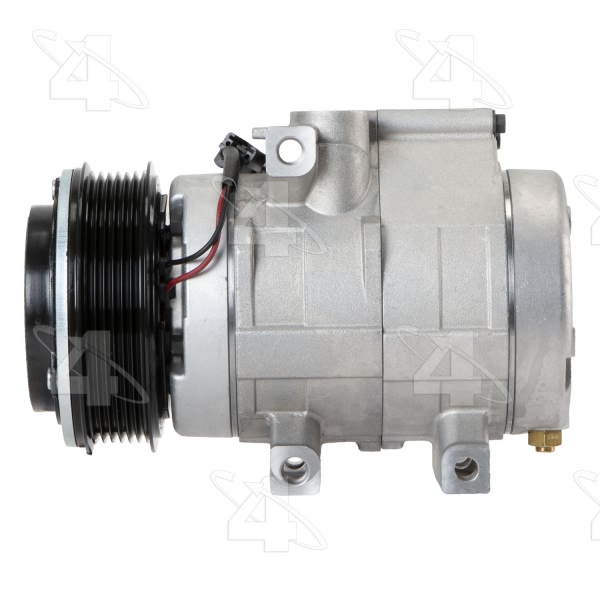

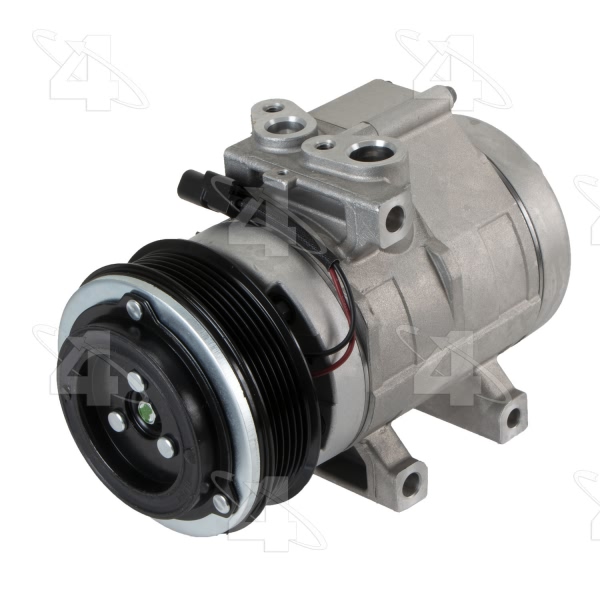

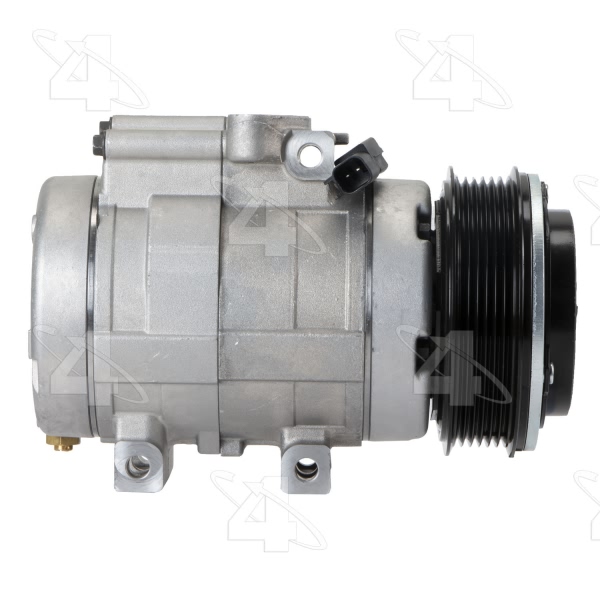

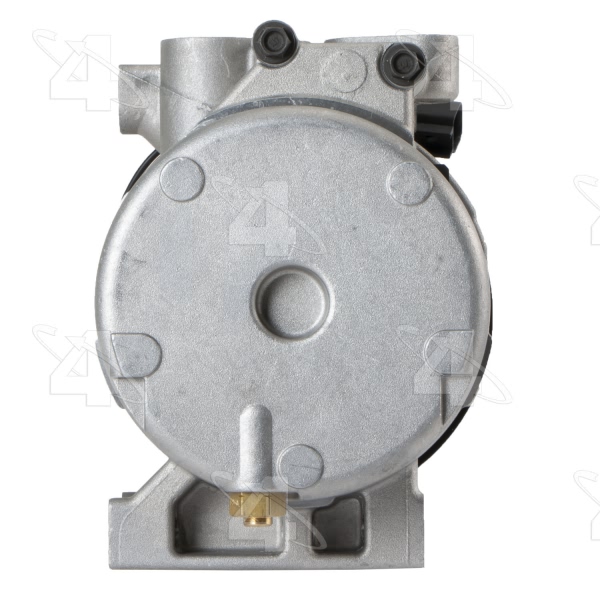

Part Description | A C Compressor With Clutch |

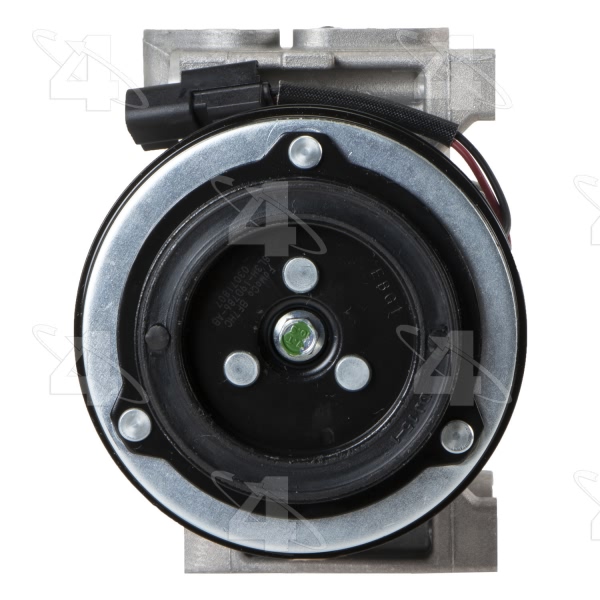

Clutch Included | Yes |
Clutch Maximum Diameter | 4.500 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | FS20 |

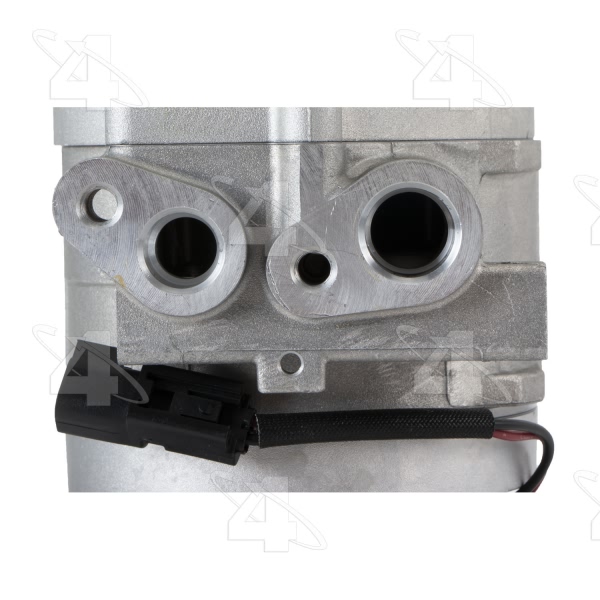

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.078125 |
Mount Distance MM | 52.832 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24241] / Sealing Washer Kit |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24243] / Tear Drop Sealing Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 114.300 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.500 |
Pulley Outside Diameter | 4.500 |
Pulley Ridge Diameter | 4.500 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361681927 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2014 Ford Expedition | All Trims | All Engines |
2007-2008 Ford F-150 | All Trims | 8 Cyl 4.6L |
2007-2008 Ford F-150 | All Trims | 8 Cyl 5.4L |
2009 Ford F-150 | All Trims | All Engines |
2010 Ford F-150 | All Trims | 8 Cyl 4.6L |
2010-2014 Ford F-150 | All Trims | 8 Cyl 6.2L |
2007-2009 Ford F-250 | All Trims | All Engines |
2007-2008 Ford F-250 Super Duty | All Trims | 10 Cyl 6.8L |
2007-2009 Ford F-250 Super Duty | All Trims | 8 Cyl 5.4L |
2008-2010 Ford F-250 Super Duty | All Trims | 8 Cyl 6.4L |
