Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58994 |

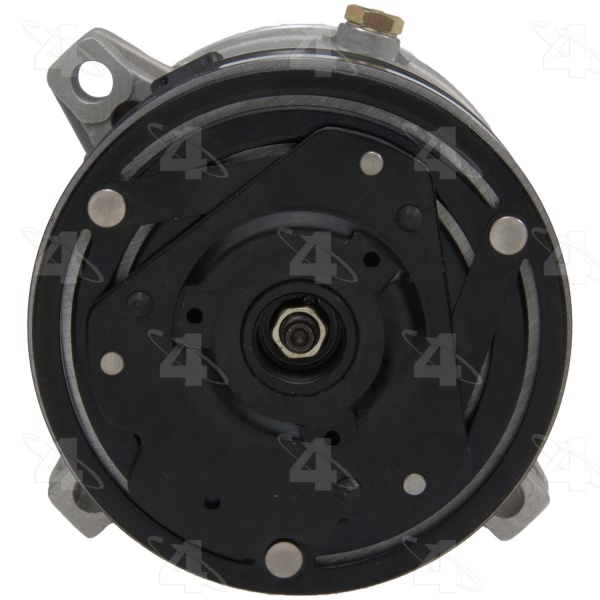

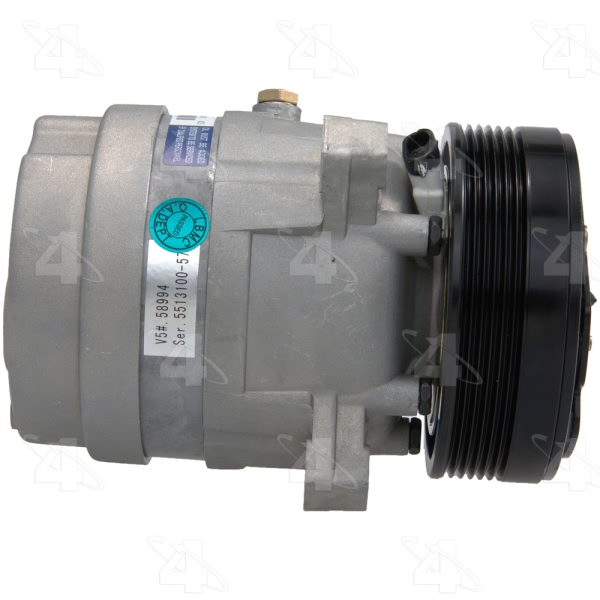

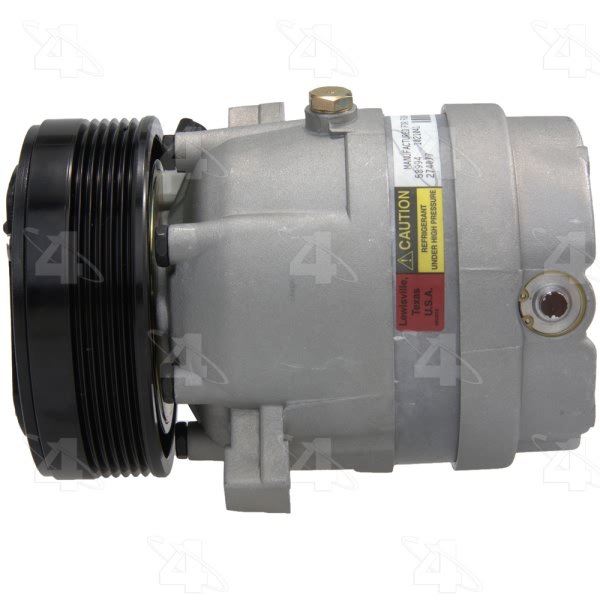

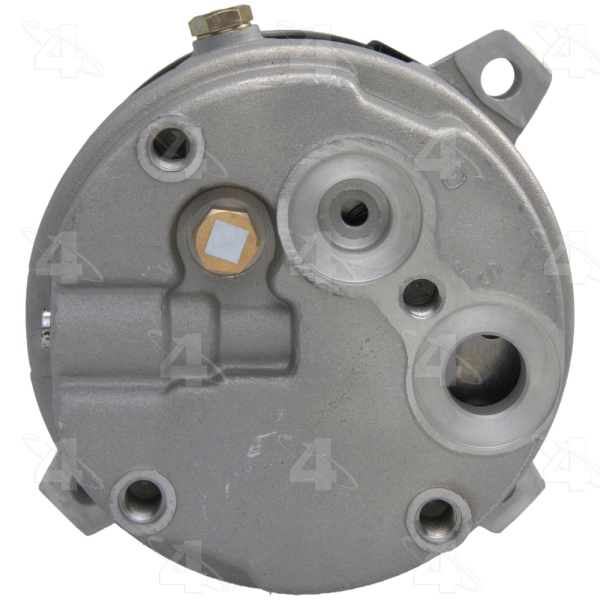

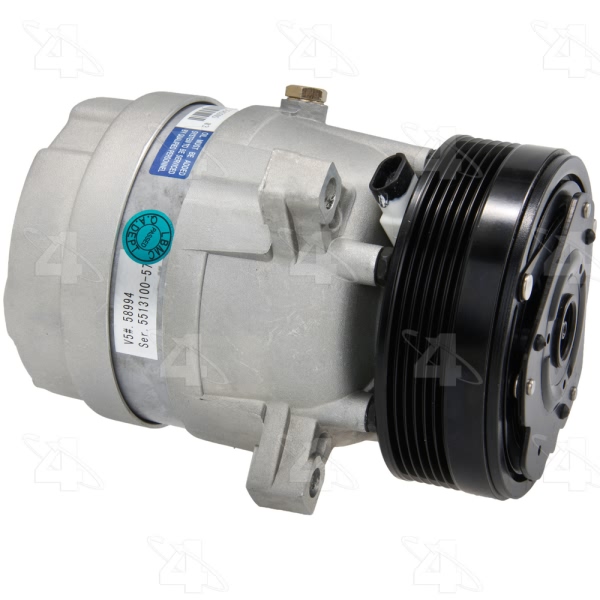

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.125 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | V5 |

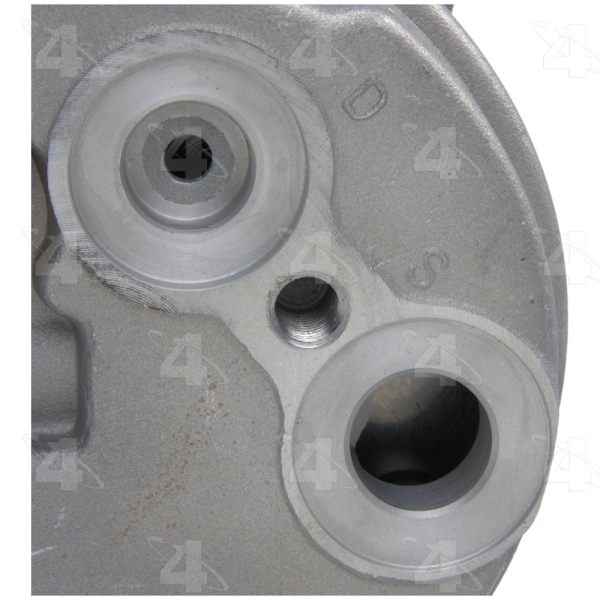

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.500 |
Mount Distance MM | 38.100 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24355] / Sealing Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24354] / Sealing Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 130.048 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.125 |
Pulley Outside Diameter | 5.125 |
Pulley Ridge Diameter | 5.125 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |

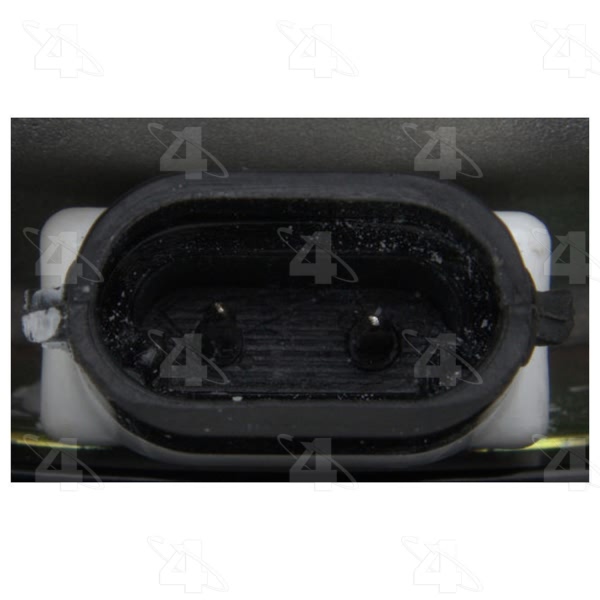

Terminal Type | 8mm Pin Connector |
UPC | 096361589940 |
Year Make Model | Trim | Engine |
---|---|---|
1996-2005 Buick LeSabre | All Trims | 6 Cyl 3.8L |
1996-2005 Buick Park Avenue | All Trims | All Engines |
1996-1999 Buick Riviera | All Trims | All Engines |
1996-1999 Oldsmobile 88 | All Trims | All Engines |
1996 Oldsmobile 98 | All Trims | All Engines |
1996-1999 Oldsmobile LSS | All Trims | All Engines |
1997-1998 Oldsmobile Regency | All Trims | All Engines |
1996-2003 Pontiac Bonneville | All Trims | All Engines |
2004-2005 Pontiac Bonneville | All Trims | 6 Cyl 3.8L |
