Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58987 |
Part Description | A C Compressor With Clutch |
Belt Width IN | 0.875 |
Belt Width MM | 22.225 |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.703125 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | V5 |

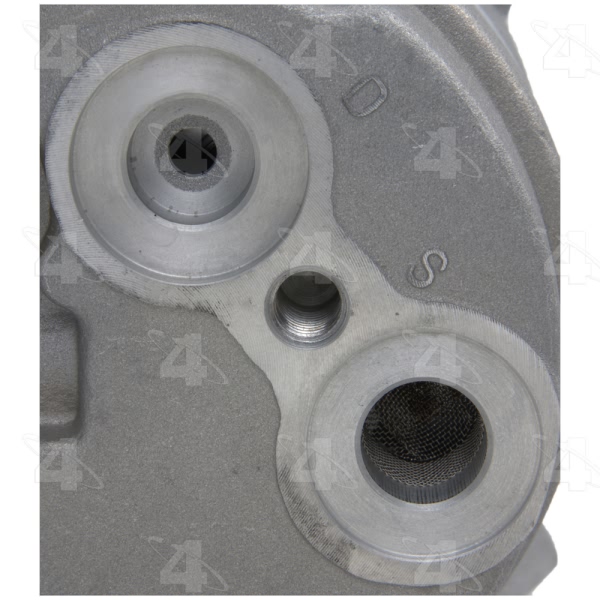

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.15625 |
Mount Distance MM | 29.210 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 119.380 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.703125 |
Pulley Outside Diameter | 4.703125 |
Pulley Ridge Diameter | 4.703125 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |

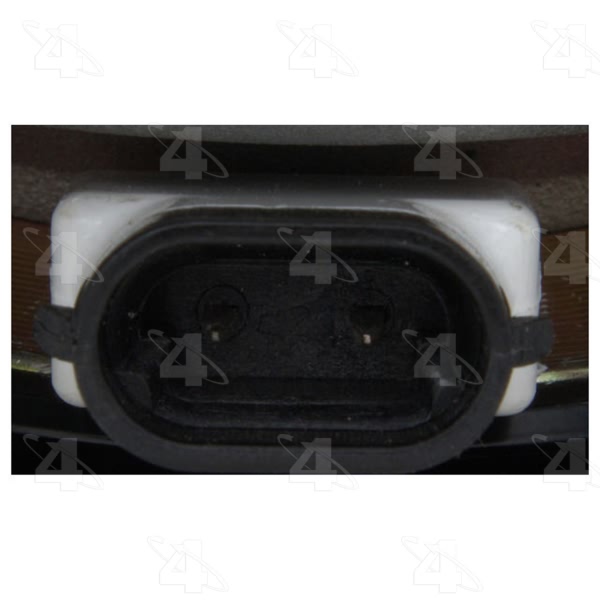

Terminal Type | 8mm Pin Connector |
UPC | 096361589872 |
Year Make Model | Trim | Engine |
---|---|---|
1996-2004 Buick Regal | All Trims | 6 Cyl 3.8L |
2000-2003 Chevrolet Impala | All Trims | 6 Cyl 3.8L |
1998-1999 Chevrolet Lumina | All Trims | 6 Cyl 3.8L |
1998-2003 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.8L |
1998 Oldsmobile Intrigue | All Trims | All Engines |
1999 Oldsmobile Intrigue | All Trims | 6 Cyl 3.8L |
1997-2003 Pontiac Grand Prix | All Trims | 6 Cyl 3.8L |
