Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58976 |

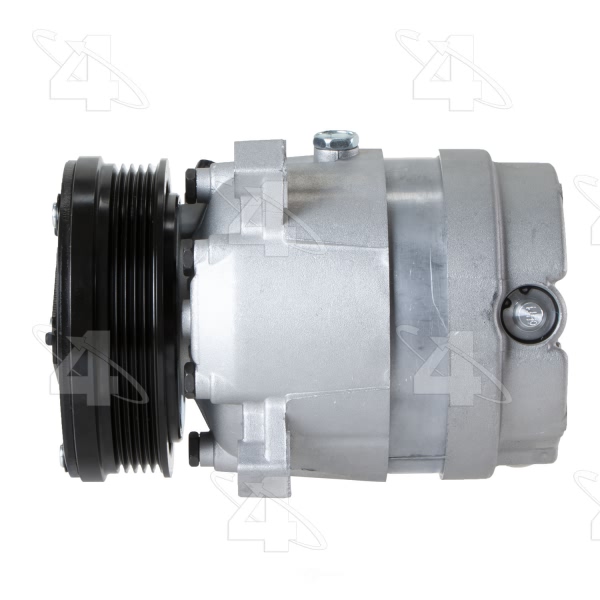

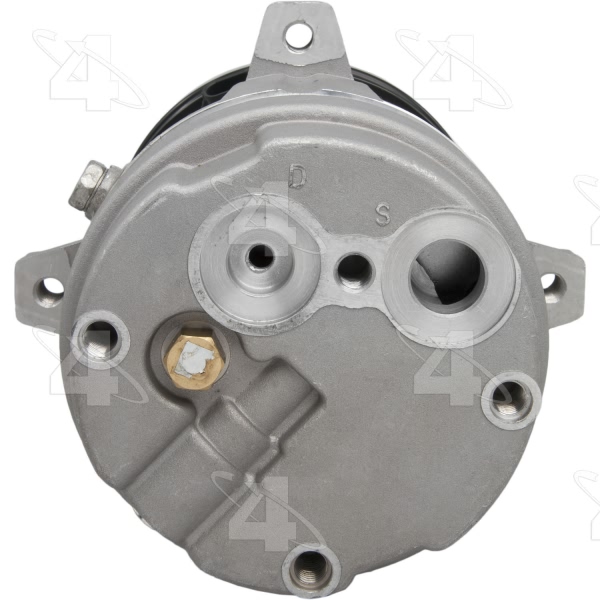

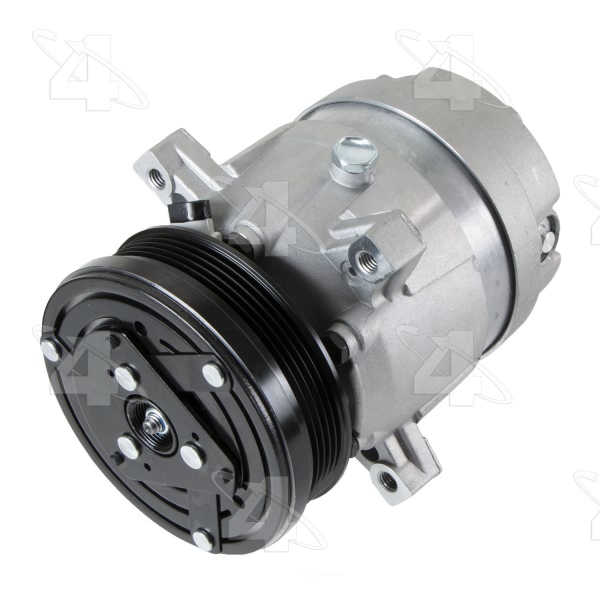

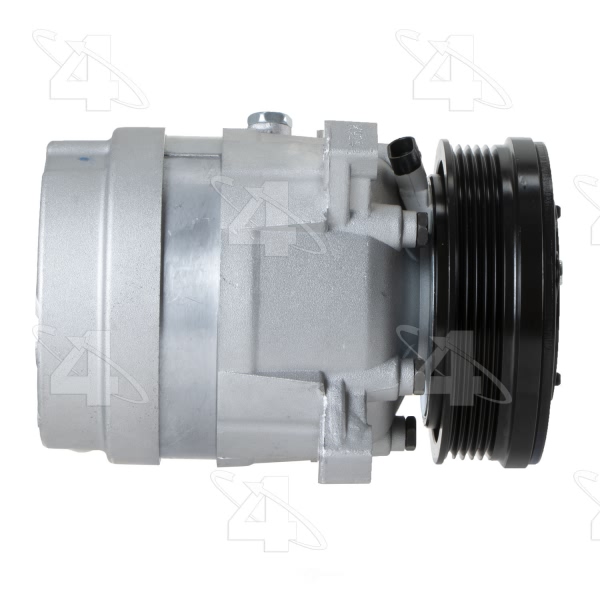

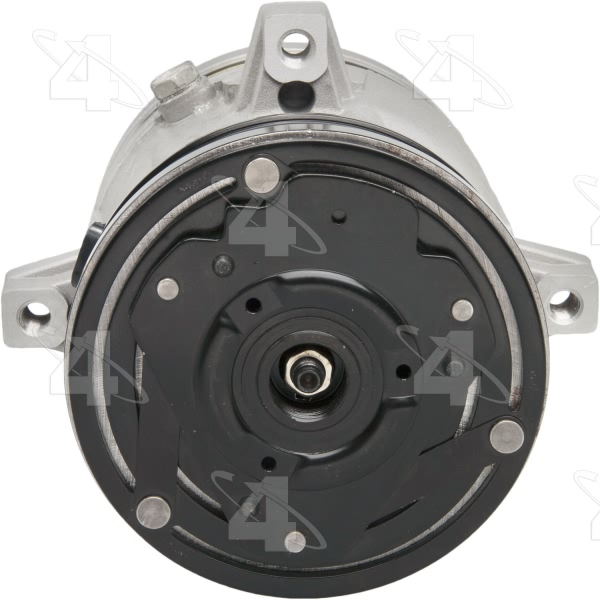

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.000 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | V5 |

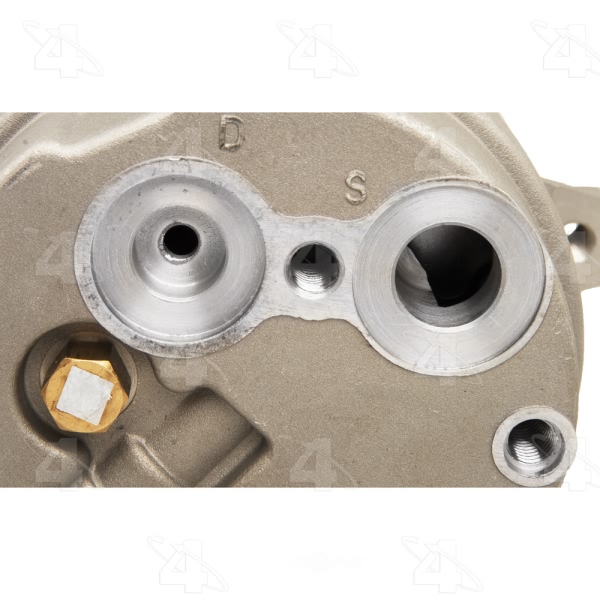

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.296875 |
Mount Distance MM | 33.020 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24355] / Sealing Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24354] / Sealing Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 127.000 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 5.000 |
Pulley Outside Diameter | 5.000 |
Pulley Ridge Diameter | 5.000 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |

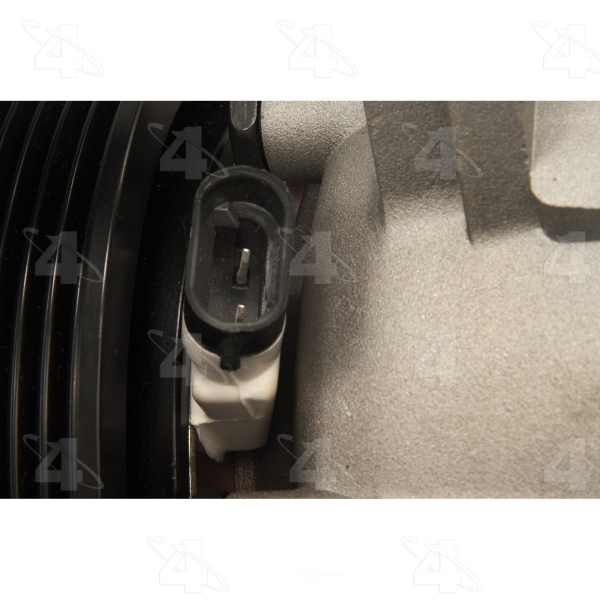

Terminal Type | 8mm Pin Connector |
UPC | 096361589766 |
Year Make Model | Trim | Engine |
---|---|---|
1992-1993 Buick Skylark | All Trims | 4 Cyl 2.3L |
1992-1993 Chevrolet Beretta | All Trims | 4 Cyl 2.2L |
1992-1993 Chevrolet Beretta | All Trims | 4 Cyl 2.3L |
1992-1993 Chevrolet Cavalier | All Trims | 4 Cyl 2.2L |
1992-1993 Chevrolet Corsica | All Trims | 4 Cyl 2.2L |
1992-1993 Oldsmobile Achieva | All Trims | 4 Cyl 2.3L |
1992-1993 Pontiac Grand Am | All Trims | 4 Cyl 2.3L |
