Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58973 |
Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.625 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | V5 |

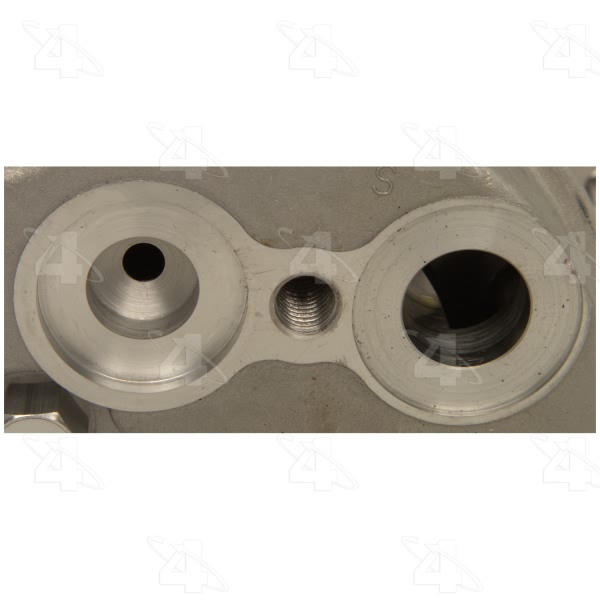

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.15625 |
Mount Distance MM | 29.210 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24359] / Short Sealing Washer Pilot |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24360] / Long Sealing Washer Pilot |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24356] / Red Sealing Washer |
O-Ring C Quantity | 2 |
O-Ring D Number/Desc | [24357] / Green Sealing Washer |
O-Ring D Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 117.348 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.625 |
Pulley Outside Diameter | 4.625 |
Pulley Ridge Diameter | 4.625 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |

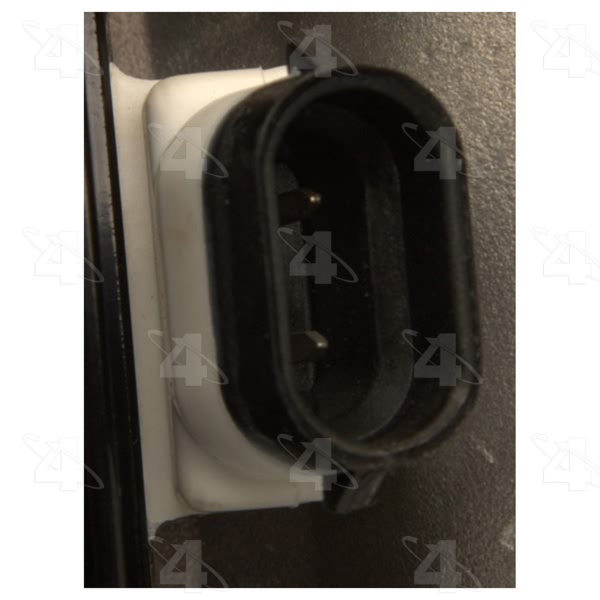

Terminal Type | 8mm Pin Connector |
UPC | 096361589735 |
Year Make Model | Trim | Engine |
---|---|---|
1993-1994 Chevrolet Cavalier | All Trims | 6 Cyl 3.1L |
1994 Pontiac Sunbird | All Trims | 6 Cyl 3.1L |
