Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58963 |

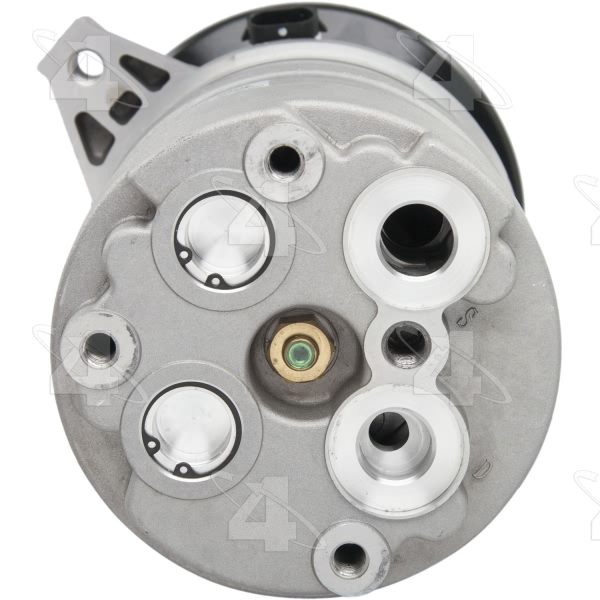

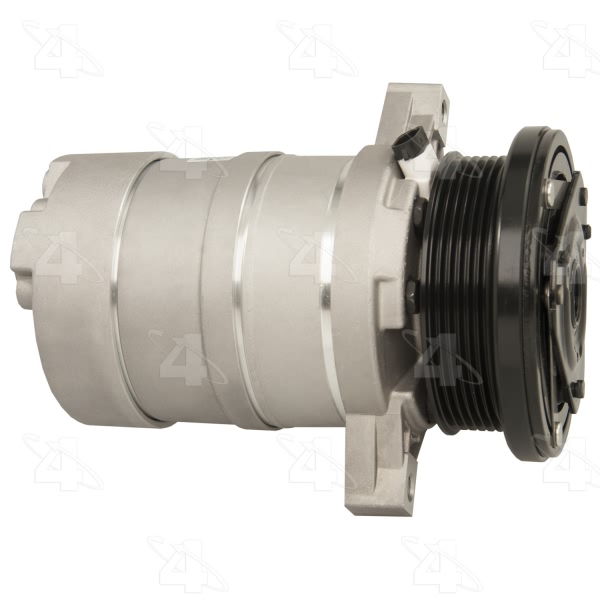

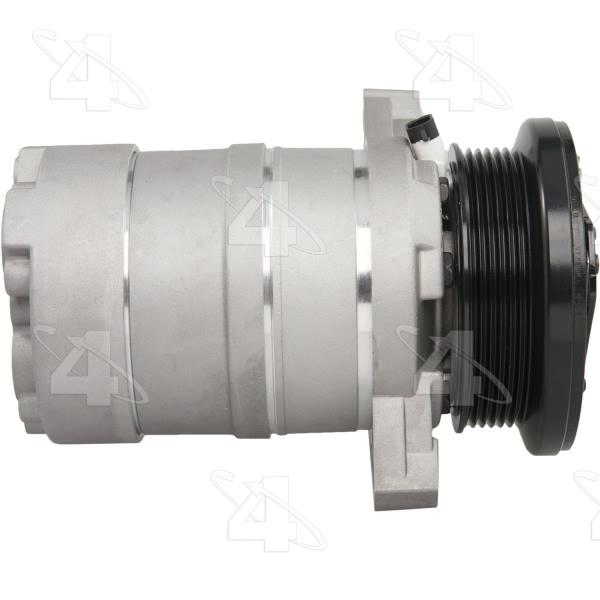

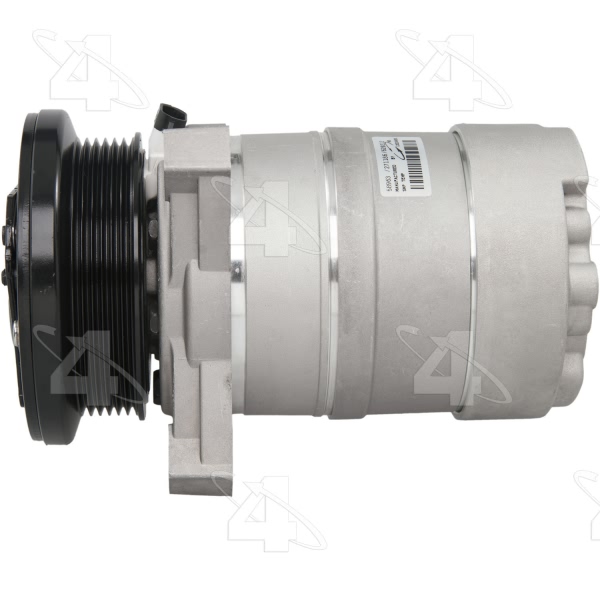

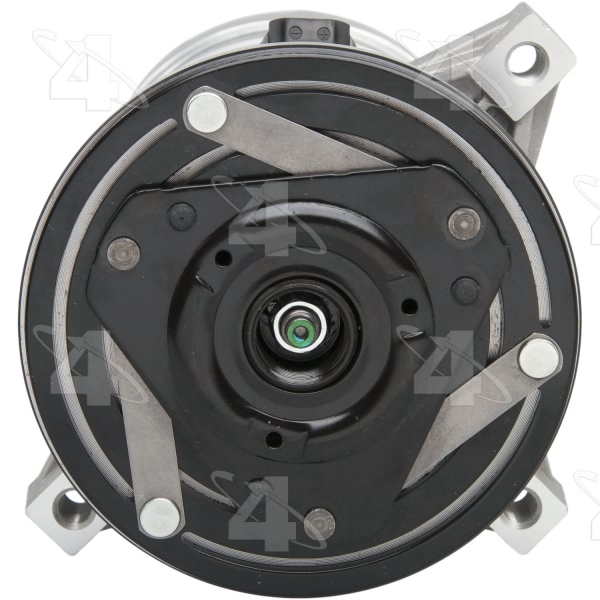

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.250 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | DA6, HR6, HE6 |
Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 0.59375 |
Mount Distance MM | 15.240 |
Mounting Hardware | Not Included |
Mounting Type | Type I Middle w/ Threads |
New or Reman | New |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 107.950 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |

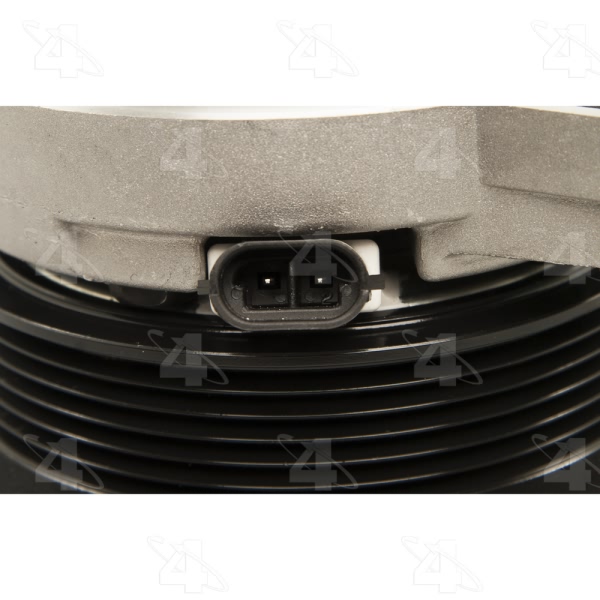

Terminal Type | 8mm Pin Connector |
UPC | 096361589636 |
Year Make Model | Trim | Engine |
---|---|---|
1989-1992 Cadillac Allante | All Trims | All Engines |
1989-1991 Cadillac Commercial Chassis | All Trims | All Engines |
1992-1993 Cadillac Commercial Chassis | Base | 8 Cyl 4.9L |
1989-1993 Cadillac DeVille | All Trims | All Engines |
1989-1992 Cadillac Eldorado | All Trims | All Engines |
1989 Cadillac Fleetwood | 60 Special | All Engines |
1989 Cadillac Fleetwood | Base | All Engines |
1989 Cadillac Fleetwood | d'Elegance | All Engines |
1989-1992 Cadillac Fleetwood | All Trims | All Engines |
1993 Cadillac Fleetwood | Base | All Engines |
