Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58954 |

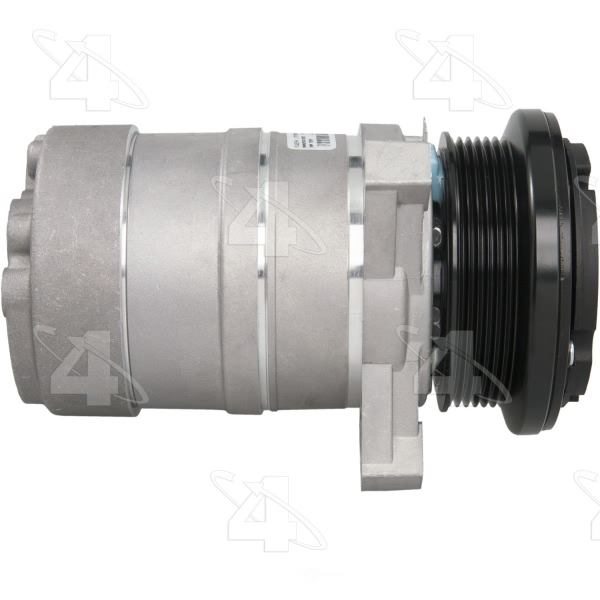

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |

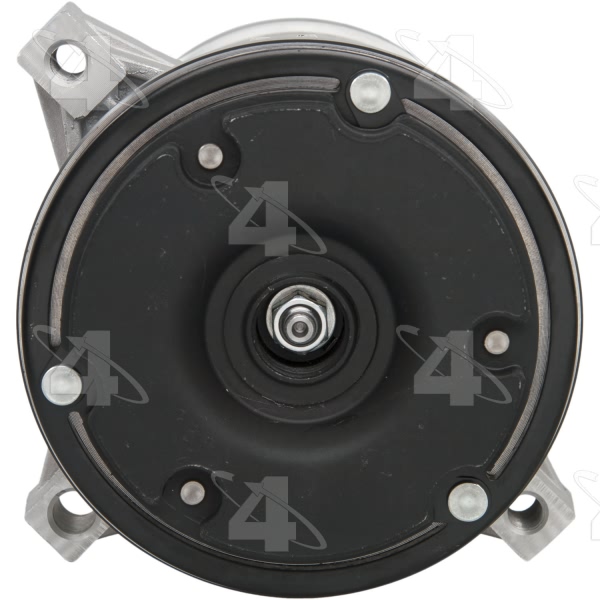

Clutch Maximum Diameter | 4.250 |
Coil Clock Position | 10 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | HD6 |
Distance From Clutch To Mounting Flange | 0.59375 |
Mounting Hardware | Not Included |
Mounting Type | Type VII (Middle Ear Not Threaded) |
New or Reman | New |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 107.950 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R134a |
Suc Prt Typ Note | R134A - V |

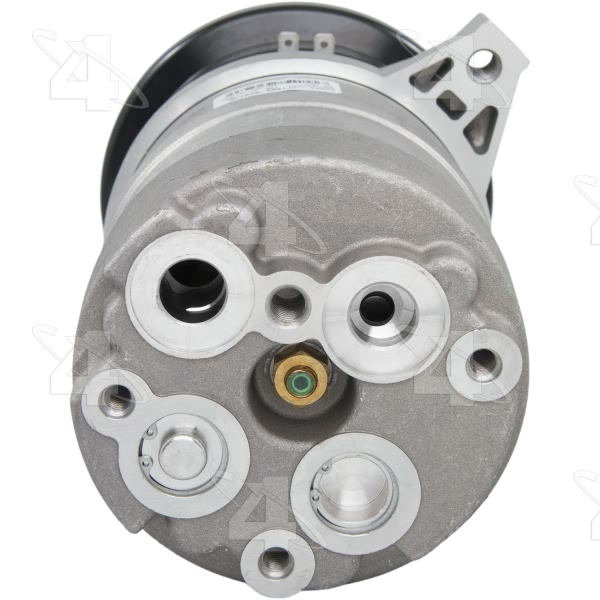

Suction Port Type | Sealing Washer |
Switch Included | High Pressure |

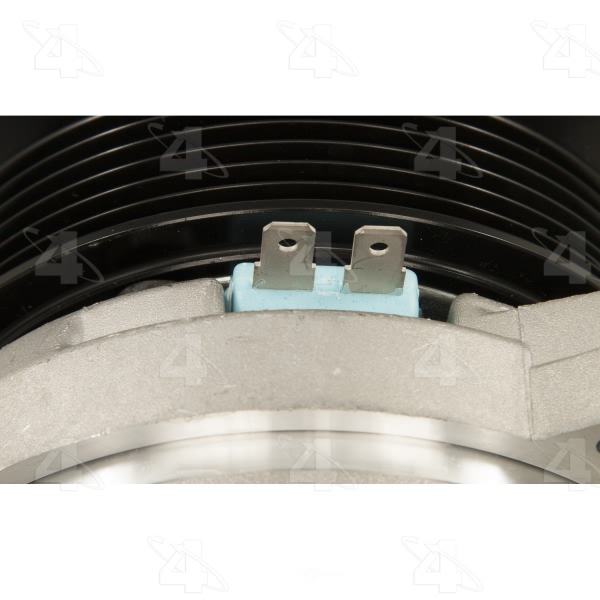

Terminal Type | Spade |
UPC | 096361589544 |
Year Make Model | Trim | Engine |
---|---|---|
1995 Chevrolet G10 | All Trims | All Engines |
1995 Chevrolet G20 | All Trims | All Engines |
1995-1996 Chevrolet G30 | All Trims | All Engines |
1995 GMC G1500 | All Trims | All Engines |
1995 GMC G2500 | All Trims | All Engines |
1995 GMC G3500 | All Trims | All Engines |
1996 GMC G3500 | All Trims | 8 Cyl 5.7L |
1996 GMC G3500 | All Trims | 8 Cyl 6.5L |
1996 GMC G3500 | All Trims | 8 Cyl 7.4L |
