Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58952 |
Part Description | A C Compressor With Clutch |
Belt Width IN | 0.875 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.000 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | HD6 |
Distance From Clutch To Mounting Flange | 0.59375 |
Mounting Hardware | Not Included |
Mounting Type | Type I, Metric Threads |
New or Reman | New |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 127.000 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.000 |
Pulley Outside Diameter | 5.000 |
Pulley Ridge Diameter | 5.000 |
Refrigerant Type | R134a |
Suc Prt Typ Note | R134A |

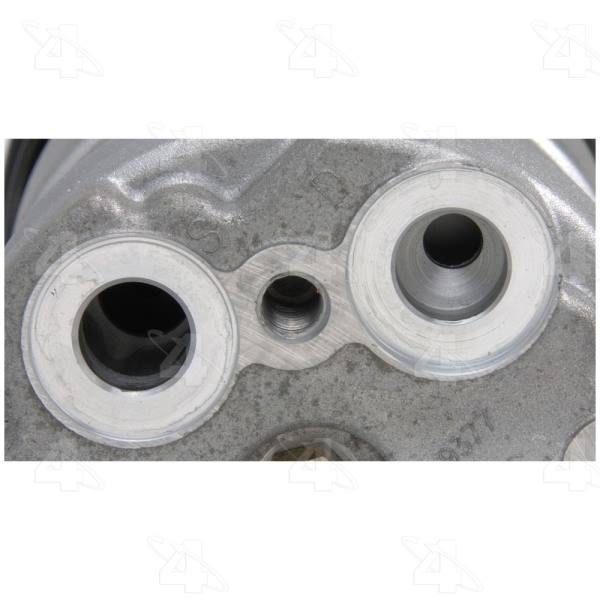

Suction Port Type | Sealing Washer |

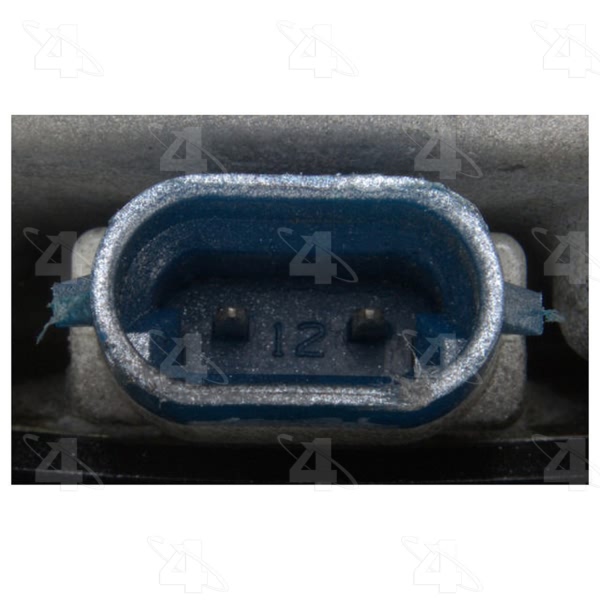

Terminal Type | 8mm Pin Connector |
UPC | 096361589520 |
Year Make Model | Trim | Engine |
---|---|---|
1994-1995 Cadillac DeVille | All Trims | 8 Cyl 4.9L |
