Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58950 |

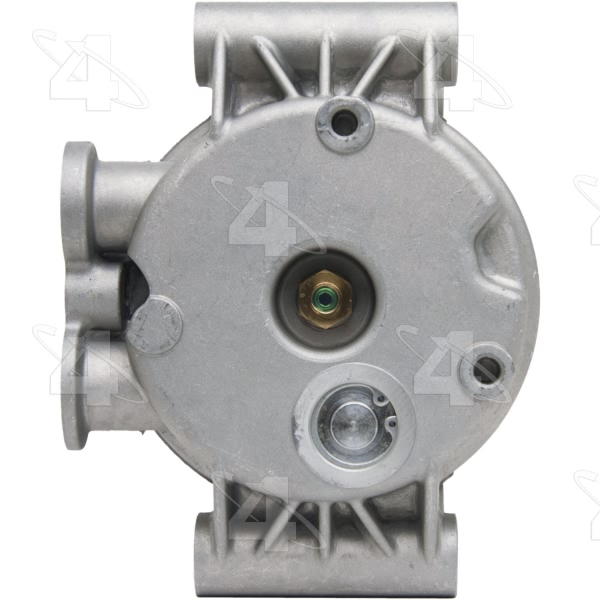

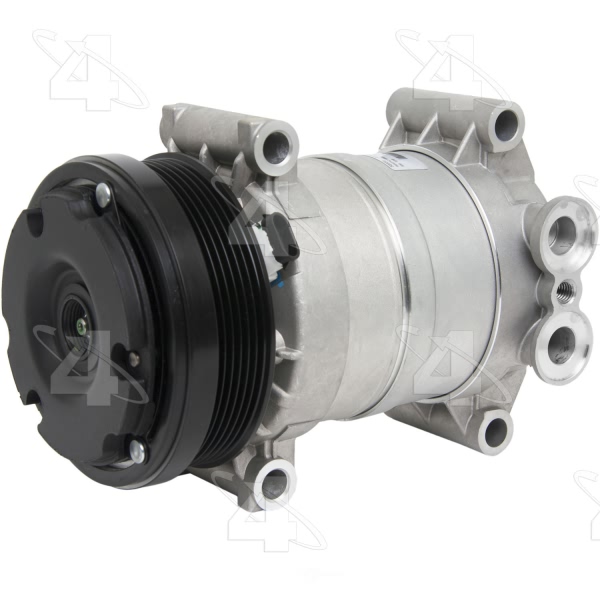

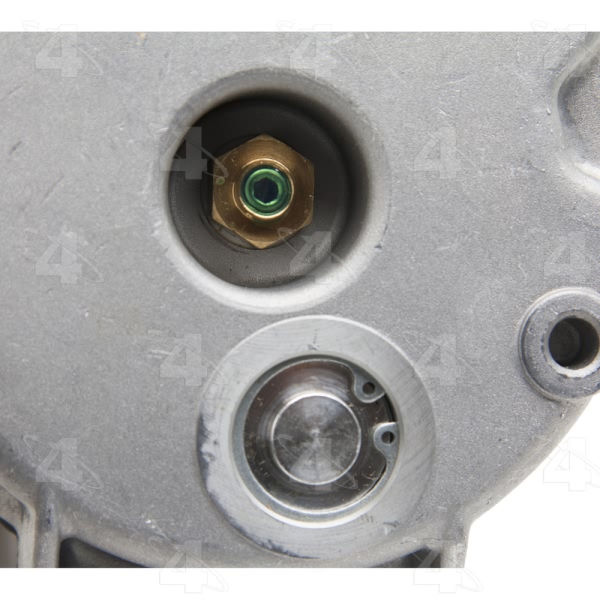

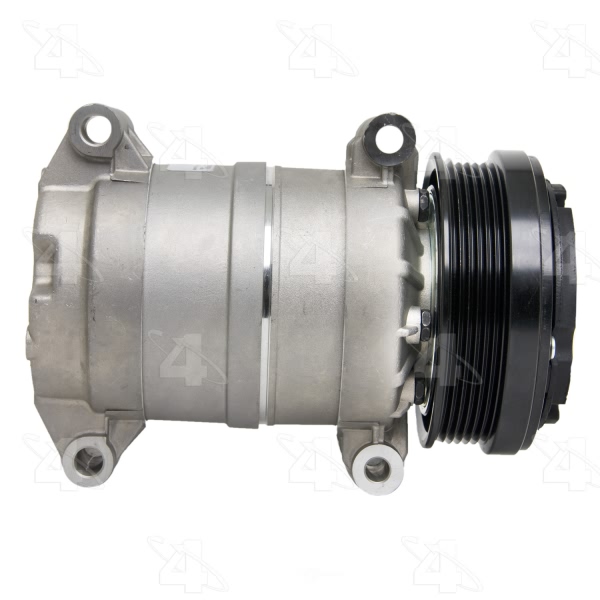

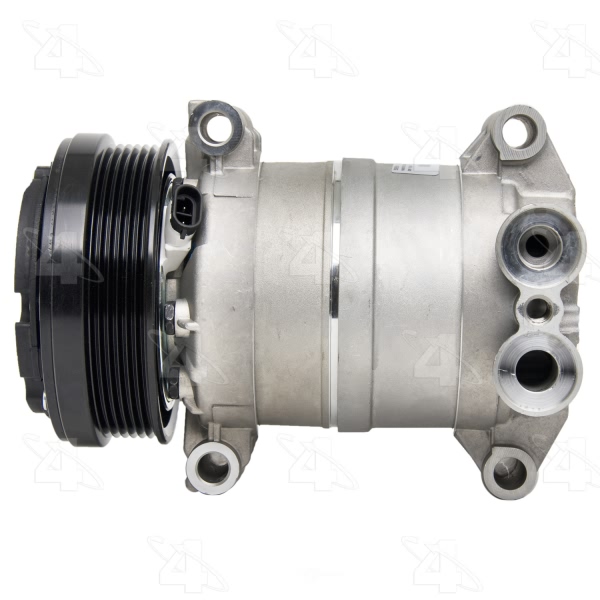

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.875 |
Belt Width MM | 22.225 |
Clutch Included | Yes |

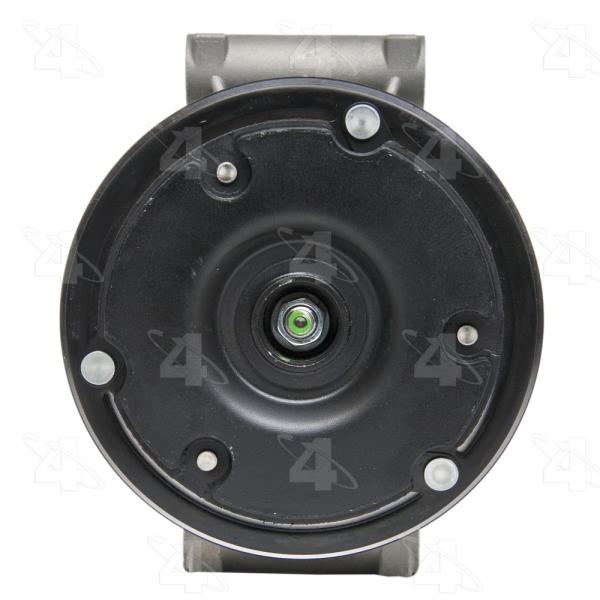

Clutch Maximum Diameter | 5.000 |
Coil Clock Position | 11 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | HT6 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
UPC | 096361589506 |
OE Part Number | 1136519 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 127.000 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.000 |
Pulley Outside Diameter | 5.000 |
Pulley Ridge Diameter | 5.000 |
Refrigerant Type | R134a |

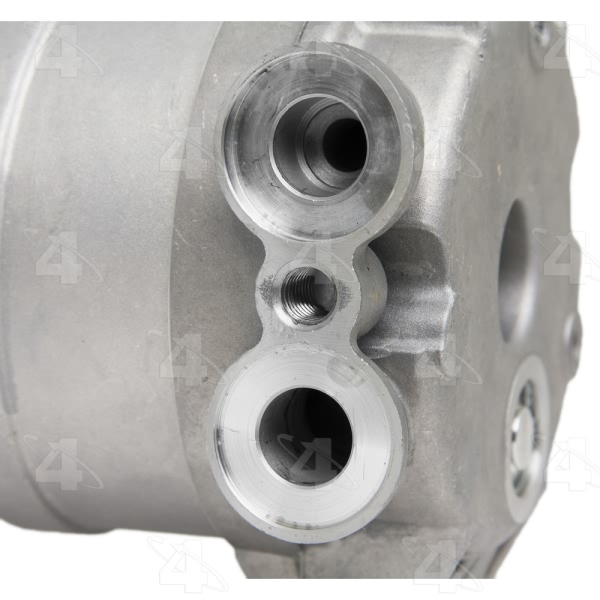

Suction Port Type | Sealing Washer |
Switch Included | High Pressure |

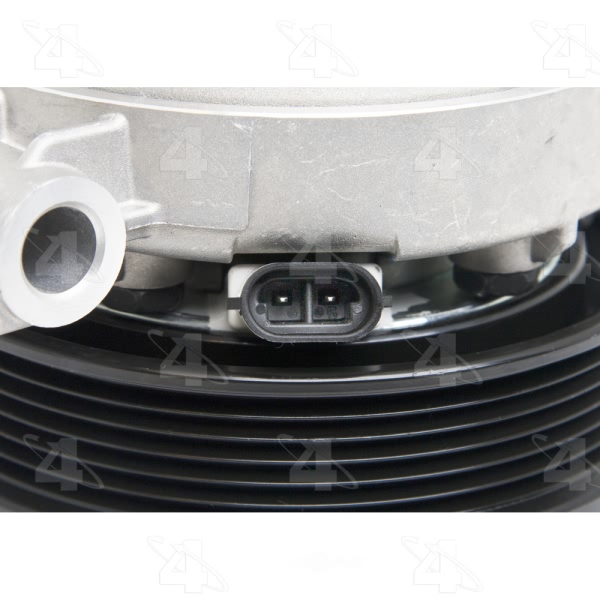

Terminal Type | 8mm Pin Connector |
Year Make Model | Trim | Engine |
---|---|---|
1999-2000 Cadillac Escalade | All Trims | All Engines |
1996-1998 Chevrolet Blazer | All Trims | All Engines |
1996-1999 Chevrolet C1500 | All Trims | All Engines |
1996-1999 Chevrolet C1500 Suburban | All Trims | All Engines |
1996-2000 Chevrolet C2500 | All Trims | All Engines |
1996-1999 Chevrolet C2500 Suburban | All Trims | All Engines |
1996-2000 Chevrolet C35 | All Trims | All Engines |
1996-2000 Chevrolet C3500 | All Trims | All Engines |
1996-1999 Chevrolet K1500 | All Trims | All Engines |
1996-1999 Chevrolet K1500 Suburban | All Trims | All Engines |
