Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58901 |

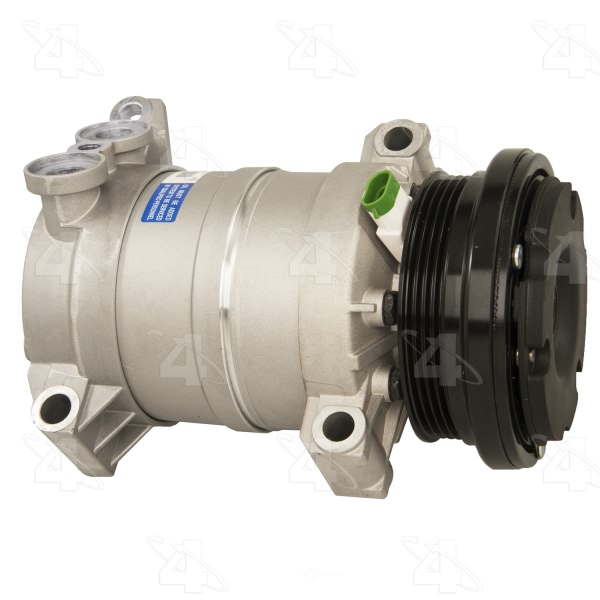

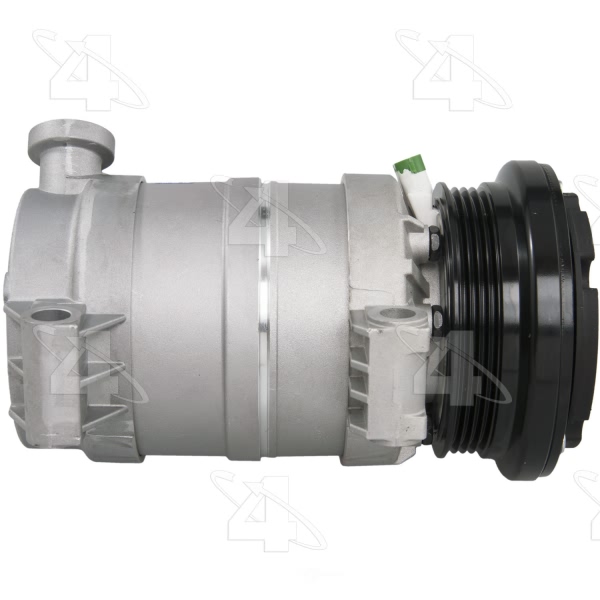

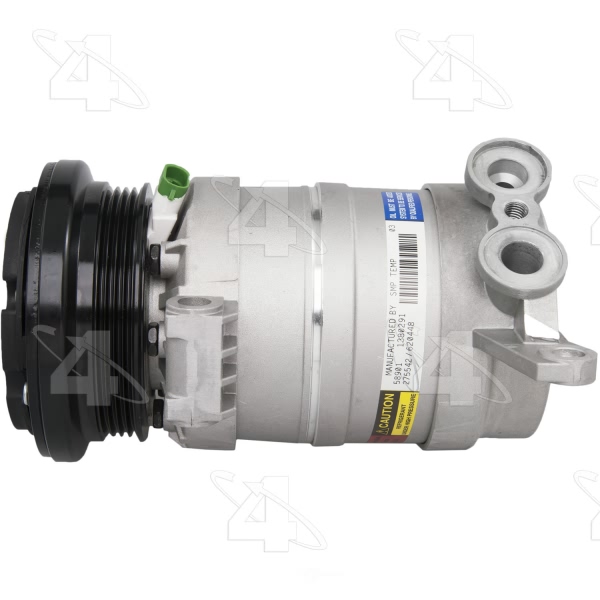

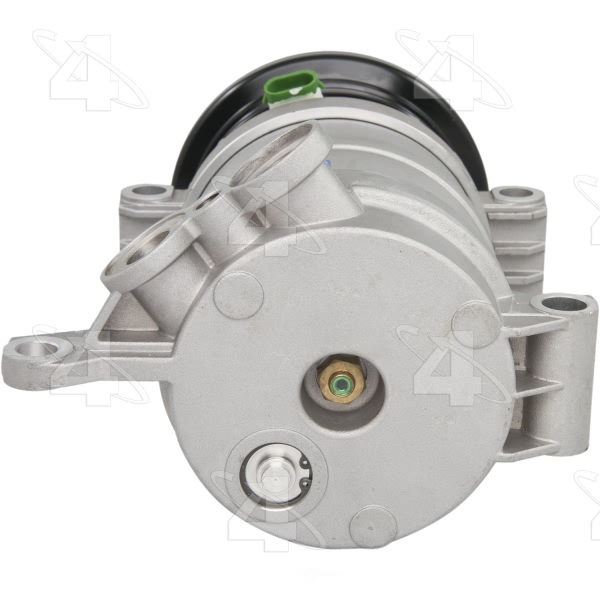

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |

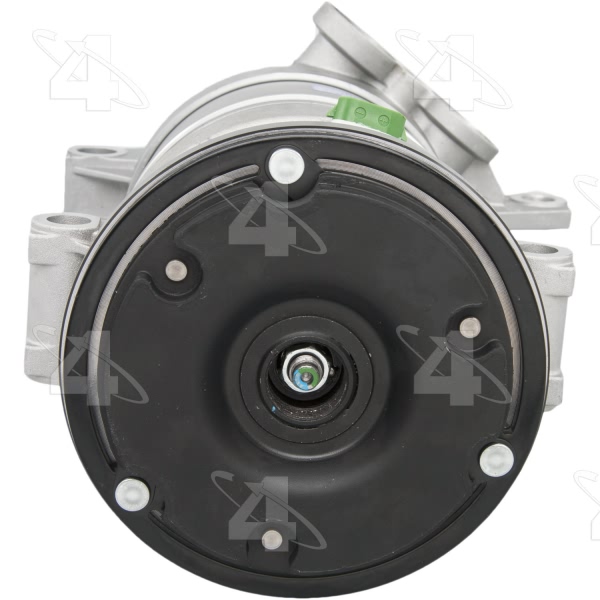

Clutch Maximum Diameter | 4.250 |
Coil Clock Position | 11 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | HU6 |

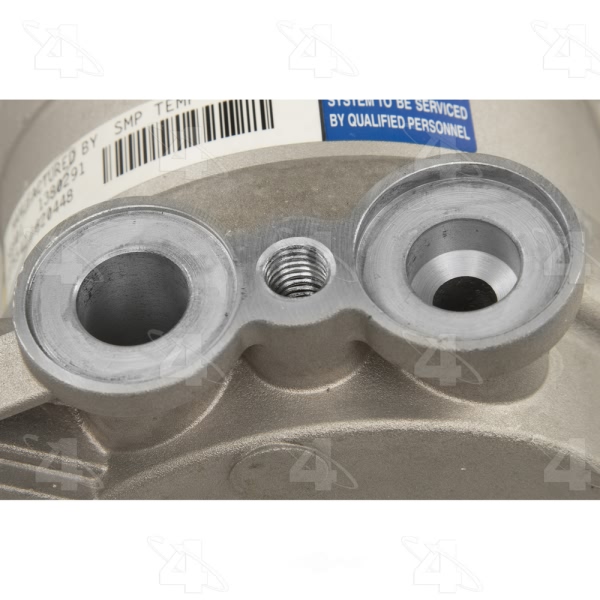

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 0.59375 |
Mount Distance MM | 15.240 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 107.950 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Switch Included | High Pressure |

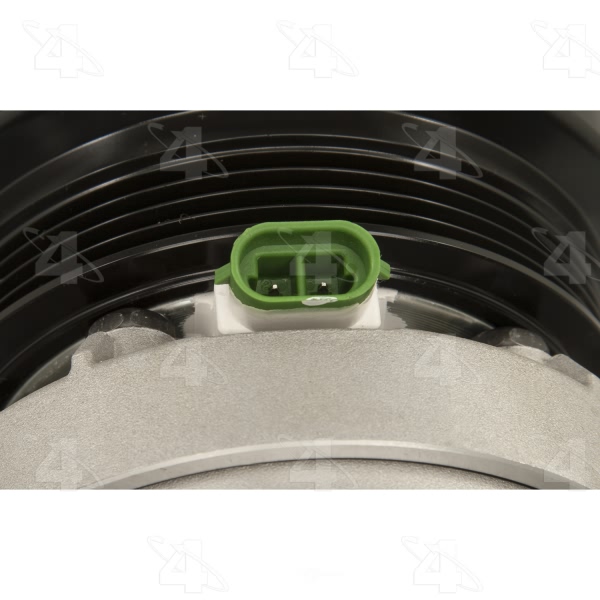

Terminal Type | 8mm Pin Connector |
UPC | 096361589018 |
Year Make Model | Trim | Engine |
---|---|---|
2002 Cadillac Escalade | All Trims | All Engines |
2002 Cadillac Escalade EXT | All Trims | All Engines |
2002 Chevrolet Avalanche 1500 | All Trims | All Engines |
2002 Chevrolet Avalanche 2500 | All Trims | All Engines |
1999-2002 Chevrolet Silverado 1500 | All Trims | 8 Cyl 4.8L |
1999-2002 Chevrolet Silverado 1500 | All Trims | 8 Cyl 5.3L |
2001-2002 Chevrolet Silverado 1500 HD | All Trims | All Engines |
1999-2000 Chevrolet Silverado 2500 | All Trims | All Engines |
2001-2002 Chevrolet Silverado 2500 | All Trims | 8 Cyl 5.3L |
2001-2002 Chevrolet Silverado 2500 | All Trims | 8 Cyl 5.7L |
